Title of Info Settings on the new nozzle changer under Version 707.xx of the
software
Document No.: 00197491-02 Created on: 28/10/2013
Referring to: Replaces the TI2013-10E06 and
00197491-01
Contact: SIPLACE Hotline Munich
Author: Schlagbauer, Johann Phone: +49 89 20800 48642
Department: ASM AS CRM CS PM & E Email: hotline.siplace@asmpt.com
Machine type / category: X-Series | SX-Series | DX-Series | X-Series S
Short description: Settings on the new nozzle changer depending on the software version
Service strategy: None
Setup strategy: None
1. Problem
Jumper settings must be made on the new nozzle changer. This affects the following nozzle changers
- Nozzle changer basis assembly short CP/all 03103649-xx
- Nozzle changer basis assembly long CP/all 03103514-xx
These are used in conjunction with the following sales numbers:
120604 Nozzle changer DX1/2, 12Seg.C+P head
120605 Nozzle changer 2 DX1/2, 12SegC+P head
519841 Nozzle changer CPP SX-Series
519842 Nozzle changer CPP SX-Series (item 3o.4)
519715 Nozzle changer CP20 SX1/2
519843 Nozzle changer CP20 SX1/2 (item 3o.4)
Nozzle changer basis assembly CPx short 03062463-xx will be replaced by
Nozzle changer basis assembly short CP/all 03103649-xx
119741 Nozzle changer CPP X-Series
119742 Nozzle changer 2 CPP X-Series
519851 Nozzle changer CP20 SX4 / DX4
Nozzle changer basis assembly CPx long 03070123-xx will be replaced by
Nozzle changer basis assembly long CP/all 03103514-xx
2. Cause
Further developments and improvements to the C&P20 head in the form of the C&P20 P head made it
necessary to rework the control board of the nozzle changer. Additional jumper settings need to be made to
ensure that the nozzle changer remains compatible with older software versions.
3. Long-term solution
The two new nozzle changer variants will replace the earlier basic nozzle changer modules (03062463-xx
and 03070123-xx) since they are backward compatible provided that the jumpers are set correctly.
ASM Assembly Systems GmbH & Co KG Technische Änderungen vorbehalten 18.09.2014
Rupert-Mayer-Strasse 44
81379 München, Deutschland 00197491-0201.dot Seite 5 - 6
On delivery, pins 2 and 3 are jumpered by default. This means that the nozzle changer is ready for use with
all CPx heads with a version of the station software ≥ 707.xx and the activation is via X FCU.
Attention:
1. If the new nozzle changer is used as a replacement on machines there the nozzle changer will
be activated via I/O module pins 1 and 2 must be jumpered instead.
ASM Assembly Systems GmbH & Co KG Technische Änderungen vorbehalten 18.09.2014
Rupert-Mayer-Strasse 44
81379 München, Deutschland 00197491-0201.dot Seite 6 - 6
2. If the new nozzle changer is used as a replacement on machines running a version of the
software ≤ 706.xx, pins 1 and 2 must be jumpered instead.
For reasons of accessibility, the jumpers must be set correctly before the nozzle changer is installed.

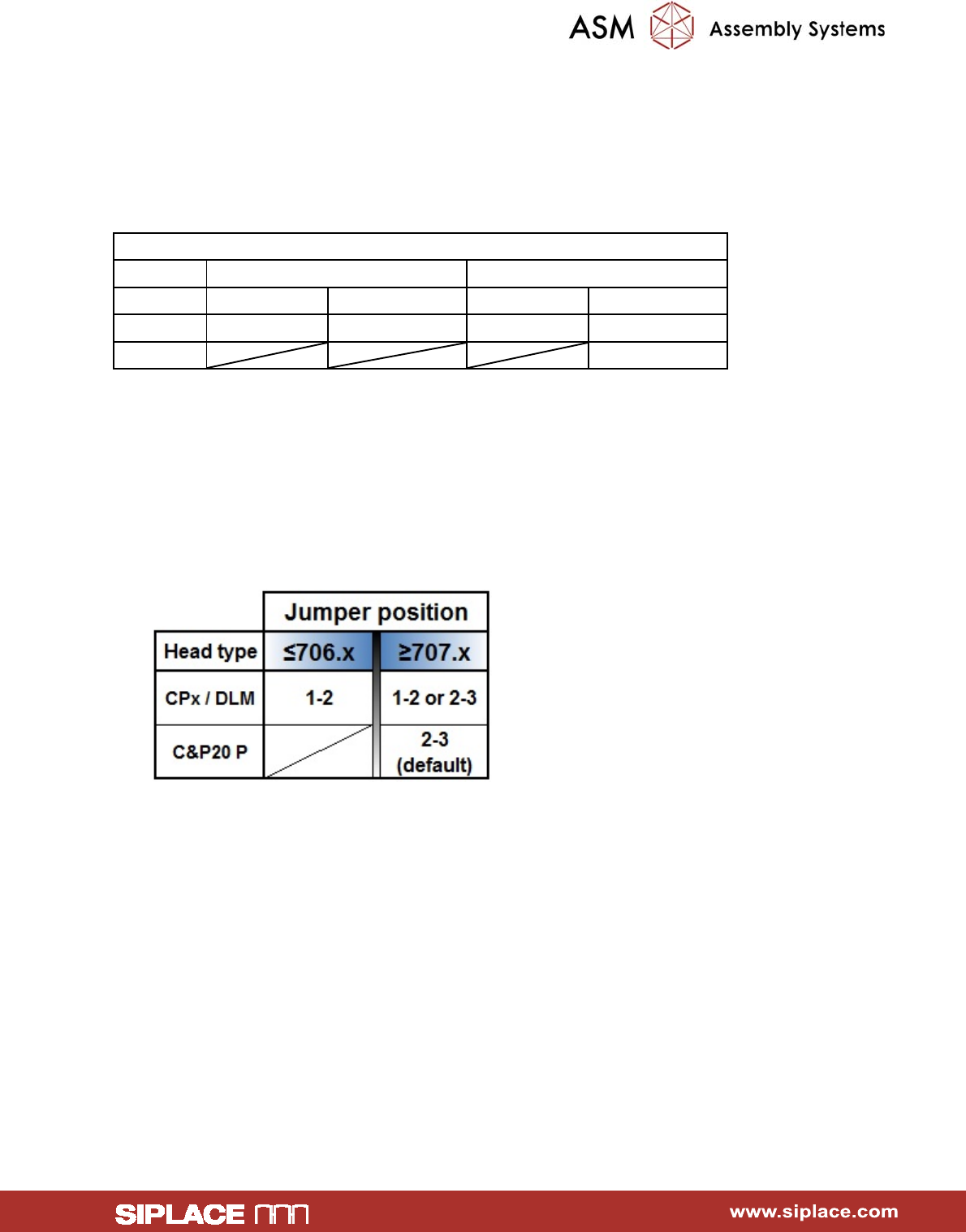

JumperPosition
HeadType <=706.x >=707.x
I/OController XFCUController I/OController XFCUController
CPX/DLM
1‐2 1‐2 1‐2 2‐3
C&P20P
2‐3(Default)
4. Additional information
4.1 Label on the nozzle changer
4.2 As of spring 2014, only the new nozzle changers will be installed.
The old basic nozzle changer modules (03062463-xx and 03070123-xx) will continue to work with
versions of the station software ≥ 707.xx , but not in conjunction with the C&P20 P head.
