A-101 A26-3 【 RX-7R 】シングルコンベ ア モータ部 【 RX-7R 】 Single Conveyor motor ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 401-93563 B RACKET(L)_MOTOR ﾓｰﾀｰﾌﾞﾗｹｯﾄ(L) 1 2 EZ4-718-766-02 SET-SCREW (M3X5 SUS)…
A-100
A26-3
【RX-7R】シングルコンベア モータ部
【RX-7R】Single Conveyor motor
１
１４
１４
８
２
３
５
５
７
１０
９
１１
１２
１３
１３
２０
１５
１９
２０
１５
１９
１６
２８
１７
１７
１７
１７
１８
２１
２２
２１
２２
２３
２６
２６
２３
２４
２５
２５
２５
２５
２７
２９
３０
３１
３２
３３
３３
４３
４０
４５
４２
４１
３７
３４
４６
４０
４４
３６
３５
３９
３８
A-101
A26-3
【RX-7R】シングルコンベア モータ部
【RX-7R】Single Conveyor motor
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 401-93563 BRACKET(L)_MOTOR ﾓｰﾀｰﾌﾞﾗｹｯﾄ(L) 1
2 EZ4-718-766-02 SET-SCREW (M3X5 SUS) HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X5 SUS) 2
3 EZ4-722-956-01 LABEL(SILVER) BLANK ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10) 4
4 EZ7-683-420-04 BOLT HEXAGON SOCKET 4X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10 2
5 EZ7-683-423-04 BOLT HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 12
6 EZ7-683-436-04 BOLT HEXAGON SOCKET 5X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X12 4
7 401-52119 PULLEY (F) TIMING ﾀｲﾐﾝｸﾞ ﾌﾟｰﾘ (F) 1
8 401-59489 MOTOR ASSY (CVFL) ﾓｰﾀｰ ASSY (CVFL) 1
9 SB-1080002-00 BEARING ころがり軸受 2
10 E2141-721-000 STOPPER COLLAR ｽﾄｯﾊﾟｶﾗｰ 2
11 SM-6030602-TN SCREW M3X6 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X6 4
12 WP-0330516-SC WASHER 3.3X8X0.5 ﾋﾗｻﾞｶﾞﾈ 3.3X8X0.5 4
13 WP-0320500-SF WASHER 3.2X7X0.5 ﾋﾗｻﾞｶﾞﾈ ｺｶﾞﾀﾏﾙ M3 8
14 EZ4-454-289-01 NUT MOTOR PLATE ﾓ-ﾀ ｲﾀ ﾅﾂﾄ 2
15 EZ4-453-830-01 IDLER (FIP1130) FLANGE PULLEY ﾌﾗﾝｼﾞﾂｷ ﾌﾟ-ﾘ- ｱｲﾄﾞﾗ- (FIP1130) 2
16 401-93562 BRACKET(R)_MOTOR ﾓｰﾀｰﾌﾞﾗｹｯﾄ(R) 1
17 EZ4-454-289-01 NUT MOTOR PLATE ﾓ-ﾀ ｲﾀ ﾅﾂﾄ 4
18 EZ4-454-293-02 NUT IDLER PLATE ｱｲﾄﾞﾗ- ｲﾀ ﾅﾂﾄ 1
19 EZ4-454-294-01 SHAFT IDLER ｱｲﾄﾞﾗ- ｼﾔﾌﾄ 2
20 EZ4-454-295-01 COLLAR (DIA.13 DIA.8.2-L10.5) ｶﾗ- (ﾌｱｲ 13-ﾌｱｲ 8.2-L10.5) 2
21 EZ4-454-367-01 COLLAR (DIA.7) IDLER ｱｲﾄﾞﾗ ｶﾗ- (ﾌｱｲ 7) 2
22 EZ4-454-516-01 BOLT (TSB4.5-20) ﾎﾞﾙﾄ (TSB4.5-20) 2
23 EZ4-718-766-02 SET-SCREW (M3X5 SUS) HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X5 SUS) 4
24 EZ4-722-956-01 LABEL(SILVER) BLANK ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10) 2
25 EZ7-683-423-04 BOLT HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 8
26 401-52119 PULLEY (F) TIMING ﾀｲﾐﾝｸﾞ ﾌﾟｰﾘ (F) 2
27 401-59490 MOTOR ASSY (CVFR) ﾓｰﾀｰ ASSY (CVFR) 1
28 401-59493 MOTOR ASSY (ADF) ﾓｰﾀｰ ASSY (ADF) 1
29 SB-1080002-00 BEARING ころがり軸受 2
30 E2141-721-000 STOPPER COLLAR ｽﾄｯﾊﾟｶﾗｰ 2
31 SM-6030602-TN SCREW M3X6 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X6 4
32 WP-0330516-SC WASHER 3.3X8X0.5 ﾋﾗｻﾞｶﾞﾈ 3.3X8X0.5 4
33 WP-0320500-SF WASHER 3.2X7X0.5 ﾋﾗｻﾞｶﾞﾈ ｺｶﾞﾀﾏﾙ M3 8
34 EZA-193-711-1A BOX ASSY DUST ﾀﾞｽﾄ ﾎﾞﾂｸｽ ASSY 1
35 EZ1-492-363-12 SENSOR ASSY ｾﾝｻ ASSY (ｺﾞﾐﾊﾞｺ (C) ｱﾘﾅｼ) (1)
36 EZ2-679-468-11 BOLT (CBSTS3-8) ｺﾞｸ ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSTS3-8) (1)
37 EZ4-461-360-02 BRUSH (A) NOZZLE ﾉｽﾞﾙ ﾌﾞﾗｼ (A) (2)
38 EZ4-461-361-03 BOX DUST ﾀﾞｽﾄ ﾎﾞﾂｸｽ (1)
39 EZ7-682-247-09 SCREW +K 3X6 SCREW +K 3X6 (4)
40 EZ4-462-216-01 MAGNET CATCH PUSH IN ﾌﾟﾂｼﾕ ｲﾝ ﾏｸﾞﾈﾂﾄ ｷﾔﾂﾁ (2)
41 EZ4-472-141-02 PLATE BRUSH NUT ﾌﾞﾗｼ ﾅﾂﾄ ﾌﾟﾚ-ﾄ (2)
42 402-01115 BRACKET(2)_DUST BOX ｺﾞﾐﾊﾞｺﾌﾞﾗｹｯﾄ(2) 1
43 EZ4-452-347-01 LABEL (PLAIN) SERIAL NO.(1446) ｼﾘｱﾙ NO. ﾗﾍﾞﾙ (ﾑｼﾞ) (1446) 1
44 402-01122 BASE SENSOR ｾﾝｻｰﾍﾞｰｽ 1
45 SM-6040602-TN SCREW ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ 4
46 EZ7-683-401-04 BOLT HEXAGON SOCKET 3X4 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X4 2
A-102
A27-1

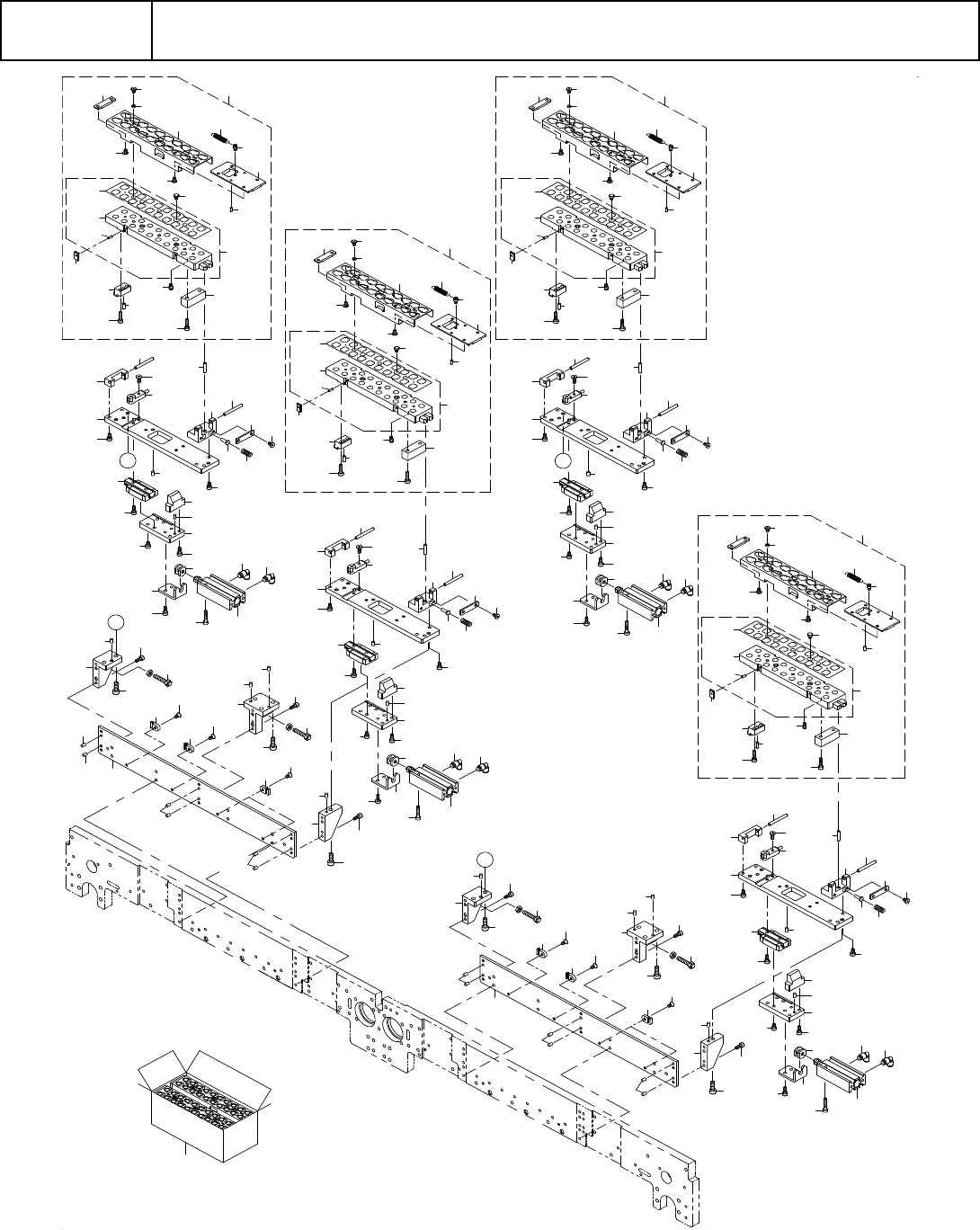

【RX-7】ノズルチェンジャー
【RX-7】Nozzle changer
2
3
51
51
51
11
16
14
15
13
19
19
19
17
23
23
23
26
26
26
1
22
22
53
53
21
12
12
20
18
18
4
19
4
20
12
12
21
19
19
13
14
7
16
11
7
8
24
5
24
24
24
10
10
10
30
31
31
29
10
8
5
54
55
25
6
55
54
6
25
9
9
A
A
45
46
39
40
37
39
38
44
34
43
36
43
41
33
33
49
42
50
32
47
22
22
47
32
48
41
43
43
44
35
38
37
46
45
26
26
B
18
18
22
22
1
26
23
23
23
51
51
51
2
22
43
11
24
19
45
46
37
38
44
43
41
32
47
9
25
6
54
55
5
8
10
27
31
10
24
16
7
14
13
19
19
21
12
12
20
4
37
55
11
12
47
41
43
43
44
46
45
B
9
6
25
54
31
28
10
10
24
5
24
8
7
4
20
12
21
19
19
19
13
14
16
32
38
52
40
40
40
36
36
36
49
49
49
34
34
34
39
39
39
39
39
39
39
39
39
39
48
48
48
35
35
35
33
33
33
33
50
33
50
33
50
42
42
42
22
15
22
15
22
15
22
22
22
22
22
22
22
22
22
22
3
22
22
17
22
53
53
53
53
