A-147 A36 【 RX-7 】 P8 本体 ASSY-1 【 RX-7 】 P8 Main assy - 1 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 401-28046 SENSOR_BRACKET_B ｾﾝｻﾌﾞﾗｹｯﾄ B 4 2 401-58787 SENSOR ASSY A (FEEDER FL OA T JAM) SEN…

100%1 / 296
A-146
A36

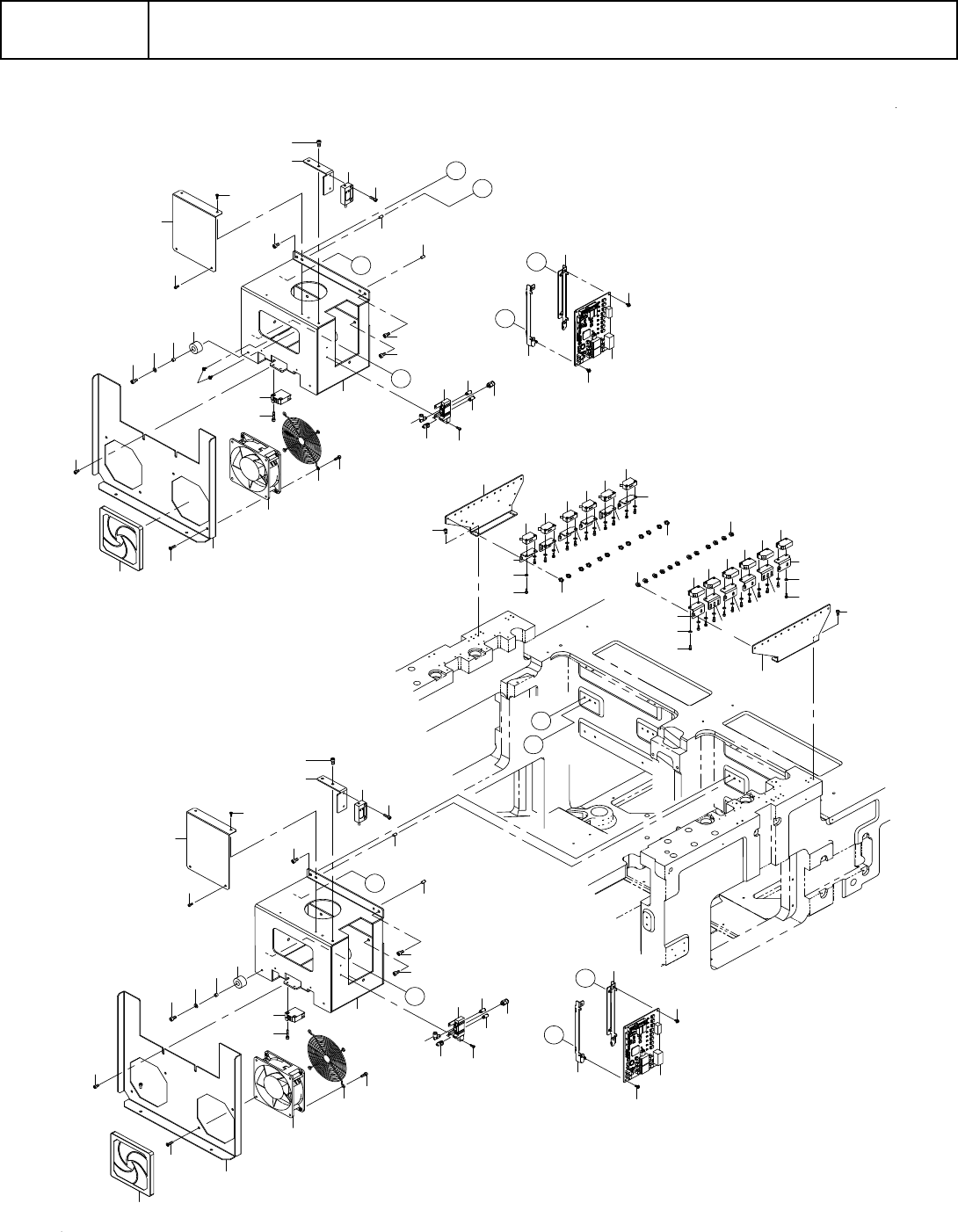

【RX-7】P8 本体 ASSY-1
【RX-7】P8 Main assy - 1
12
28
39
20
37
43
21
28
39
37
30
43
30
14
16
17
34
38
32
26
29
25
25
41
41
27
40
15
15
A
B
18
23
24
A
B
29
29
42
31
22
34
35
34
33
33
32
42
34
36
34
22
31
42
34
29
29
B
A
40
27
41
41
25
25
29
26
38
34
17
16
14
12
2
3
2
2
3
2
2
3
2
2
3
2
13
11
13
11
10
5
10
4
10
13
11
10
24
23
18
B
A
15
15
34
34
42
34
C
D
C
D
15
9
1
7
9
1
7
8
6
1
6
8
1
19
19
A-147
A36
【RX-7】P8 本体 ASSY-1
【RX-7】P8 Main assy - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 401-28046
SENSOR_BRACKET_B
ｾﾝｻﾌﾞﾗｹｯﾄ B 4
2 401-58787
SENSOR ASSY A (FEEDER FLOAT JAM)
SENSOR ASSY A (FEEDER FLOAT JAM) 4
3 401-58788
SENSOR ASSY B (FEEDER FLOAT JAM)
SENSOR ASSY B (FEEDER FLOAT JAM) 2
4 401-58829
FEEDER_SENSOR_STAND_L
ﾌｨｰﾀﾞｾﾝｻｽﾀﾝﾄﾞ L 1
5 401-58830
FEEDER_SENSOR_STAND_R
ﾌｨｰﾀﾞｾﾝｻｽﾀﾝﾄﾞ R 1
6 401-60564
SENSOR_BR_LI
ｾﾝｻﾌﾞﾗｹｯﾄ LI 2
7 401-60565
SENSOR_BR_RI
ｾﾝｻﾌﾞﾗｹｯﾄ RI 2
8 401-60566
SENSOR_BR_LO
ｾﾝｻﾌﾞﾗｹｯﾄ LO 2
9 401-60567
SENSOR_BR_RO
ｾﾝｻﾌﾞﾗｹｯﾄ RO 2
10 SL-6040692-TN
SCREW M4 L=6
座金付き六角穴ﾎﾞﾙﾄ M4 L=6 24
11 SM-6030802-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ 24
12 SM-6040802-TN
SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=8 8
13 WP-0320501-SC
WASHER M3
ﾋﾗｻﾞｶﾞﾈ M3 24
14 EZ4-113-099-01
CUSHION (1) URETHANE
ｳﾚﾀﾝ ｸﾂｼﾖﾝ (1) 4
装置構成により数量異なる
15 EZ2-580-593-01
SCREW +PSW M3X8
ﾈｼﾞ +PSW M3X8 10
16 EZ4-453-566-01
COLLAR
ｶﾗ- 4
17 EZ7-688-005-11
W 5 MIDDLE
W 5 MIDDLE 4
18 401-55050
FC-LED CONT PCB ASM
FC-LED CONT 基板組 2
装置構成により数量異なる
19 401-56349
STOPPER SPACER (LARGE)
ｽﾄｯﾊﾟｰｽﾍﾟｰｻ (LARGE) 2
20 401-56351
INNER COVER FL (P8)
ｲﾝﾅｰｶﾊﾞｰ FL (P8) 1
21 401-56352
INNER COVER FR (P8)
ｲﾝﾅｰｶﾊﾞｰ FR (P8) 1
22 401-56353
SENSOR BRACKET (P8)
ｾﾝｻｰﾌﾞﾗｹｯﾄ (P8) 2
23 401-56354
LED CTRL PWB BRACKET (L)
LED ｺﾝﾄﾛｰﾙｷﾊﾞﾝ ﾌﾞﾗｹｯﾄ (L) 2
24 401-56355
LED CTRL PWB BRACKET (R)
LED ｺﾝﾄﾛｰﾙｷﾊﾞﾝ ﾌﾞﾗｹｯﾄ (R) 2
25 401-56358
SILENCER (AN05-M5)
ｻｲﾚﾝｻ (AN05-M5) 4
26 401-56614
SOLENOID VALVE (SY3120) ASSY
ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ (SY3120) ASSY 2
27 401-60786
STOPPER BOX COVER (P8)
ｽﾄｯﾊﾟｰ BOX ｶﾊﾞｰ (P8) 2
28 EZ7-682-265-04
SCREW +K 4X16
ﾈｼﾞ +K 4X16 16
29 EZ7-683-404-04
BOLT HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8 12
30 EZ7-683-421-04
BOLT HEXAGON SOCKET 4X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12) 16
31 EZ7-683-422-04
BOLT HEXAGON SOCKET 4X14
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X14 4
32 EZ7-683-425-04
BOLT HEXAGON SOCKET 4X20
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X20 4
33 EZ7-683-419-04
BOLT HEXAGON SOCKET 4X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 8
34 EZ7-683-435-04
BOLT HEXAGON SOCKET 5X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X10 16
35 EZ1-492-199-22
SAFETY SW ASSY
SAFETY SW ASSY (ﾀﾞｲｼﾔ) R 1
36 EZ1-492-199-32
SAFETY SW ASSY
SAFETY SW ASSY (ﾀﾞｲｼﾔ) L 1
37 EZ1-763-987-11
FAN (4715MS-20T-B5A-B01)
ﾌｱﾝ (4715MS-20T-B5A-B01) 4
38 EZ1-771-841-11
SWITCH POWER (D2D-2000)
ﾃﾞﾝｹﾞﾝ ｽｲﾂﾁ (D2D-2000) 2
39 EZ2-672-385-01
FILTER (FL12) FAN
ﾌｱﾝ ﾖｳ ﾌｲﾙﾀ- (FL12) 4
40 EZ4-447-053-11
UNION (KQ2H06-M5N) HALF
ﾊ-ﾌ ﾕﾆｵﾝ (KQ2H06-M5N) 2
41 EZ4-447-110-01
UNION (KQ2L04-M5N) ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L04-M5N) 4
42 EZ4-705-597-41
PIN (DIA. 5) PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (ﾌｱｲ 5) 4
43 EZ4-720-311-01
GUARD FAN (PG-47-02)
ﾌｱﾝ ｶﾞ-ﾄﾞ (PG-47-02) 4
A-148
A37

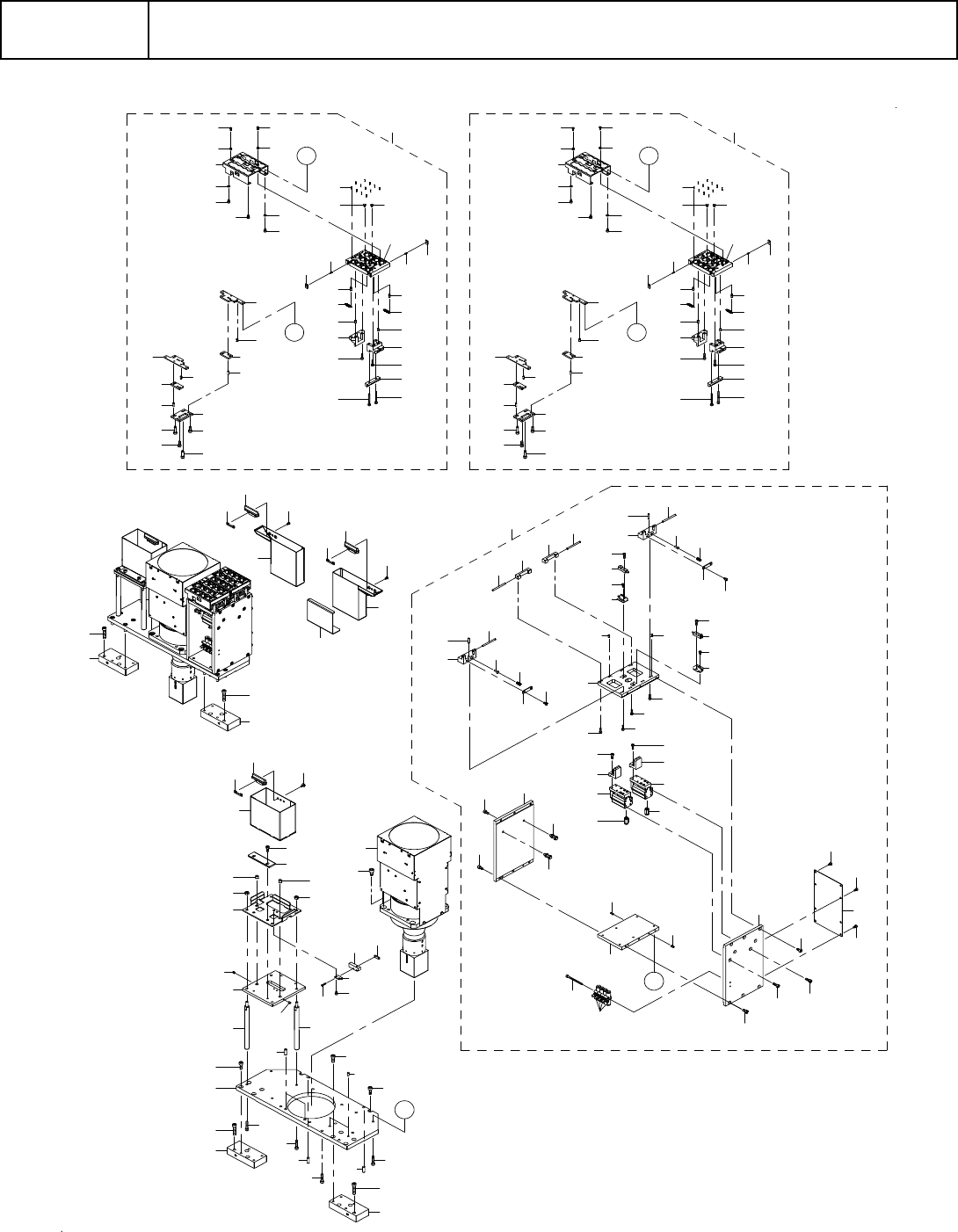

【RX-7】P8 本体 ASSY-2
【RX-7】P8 Main assy - 2
12
7
12
7
21
23
21
23
24
24
9
9
11
25
18
18
25
6
6
3
20
14
22
20
14
22
11
15
19
13
19
13
8
17
17
5
4
22
22
16
16
10
A
A
18
2
42
42
41
32
40
40
40
34
42
42
33
37
37
49
38
44
40
43
50
38
38
29
29
39
39
45
40
35
39
45
40
35
28
27
36
48
39
39
27
36
48
46
30
46
46
46
39
39
49
38
44
30
50
43
39
40
41
75
74
78
78
73
77
77
77
53
53
76
76
55
54
71
69
71
56
62
64
64
69
81
82
68
67
72
52
61
63
66
60
65
59
58
57
70
76
76
A
A
31
2
18
A
A
10
16
16
22
22
4
5
17
17
8
13
19
13
19
15
11
22
14
20
22
14
20
3
6
6
25
18
18
25
11
9
9
24
24
23
21
23
21
7
12
7
12
11
78
78
80
80
79
80
51
47
26
67
68
70
67
68
75
74
