InJet
®
3179 CRD
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1170 x 2160 x 2015 mm 46.1 x 85 x 79.3 in
Weight 900 kg 1984 lbs
Ø energy consumption per cycle 2,5 kWh 2.5 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01– 0.08 gal
Compressed air consumption per cycle 1500 l / cycle 396.26 gal / cycle
Max. dimensions of the cleaned parts 100 x 1700 x 900 mm 3.94 x 66.93 x 35.43 in
Exchangeable mechanical  lter
of cleaning and rinsing  uid
5 – 200 μm 5 – 200 μm
Operating pressures
cleaning: 1,5 Bar – 3,5 Bar,
rinsing: 0,3 Bar – 2,0 Bar
cleaning: 21.76 PSI – 50.76 PSI,
rinsing: 4.35 PSI – 29 PSI
Cleaning  uid  ow rate 400 l / min 105.67 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 125 l 33 gal
TECHNICAL PARAMETERS

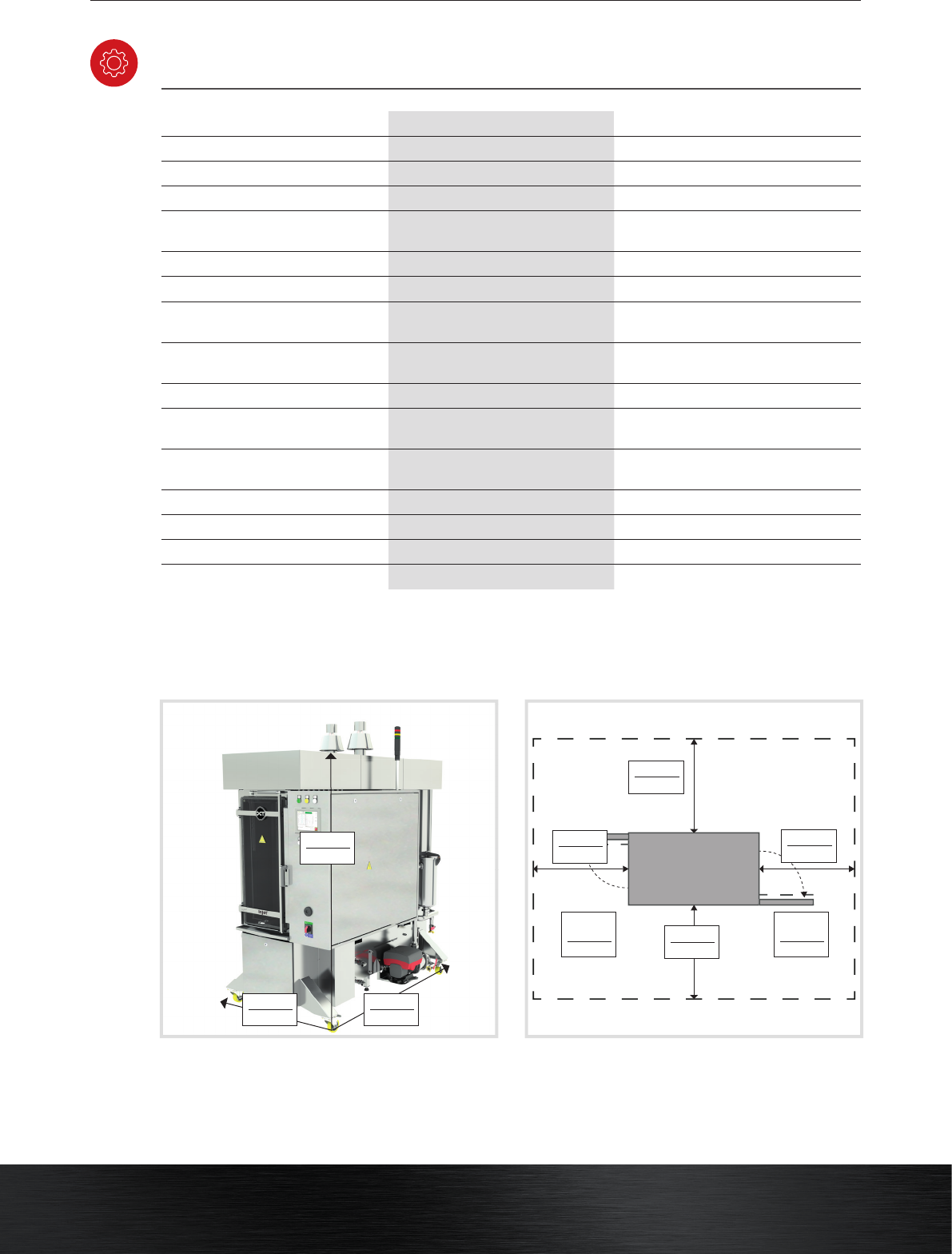

DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
2160 mm
85 in
2015 mm
79.3 in
1170 mm
46.1 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
open door
450 mm
17.7 in
metric units imperial units
InJet
®
3179 CRD
TECHNICAL DATA SHEET
5
www.dct.cleaning
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 12 kW 12 kW
Compressed air connection Pipe Ø 6 mm, Ø 10 mm Pipe ID 0.24 in, ID 0.39 in
Recommended working pressure 4,5- 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter Ø 100 mm ID 3.94 in
Exhaust pipe capacity 380 m3/h 13400 ft3/h
Minimum liquid for  rst run 2 x 95 l 2 x 25.1 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1

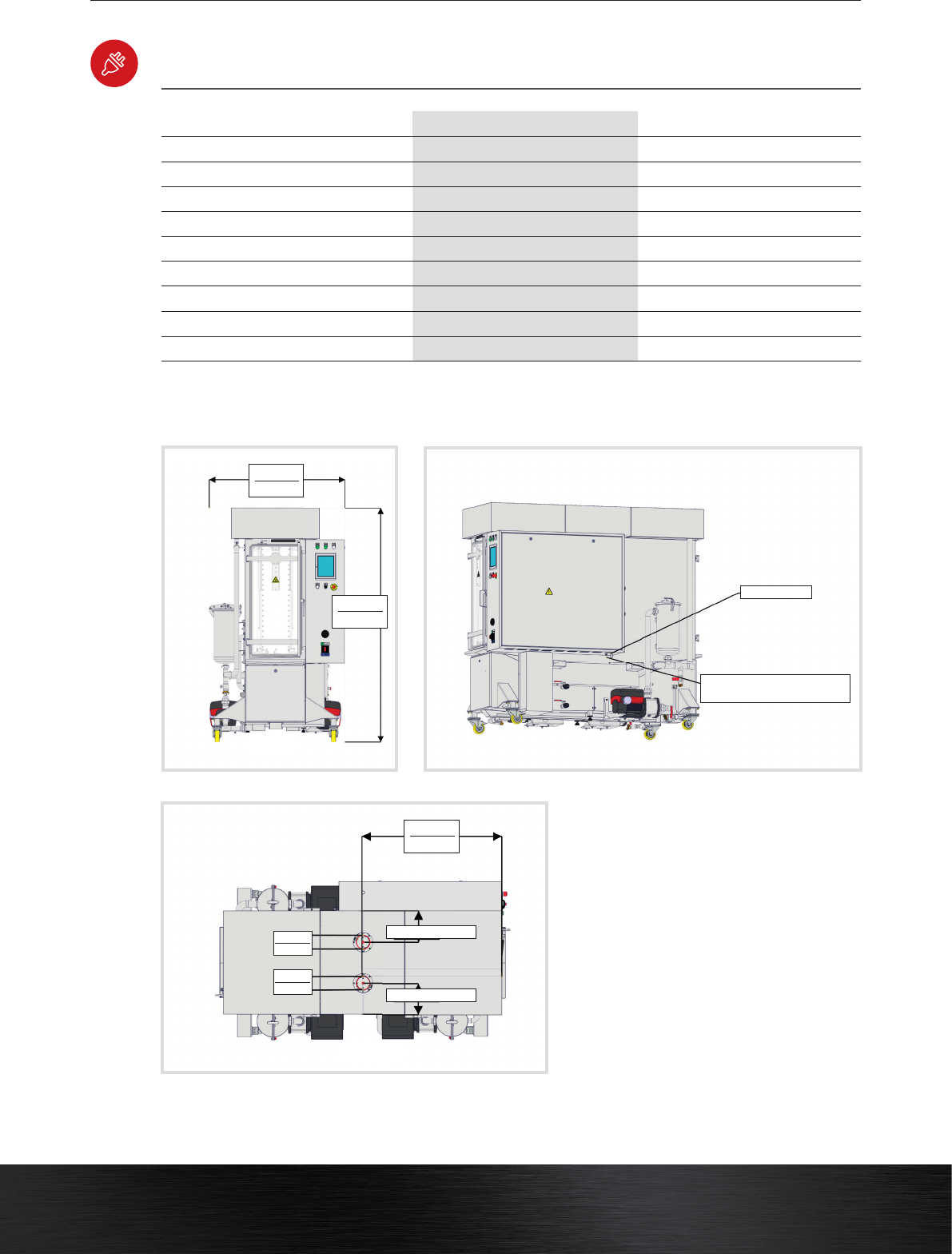

INSTALLATION REQUIREMENTS
RIGHT
VIEW
Input air pressure Ø 6 mm, Ø 10 mm
ID 0.24 in, ID 0.39 in
input el. power
metric units imperial units
1170 mm
46.1 in
2015 mm
79.3 in
FRONT
VIEW
TOP
VIEW
1030 mm
40.6 in
227,81 mm
I
40.6 in
227,81 mm
I
40.6 in
Ø 100 mm
ID 3.94 in
Ø 100 mm
ID 3.94 in
InJet
®
3179 CRD
TECHNICAL DATA SHEET
6
www.dct.cleaning
1 process chamber – fully automatted solution
100% closed loop uid system
2 arm rotation – uid powered – cleaning
Cleaning and rinsing uid heating
Mechanical ltration
2 hot air blowers – drying
Chimney ap – electronically controlled
Pneumatic door lock
Emergency stop button
Manipulation wheels – lockable
PLC controller + 8,4“ touchscreen display
Spare parts (base kit)
STANDARD HARDWARE EQUIPMENT
Electronic monitoring of uid pressure
Electronic process cycle counter
3 levels of logging – operator, maintenance, engineer
Spraying uid pressure – continuous measurement
Standard software language mutation – CZ, ENG
Liquid and lter replacement notication – cycle counting
Possibility of 5 programs – setting option
Smart warning – low or high pressure level
Smart warning – low uid level
STANDARD SOFTWARE EQUIPMENT
