Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0306-001 145 JE-3 201 630 086 7961 BRACKET 1 801JE-1 10-201 202 630 066 1385 BRACKET 1 801JE-1 10-202 203 630 066 1392 BRACKET 1 801JE-1 10-203 204 630 079 …
MODEL TCM-X210
0306-001
144
XY

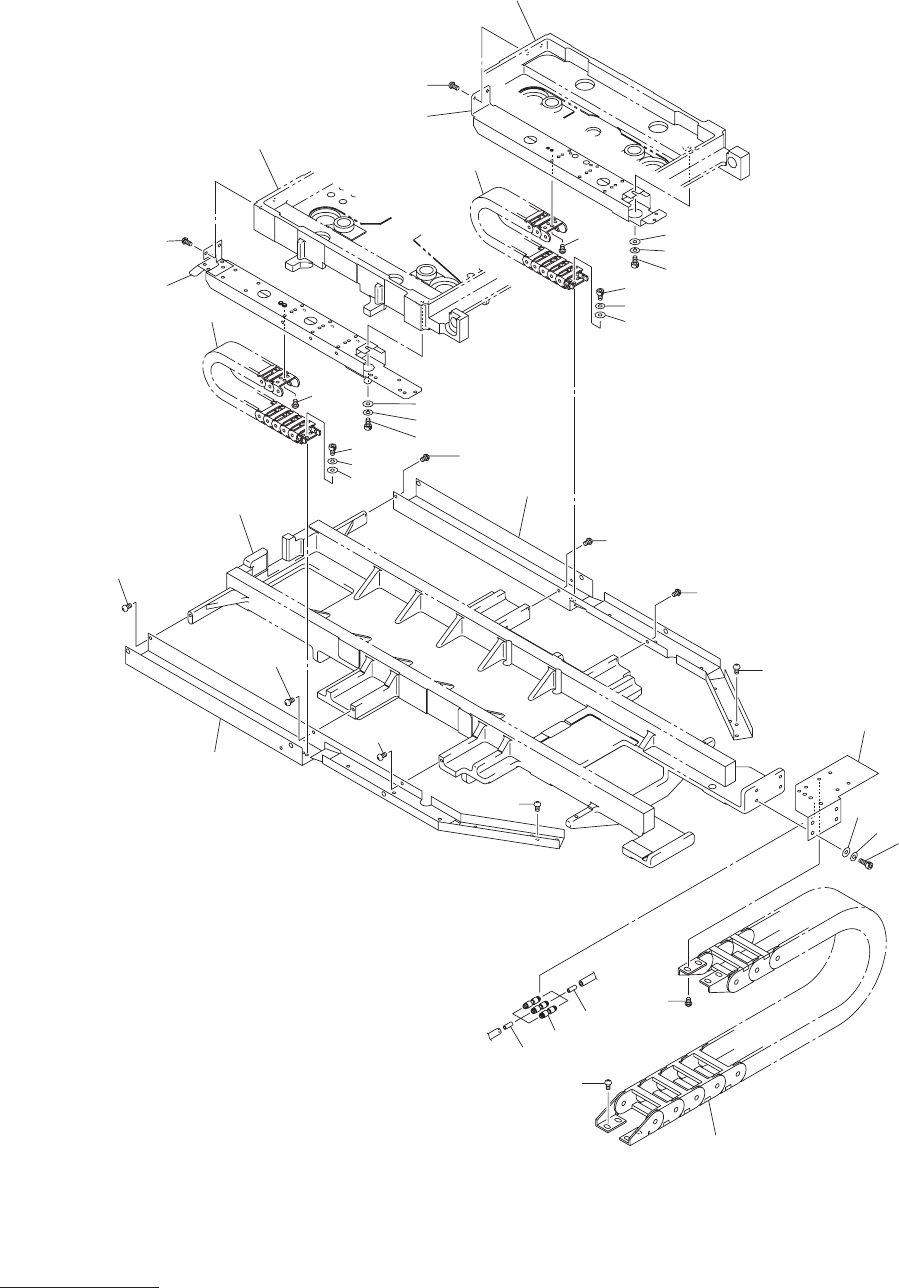

テーブル配管、配線
XY TABLE PIPING,WIRING
Fig. JE-3
配管、配線支持部
Piping,Wiring Supporter
233
205
233
204
209
213
221
218
211
233
233
202
233
233
233
233
203
233
233
201
222
219
212
206
216
227
208
227
216
224
225
226
209
21
3
221
218
211
224
225
226
See Fig.JC-1
Key No.4
See Fig.JB-4
Key No.301
See Fig.JC-1
Key No.4
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
145
JE-3
201 630 086 7961 BRACKET 1 801JE-110-201
202 630 066 1385 BRACKET 1 801JE-110-202
203 630 066 1392 BRACKET 1 801JE-110-203
204 630 079 0375 PLATE 1 801JE-110-204
205 630 118 9376 PLATE 1 801JE-110-205
206 630 112 7217 MECH PARTS(GUIDE CABLE) 1 801JE-110-206
208 630 076 8916 PIPE FITTINGS 3 801JE-110-208
209 630 112 7231 MECH PARTS(GUIDE CABLE) 2 801JE-110-209
211 630 000 7626 BOLT,HEX-SCT 2 801JE-110-211
212 630 000 7763 BOLT,HEX-SCT 4 801JE-110-212
213 411 050 5004 SCR TRS 3X6 4 801JE-110-213
216 411 140 8007 SCR TRS 5X6 8 801JE-110-216
218 411 141 2905 WASHER SPR 4 2 801JE-110-218
219 411 141 6705 WASHER SPR 5 4 801JE-110-219
221 411 141 4008 WASHER V 4X9X0.8 2 801JE-110-221
222 411 141 4107 WASHER V 5X10X1 4 801JE-110-222
224 630 000 7503 BOLT,HEX-SCT 4 801JE-110-224
225 411 141 2806 WASHER SPR 3 4 801JE-110-225
226 411 141 3902 WASHER V 3X7X0.5 4 801JE-110-226
227 630 079 8432 AIR LINE EQPT 6 801JE-110-227
233 630 076 8824 BOLT,HEX-SCT(BUTTON HEAD) 12 801JE-110-233
MODEL TCM-X210
0506-002
146
XY
テーブル配管、配線
XY TABLE PIPING,WIRING
Fig. JE-4 Z
クランプ配管 - ２
Z Clamp Piping-2
See Fig.L-1
Key No.9
308
309
310
306
311
307
309
312
304
302
303
305
