P-0185-003.pdf - 第37页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0306-001 35 1 630 089 0419 PLA TE 1 801D--1 10-001 2 630 003 6787 MECH P AR TS(RUBBER DAMPER) 4 801D--1 10-002 3 41 1 141 4305 W ASHER V 6X12.5X1.6 8 801D--…
MODEL TCM-X210
0306-001
34
1
18
15
35
17
16
9-20
9
A
B
9-10
9-11
21
21
21
20
22
25
2
8
7
6
5
4
3
11
12
13
14
10
34
See Fig.L-1
Key No.9
23
24
29
B
A
See Fig.B-1
Key No.45

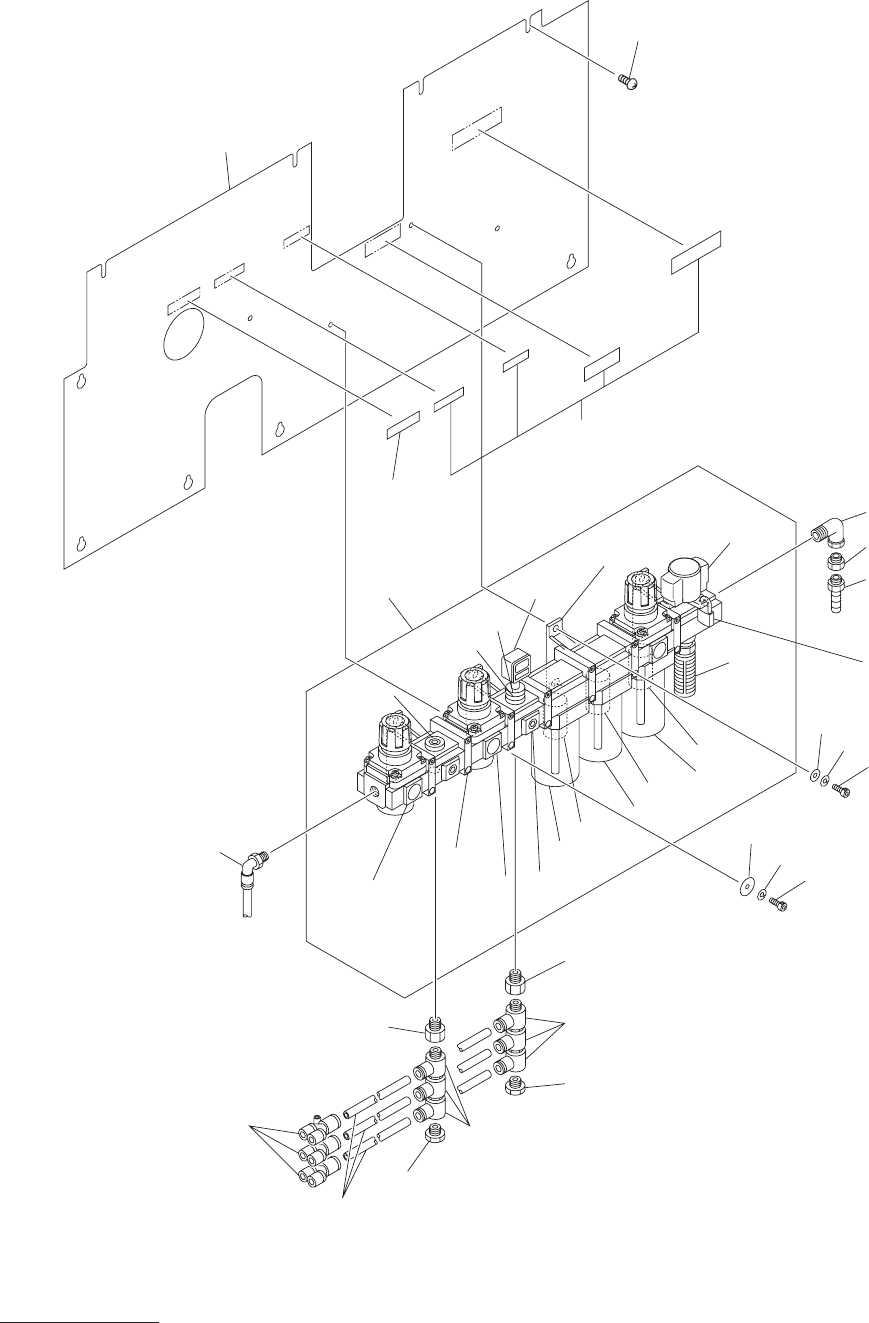

空圧制御部
PNEUMATIC SECTION
Fig. D-1
真空ポンプ
Vacuum Pump
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
35
1 630 089 0419 PLATE 1 801D--110-001
2 630 003 6787 MECH PARTS(RUBBER DAMPER) 4 801D--110-002
3 411 141 4305 WASHER V 6X12.5X1.6 8 801D--110-003
4 411 141 3001 WASHER SPR 6 8 801D--110-004
5 630 000 7862 BOLT,HEX-SCT 8 801D--110-005
6 630 001 0220 WASHER 4 801D--110-006
7 411 141 6705 WASHER SPR 5 4 801D--110-007
8 630 000 7770 BOLT,HEX-SCT 4 801D--110-008
9 630 055 2195 VACUUM PUMP 1 M1,#3-040437-1 801D--110-009
9 -10 630 031 8593 AIR LINE EQPT(FILTER) 1 #3-037940
9 -11 630 012 1230 AIR LINE EQPT(FLT ELEM) 1 #XB401379743 4-410A302-4
9 -20 630 055 2171 VACUUM PARTS 1 #4-400A302-1
10 630 055 3062 PIPE FITTINGS 1 801D--110-010
11 630 086 8821 BRACKET 1 801D--110-011
12 411 141 4107 WASHER V 5X10X1 2 801D--110-012
13 411 141 6705 WASHER SPR 5 2 801D--110-013
14 630 000 7749 BOLT,HEX-SCT 2 801D--110-014
15 630 003 7074 PIPE FITTINGS 1 801D--110-015
16 411 141 4503 WASHER V 8X17X1.6 4 801D--110-016
17 411 141 3100 WASHER SPR 8 4 801D--110-017
18 411 141 0901 NUT HEX 8 4 801D--110-018
20 630 003 7845 PIPE FITTINGS 1 801D--110-020
21 630 003 8187 PIPE FITTINGS 5 801D--110-021
22 630 003 8088 PIPE FITTINGS 1 801D--110-022
23 630 003 8279 PIPE FITTINGS 1 801D--110-023
24 630 009 3520 PIPE FITTINGS 1 801D--110-024
25 630 003 7067 PIPE FITTINGS 1 801D--110-025
29 630 004 1026 PIPE FITTINGS 1 801D--110-029
34 630 116 9958 TUBE 1 801D--110-034
35 630 119 6848 TUBE 1 801D--110-035
D-1
MODEL TCM-X210
0506-002
36
103
103-0
5
103-11
103-2
1
103-2
0
103-31
103-30
103-4
1
103-40
103-0
7
103-10
103-0
9
103-1
4
103-0
6
103-0
8
103-13
103-1
2
103-02
111
11
2
113
102
10
4
105
11
4
106
123
11
2
113
10
7
10
7
10
8
108
117
10
9
10
9
12
4
115
11
6
121
12
2
空圧制御部
PNEUMATIC SECTION
Fig. D-2
エアポート配管
Air Port Piping
