FUJI IP-QP2 Motor Feeder W16 Parts List KDE-1600-004457.pdf - 第8页

4 / 4 機種( M / C  TY P E) ユニット( U N I T) 発行日   I P ・Q P 2  モータフィーダ( M O TO R  FEE D E R )  0 0 . 1 0 . 2 7 形式( TY P E) 図番( D W G  N o . ) S/ N   W 1 6  エンボス( E M B O S S)    ( A K D C A 7 1 * * )   K D E‑ 1…

100%1 / 9
3/4
機種( M/C TYPE) ユニット( UNI T) 発行日
I P・QP2 モータフィーダ( MOTOR FEEDER) 00. 10. 27
形式( TYPE) 図番( DWG No. ) S/N
W16 エンボス( EMBOSS) ( AKDCA71**) KDE‑ 1600‑ 004457〜
番号
品名 図番 個数
No. Dwg. No. QTY
備考
Remarks
Descri pt i on
44 BKT BKT KDCC1501 1
45 ﾋﾟﾝ PI N KCBC0681 1
46 ﾒｲﾊﾞﾝ NAMEPLATE KDCC0172 1
47 ﾛｰﾗ ROLLER KDCC0541 1
48 BKT ｾﾝｻ BKT, SENSOR KDCC0591 1
49 ﾋﾟﾝ ﾍﾝｼﾝ PI N, ECCENTRI C KDCC0601 1
50 ﾊｰﾈｽ HARNESS KHEH1240 1
51 ﾌﾟﾚｰﾄ PLATE KHEM1130 1
52 ﾊｰﾈｽ HARNESS KHEH1290 1
53 ｷﾊﾞﾝ ﾌﾟﾘﾝﾄ BOARD, PRI NTED CI RCUI T FH1091A 1
54 ｷﾊﾞﾝ ﾌﾟﾘﾝﾄ BOARD, PRI NTED CI RCUI T FH1108A 1
55 ｼｰﾙ SEAL KHER1120 1
57 ｷﾊﾞﾝ ﾌﾟﾘﾝﾄ BOARD, PRI NTED CI RCUI T FH1047E 1
58 ﾊｰﾈｽ HARNESS KHEH1260 1
59 ｽﾌﾟﾘﾝｸﾞ SPRI NG BFCA0101 1
61 ﾋﾟﾝ PI N BFCC0131 1
62 ﾋﾟﾝ PI N MCC0162 2
63 ｸﾘｯﾊﾟ CLI PPER K3015H 1 SL‑ 3N ( 品川商工)
64 ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ BELT, TI MI NG H4509N 1 344‑ 2GT‑ 9 ( ﾕﾆｯﾀ)
65 ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ BELT, TI MI NG H4509L 1 340‑ 2GT‑ 2 ( ﾕﾆｯﾀ)
66 ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ PI N, SPRI NG H2050T 1 3x16 AW
67 ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WASHER, SPRI NG W1020H 2 2. 5M/ M
68 ｺﾈｼﾞ +ｱﾅﾅﾍﾞ SCREW, C/R PAN K5175S 2 M2x5
69 ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WASHER, SPRI NG W1020A 2 2M/ M
70 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5359E 27 M4x8
71 ｺﾈｼﾞ 6ｶｸｱﾅﾎﾞﾀﾝ SCREW, HEX SOCKET BUTTON K5255T 3 M3x6
72 ﾎﾞﾙﾄ 6ｶｸｱﾅ BOLT, HEX SOCKET H5289A 2 M4x12
73 ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WASHER, SPRI NG W1022A 6 4M/ M
74 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5357M 8 M3x6
75 ｺﾈｼﾞ 6ｶｸｱﾅﾎﾞﾀﾝ SCREW, HEX SOCKET BUTTON K5256A 4 M3x8
76 ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WASHER, SPRI NG W1021A 15 3M/M
77 ｺﾈｼﾞ SCREW K5168L 2 M2. 5x12 ﾊﾞｲﾝﾄﾞ ｺﾈｼﾞ
78 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1042A 2 4W‑ 3
79 ﾅｯﾄ 6ｶｸ NUT, HEX N1076A 11 M3 P=0. 5
80 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5359A 2 M4x6
81 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5357T 5 M3x8
http://www.fuji.co.jp/
Copyright © 2002 by Fuji Machine Manufacturing Co., Ltd. All Rights Reserved.
4/4
機種( M/C TYPE) ユニット( UNI T) 発行日
I P・QP2 モータフィーダ( MOTOR FEEDER) 00. 10. 27
形式( TYPE) 図番( DWG No. ) S/N
W16 エンボス( EMBOSS) ( AKDCA71**) KDE‑ 1600‑ 004457〜
番号
品名 図番 個数
No. Dwg. No. QTY
備考
Remarks
Descri pt i on
83 ﾅｯﾄ 6ｶｸ NUT, HEX N1075A 2 M2. 5
84 ﾅｯﾄ 6ｶｸ NUT, HEX N1080A 4 M4
85 ｻｰｸﾘｯﾌﾟ CI R‑ CLI P S1021A 2 STｰEWｰ3
86 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5357G 4 M3x4
87 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1041A 3 M4
90 ｺﾈｼﾞ 6ｶｸｱﾅﾎﾞﾀﾝ SCREW, HEX SOCKET BUTTON K52565 1 M4x6
91 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5358A 6 M3x10
92 ｺﾈｼﾞ +ｱﾅｻﾗ SCREW, C/R COUNTERSUNK K5169D 3 M2. 5x4
93 ﾎﾞﾙﾄ 6ｶｸｱﾅ BOLT, HEX SOCKET H5273A 1 M3x5
95 ｼｰﾙ SEAL KDCC0630 1
96 ｼｰﾙ SEAL BFCC0200 1
97 ｽﾄｯﾊﾟ STOPPER KDCC0641 1
98 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1039D 2 M2x0. 3x5( ﾐｶﾞｷ丸)
99 ｶﾊﾞｰ COVER KDCC0762 1
100 ｼｰﾄ SHEET KHEM1081 1
101 ｼｰﾄ SHEET KDCC1280 1
102 ﾛｰﾀﾘｰ SW ROTARY SW S3087S 1
103 ﾜｯｼｬ ﾋﾗ WASHER FLAT W1039H 2 2. 5M/ M
104 ﾎﾞﾙﾄ 6ｶｸｱﾅ BOLT, HEX SOCKET H5277A 7 M3X12
105 ﾜｯｼｬ ｻﾗ WASHER，CONI CAL W1010A 5 M−3−L
106 ﾌﾟﾚｰﾄ PLATE KDCC1221 1
107 ｺﾈｼﾞ +ｱﾅｻﾗﾅﾍﾞ SCREW, C/R PAN K51757 2 M2. 5x6
108 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1040A 5 M3
109 ｼｰﾙ SEAL KDCC1641 1
110 ｼｰﾙ SEAL KDCC1651 1
http://www.fuji.co.jp/
Copyright © 2002 by Fuji Machine Manufacturing Co., Ltd. All Rights Reserved.

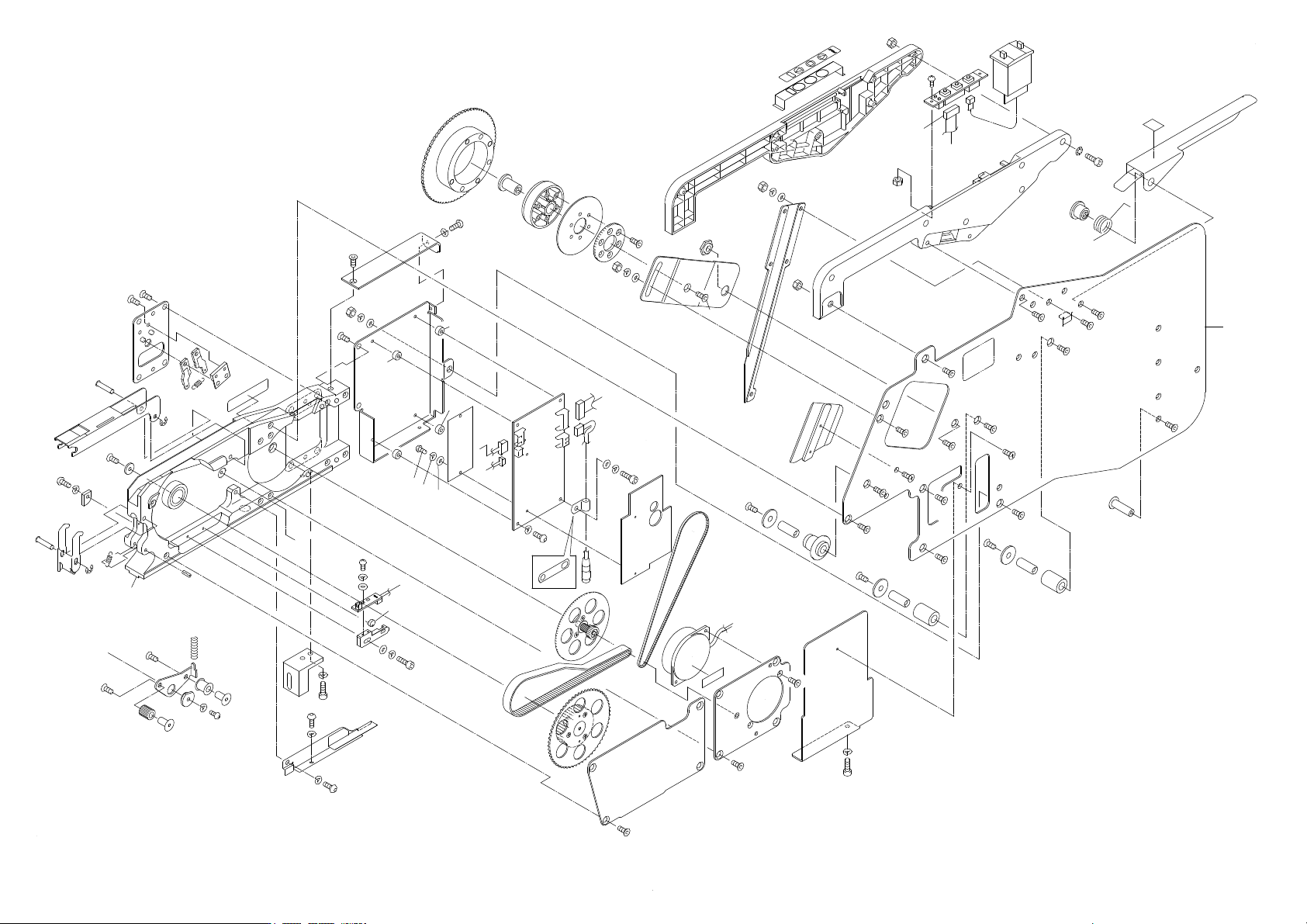

I P, QP2モータフィーダ W16 エンボス
KDE‑ 1600‑ 004457〜
I P, QP2 MOTOR FEEDER W16 EMBOSS
Ref . 33‑ 7
Ref . 31‑ 1
Ref . 31‑ 1
Ref . 31‑ 1
Ref . 31‑ 1
A
ﾀﾃx173. 205
D
B
D
A
B
C
C
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x4
79
76
108
70
84
53
105
55
92
104
83
70
70
80
96
70
107
79
70
70
81
74
81
70
91
87
73
84
70
70
92
81
80
70
70
70
47
17
14
17
14
15
17
14
15
50
102
106
43
44
61
11
26
27
34
28
45
25
10
9
5
29
16
3
76
71
76
73
77
101
67
87
100
8
58
52
50
57
103
76
75
63
78
104
51
24
24
24
70
84
73
99
71
76
74
24
33
98
74
74
70
70
71
76
97
95
104
76
78
86
76
93
70
86
81
68
69
73
72
90
75
76
46
65
64
19
4
32
30
30
35
31
23
22
36
20
21
18
54
49
48
13
62
85
42
38
37
12
8
7
6
85
62
59
66
2
1
0. 5 1 2 10
39
