SMT Software Engineering Group IM Operations Y AMAHA MOTOR CO., L TD MDOC-SOFT50403 1/7 Inspection Camera Distortion Correct Content s Inspection Camera Distortion Corr e ct ............ .. ................... ...…
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50403
1/7
Inspection Camera Distortion Correct
Contents
Inspection Camera Distortion Correct ........................................................................................... 1
1. Machine and Version ................................................................................................................. 2
2. Overview .................................................................................................................................... 2
3. Setting Method .......................................................................................................................... 4
3.1. Machine Setting .................................................................................................................. 4
4. Function Details ......................................................................................................................... 5
4.4 Log Saving ........................................................................................................................... 6
5. Limitation ................................................................................................................................... 7
Rev Version Chapter Contents
00 V3.45STD R1.000
V4.49STD R1.000
-- Created
本文書に含まれる技術内容は当社の秘密情報です。当社の許諾無く第三者への開示はできません。
The information contained in this message may be confidential and legally protected under
applicable law. The message is intended solely for the addressee(s).
If you are not the intended recipient, you are hereby notified that any use, forwarding,
dissemination, or reproduction of this message is strictly prohibited and maybe unlawful.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50403
2/7
1. Machine and Version
This function is available with the following machine and software version.
Table 1.1 Machine and Version
Machine Version Note
YSP V3.45STD R1.000 or later
YCP10 V4.49STD R1.000 or later
2. Overview
This function confirms distortion or leaning of the inspection camera and makes adjustment.

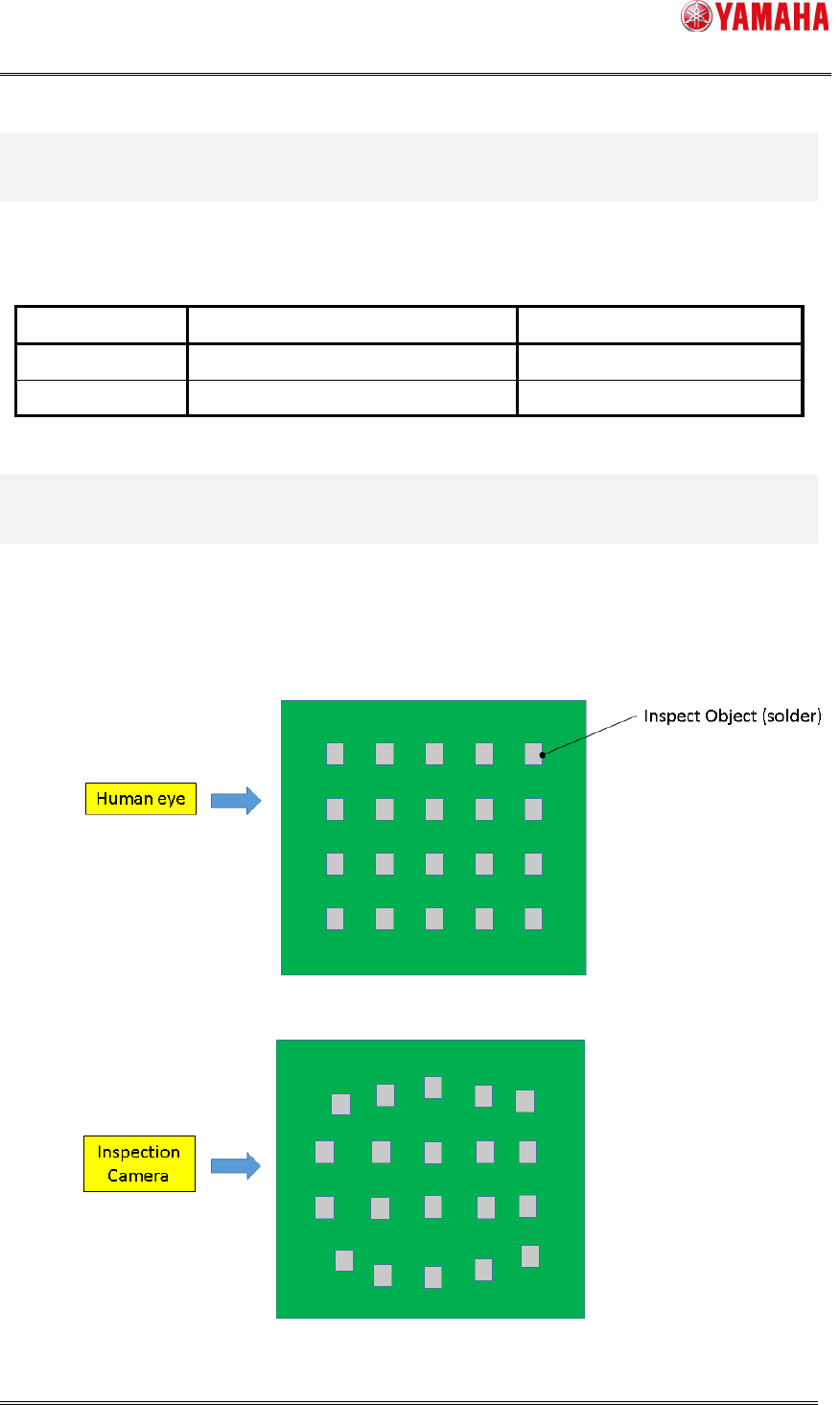

Even when objects are aligned regularly as Fig 2.1, they sometimes look misaligned at the
end of the view as Fig 2.2, because of distortion of the lens or leaning of the camera itself.
Fig 2.1 Visual view of objects
Fig 2.2 Inspection camera view of objects
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50403
3/7

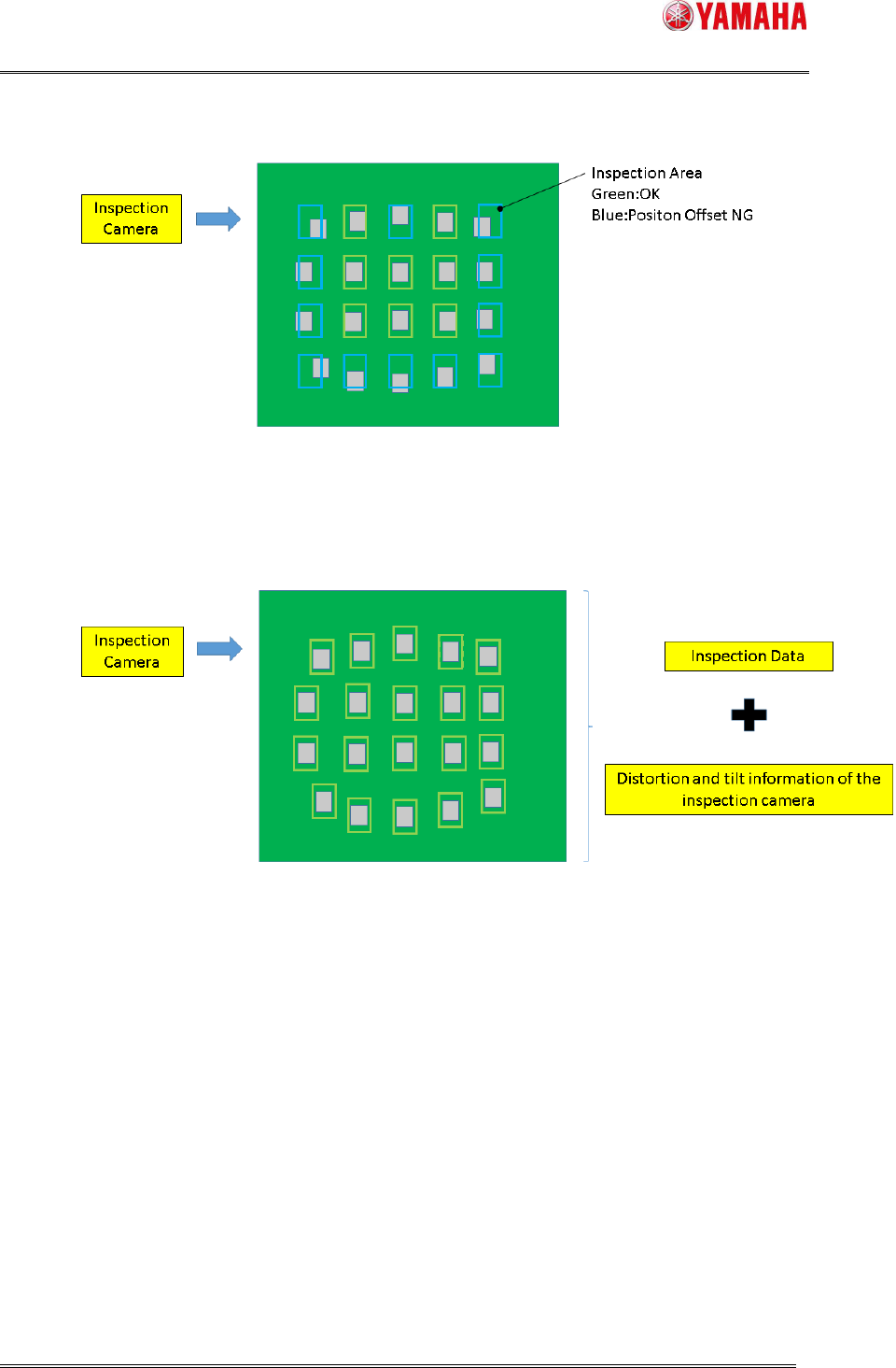

If inspection is performed with this condition, it may be judged as misalignment. (Fig 2.3)
Fig 2.3 Misjudgment at inspection
“Inspection Camera Distortion Correction” acquires information such as distortion of the lens
and leaning of the camera, and adjusts the inspection data. (Fig 2.4)
Fig 2.4 View with Inspection Camera Distortion Correct
