F EA T URES Electr osta tic Pai nted Met al Sheet Body 2° C - 20 °C T emperature se t range 0. 5 % Rh -95 % Rh Humi dit y set range Aut omatic Door Locks by Password 7” T ouch Screen Control Panel , 8 00 * 4 8 0 Pixel Sc…
X-Treme Series Solder Paste Storage Cabinet is used for the purpose of
controlled and safe storage of solder pastes at proper conditions. In general, these
conditions vary between 2°C-20°C depending solder paste type and brand. Shelf
life of solder paste is normally 2 weeks at ambient temperature. Especially high
temperatures affect solderability viscosity of solder paste. However, moisture is
also an important factor for solder paste. The shelf life of solder paste that is not
stored under proper conditions decreases due to factors such as oxidation and
contamination, problems with solderability occur, and solder quality deteriorates.
For this reason, solder pastes should be stored at low temperatures and under
suitable humidity conditions.
X-Treme Series Solder Paste Storage Cabinet can be set to desired values
at between 2 ° C - 100 ° C temperature and 0.5% Rh - 95% Rh humidity ranges,
and the solder pastes can be stored in the appropriate environment and soldering
problems are eliminated in production. With the latest technology humidity &
temperature sensors, the operator can monitor the values inside the cabinet with
high precision. Thanks to the homogeneous humidity & temperature distribution
inside the cabinet, all soldering materials are stored under the same conditions
and possible losses are prevented. If used properly, it contributes 100% to solder
quality.
Thanks to the MSD Track software, the operator can track the shelf life of
solder pastes, the time they stay under ambient conditions, the remaining quantities,
and their physical location. With FIFO (first in, first out) logic, the Operator can
use solder pastes in order before their shelf life expires. X-Treme Series offers
customized volume options for long term storage of your solder pastes at safe and
proper conditions.
Solder is an alloy that is used to join two or more metal parts. This alloy
consists of a mixture of tin, lead, and silver elements. Numerous methods and
various solder materials are used in the process of soldering PCBs to circuit
components. Among these variety Solder Paste is one of the commonly used
material in today’s technology.
SOLDER PASTE STORAGE CABINET
WHAT IS SOLDER PASTE?
FEATURES
Electrostatic Painted Metal Sheet Body
2°C - 20 °C Temperature set range
0.5% Rh -95% Rh Humidity set range
Automatic Door Locks by Password
7” Touch Screen Control Panel, 800*480 Pixel Screen Resolution
Internet Connection by Wi-Fi or Ethernet Cable
USB Connection
Datalogger (2 GB)
Remote Monitoring System (RMS)
Indoor Sensor (±0.5 ° C Temperature ve ± 0.3% Rh Humidity Sensor Precision)
Door Alarm with Buzzer
Alarm notification by E-mail
4 x Casters (2 of them are lockable)
Adjustable Stabilization Legs 2 pcs
Motion Sensor
ESD Protected
MSD Track Software (optionally)
FIFO (optionally)
Alarm Warning Lamp (optionally)
RFID Access (optionally)
LED Illumination (optionally)
Stainless Steel Shelf (optionally)
Stainless Steel (SS) Sliding Shelf (optionally)
X-Treme Series Dryer Unit (optionally)
X-Treme Series N2 Auto Flow System (optionally)
X-Treme Series Hybrid Systems (optionally)
Hepa Filter Option-Class 1000 (ISO 6) (optionally)

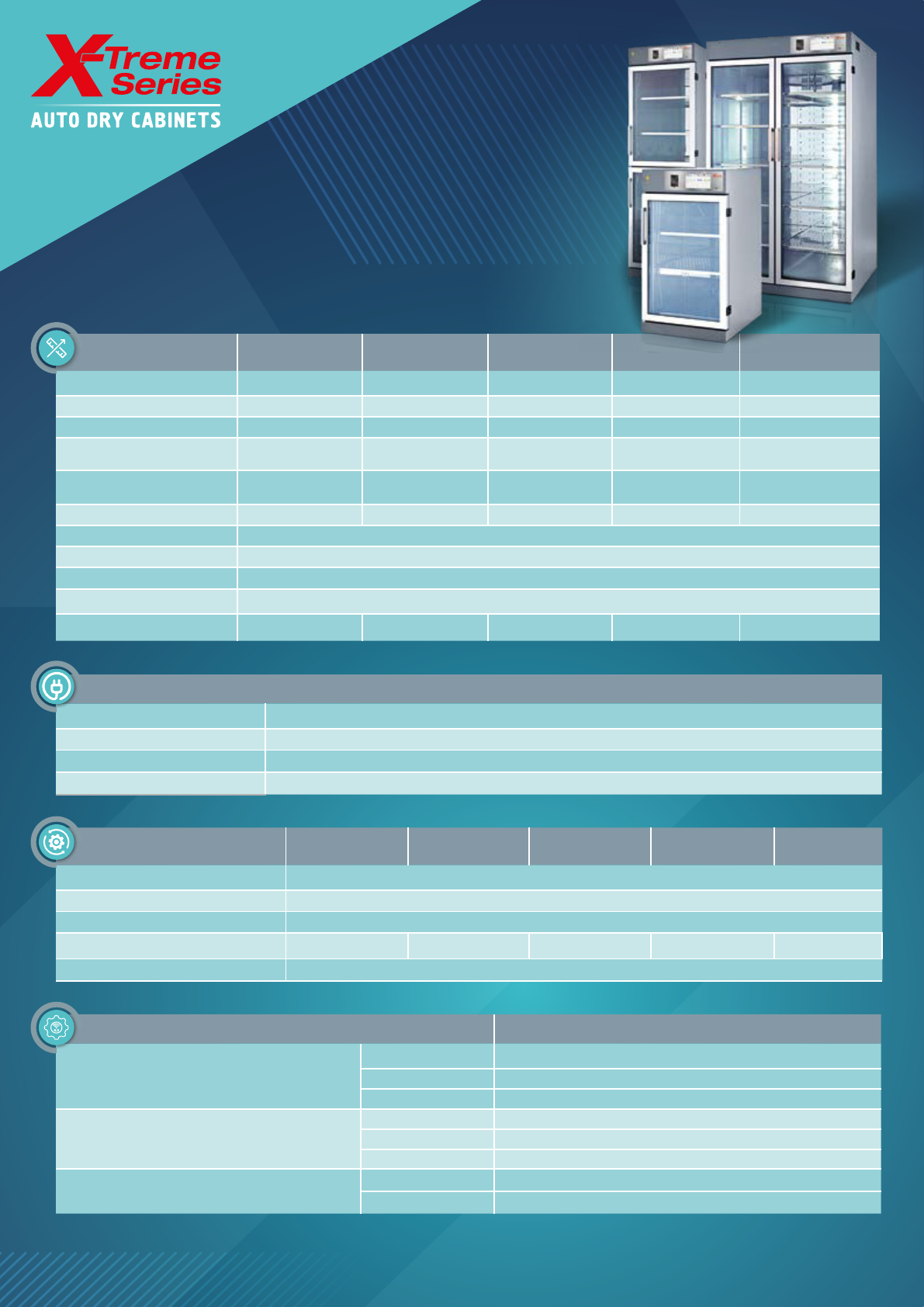

SOLDER PASTE
STORAGE CABINET
Physical
XS-Line
(300 Liters)
XS-Line
(600 Liters)
XS-Line
(900 Liters)
XT-Line
(1250 Liters)
XL-Line
(1840 Liters)
Net Volume
300 Lt 625 Lt 925 Lt 1250 Lt 1840 Lt
Net Volume
(Thermal Insulated)
285 Lt 600 Lt 890 Lt 1215 Lt 1790 Lt
External Dimensions
(WxHxD)
606x1128x750mm 606x1990x750mm 606x1990x1050mm 1200x1990x750mm 1200x1990x1050mm
Internal Dimensions
(WxHxD)
603x792x630mm 603x1654x630mm 603x1654x930mm 1197x1654x630mm 1197x1654x930mm
Internal Dimensions
(WxHxD)
(Thermal Insulated)
584x772x630mm 584x1634x630mm 584x1634x930mm 1178x1634x630mm 1178x1634x930mm
Wight
(Depends on configuration)
90 kg 134 kg 160 kg 190 kg 280 kg
Shelf Load Capacity
50 kg
Height From Ground
30 mm
Body Material
Electrostatic Painted Steel Body, Stainless Steel Interior Panel (AISI 430)
Door Glass
24 mm Insulated Glazing
Shelves and Drawers
2 pcs Stainless Steel 5 pcs Stainless Steel 5 pcs Stainless Steel 10 pcs Stainless Steel Optional
Electrical
Voltage
220 - 240 V AC 50 Hz - 110 V AC 60 Hz (±10%)
Current / Max. Power
10 A - 16 A (Maximum) / 2200 W Max
Average Power Consumption
50 W/h
Max. Power Consumption
1500 W/h
Operational
XS-Line
(300 Liters)
XS-Line
(600 Liters)
XS-Line
(900 Liters)
XT-Line
(1250 Liters)
XL-Line
(1840 Liters)
Humidity Set Range
0.5% - 95% RH (Ambient to Set Value)
Temperature Set Range (Optional)
2 °C / 15 °C / 45 °C / 60 °C / 100 °C (Ambient to Set Value)
Time to Reach to Set Humidity Level
<15 min. Single Dryer; <7 min. Double Dryer(values for 1% RH )
Number of Doors
1 2 2 4 2
Door Lock
Automatic, Password Protected
Version 3.0 Software - Industry 4.0
Display -Control Panel
Type Touch Screen Display
Active Area 7" - (155 x 86mm)
Resolution 800 x 480 Pixel
Datalogger
Capacity 2 GB
Connection Type Wi-Fi (Wireless), Ethernet Cable (Network), USB Flash Disk
USB (AF Type) Connector Right and Left Side of the Cabinet
RMS (Remote Monitoring)
Monitoring via PC, Phone, Tablet
Connection Type Wi-Fi (Wireless), Ethernet Cable (Network)
