Uncrating the System
Overview
To uncrate the Medalist i3070 Series 5i system you will need a space
approximately 2.5 m (8 feet) by 4 m (13 feet).
Check for Shipping Damage
Before uncrating the system, check the Tilt and Shock indicators and
notify the carrier if any of them have been triggered.
Tools Required
• Safety glasses
• Gloves
• Utility knife or scissors
• 14 mm (9/16”) wrench or socket
Precautions
Save all packaging materials in case the system is to be reshipped or
moved to another site.
NOTE
Only qualified personnel should uncrate the system. A minimum of two people are
required.
Avoid injury by following the instructions carefully.
A fully loaded test system with shipping pallet can weigh in excess of 1100 kg (2400 lb)
and should be moved with caution using a forklift. See Handling Guidelines.
The test system is wrapped in plastic wrap. Do not move the crate or the system to a static
sensitive area until you have removed the plastic wrap from the system.
WARNING
CAUTION
Uncrating the System
Medalist i3070 Series 5i Uncrating the System 5
Handling Guidelines
Forklift Requirements
A forklift with tines of at least 1530 mm (54”) and capable of lifting at
least 1500 kg (5000 lb) at a load centre of 1140 mm (45”) is needed to
unload and move the system.
Other transportation can be used as long as the full weight of the main
unit is fully and properly supported.
General Handling Guidelines
• Do not carry or lift the system by its doors or any openings in the
covers.
• Always handle the system at the base.
• Care must be taken to prevent damage to the system through rough
handling.
• It is recommended that the forklift be positioned at the rear of the
system. Insert the fork at the base of the system, as indicated by the
labels (Figure 1). Ensure that the system is as far as possible from the
end of the fork.
Figure 1 Forklift Positioning
Failure to meet the above requirements could result in serious injury
to personnel and/or damage to the Medalist i3070 Series 5i system.
WARNING
AS FAR AS
POSSIBLE
AS CLOSE
AS POSSIBLE
6 Medalist i3070 Series 5i Uncrating the System
Uncrating the System
Uncrating Procedure
1 With one person on each side of the front wall, release the latches and
remove the front wall from the crate.
2 Remove the bolts along the bottom of the rear and side walls.
Crates are custom built for individual systems and may have slight differences in how they
are assembled. For instance, the front wall may be attached with ¼-turn draw latches or by
bolts. Another variation is how the system is secured to the base. It may be secured using
poly straps or braced by wooden blocks that are attached by screws from the side walls.
NOTE
At least two people are required for the next step.

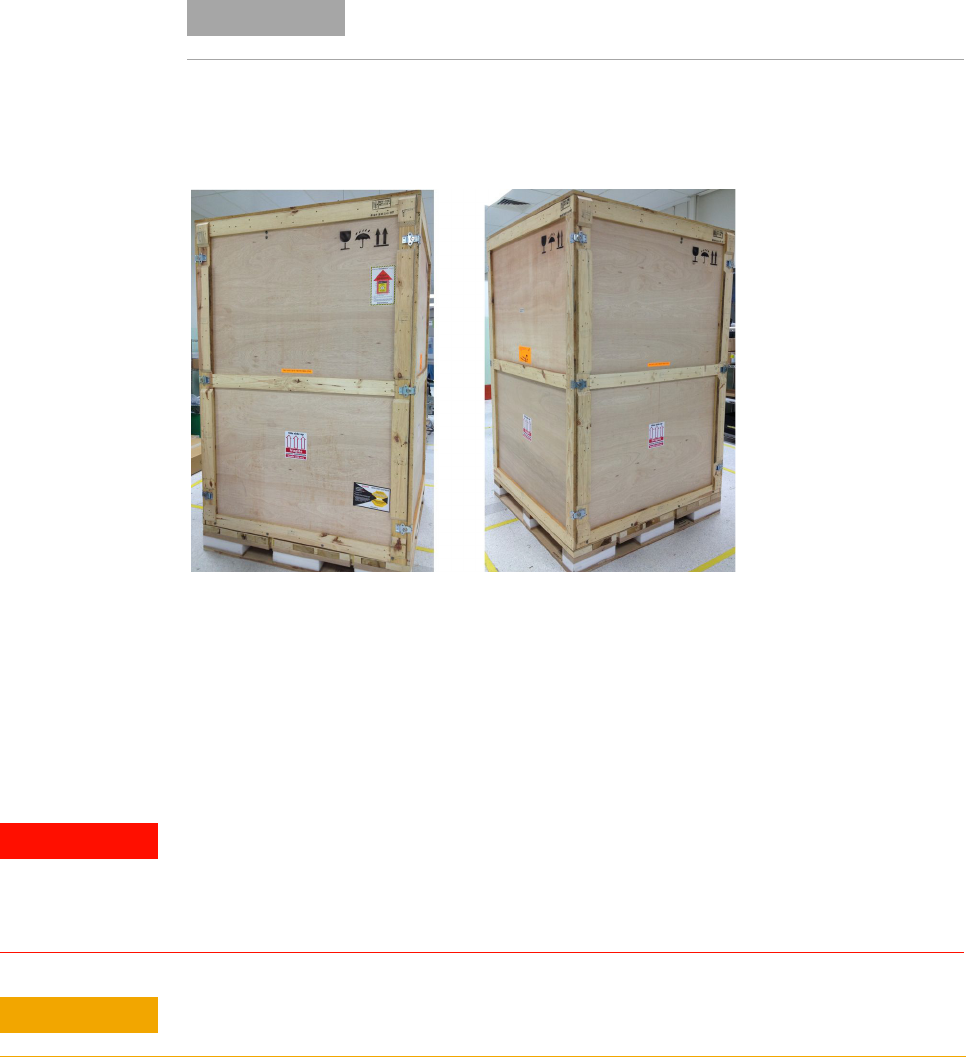

Front view of crated system on pallet
Latches
Front wall removed
Accessories
Box
Rear and side walls
Bolts
WARNING
