YV100II_E Main part list机器细节图.pdf - 第12页

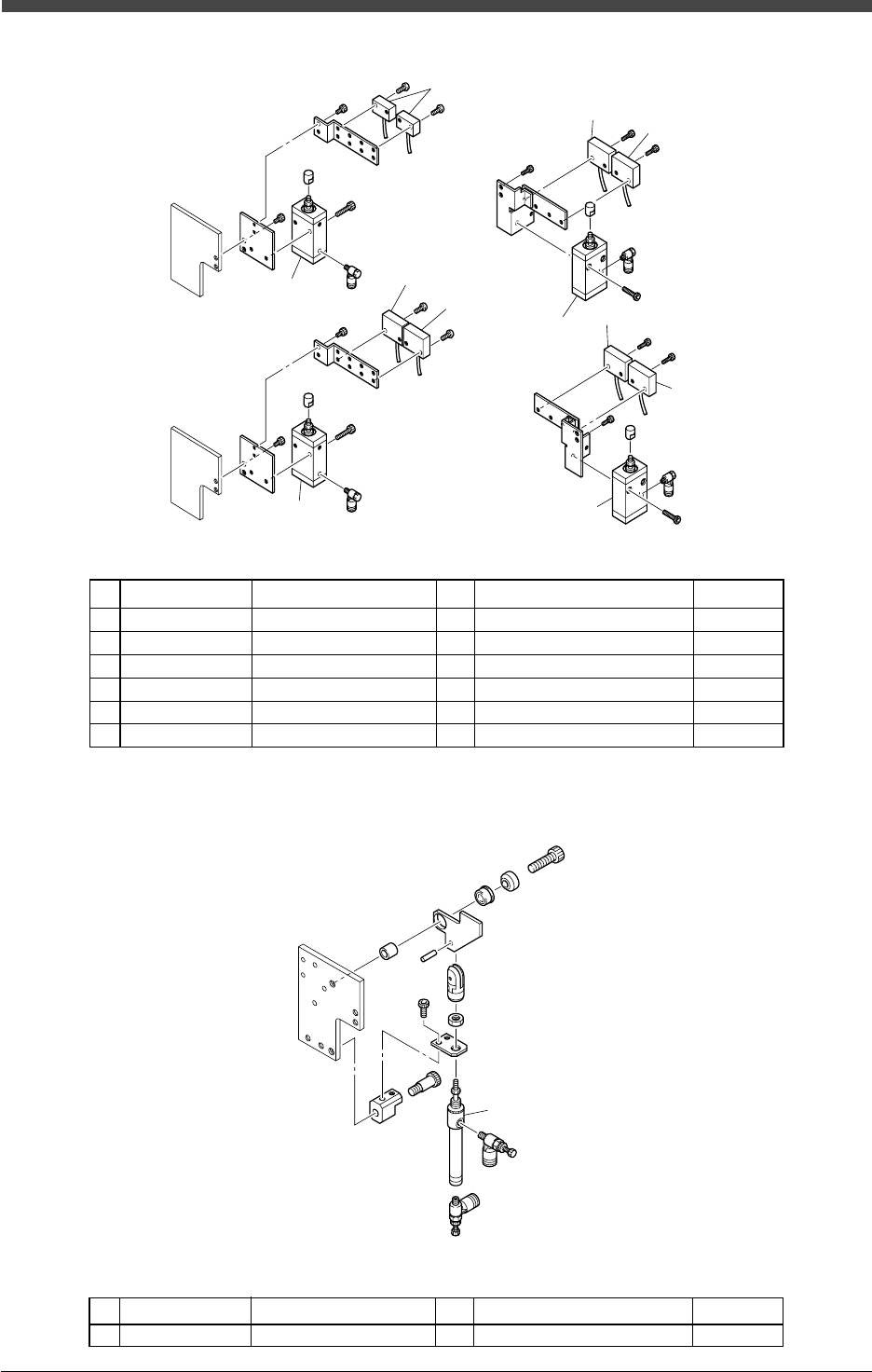

10 Maintenance Parts Locate Pin Main Stopper 1 2 3 KU0-M9174-00X KH5-M9176-00X KU0-M9174-10X PIN, LOCATION CYLINDER ASSY PIN, LOCATION 1 2 1 1 2 3 No. Part No. Part Name Q’ty Remarks Rank A B A 2 1 FOR P.C.B L=1150 KG7-M…
9
Maintenance Parts
Nozzle Changer
Push Up
3
2
1
KM1-M9605-02X
KM1-M9611-02X
KH5-M655A-A1X
KH5-M655A-03X
KH5-M655A-02X
CYLINDER, CLAMP
CYLINDER, U/D
SENSOR, 1-1
SWITCH, OPTICAL ASSY
FIBER
SPARE
SPARE
1
1
6
1
1
1
2
3
4
5
No. Part No. Part Name Q'ty Remarks Rank
B
B
B
B
B
4
5
1
KU0-M9217-00X
CYLINDER
1
No. Part No. Part Name Q'ty Remarks Rank
1
B
10
Maintenance Parts
Locate Pin
Main Stopper
1
2
3
KU0-M9174-00X
KH5-M9176-00X
KU0-M9174-10X
PIN, LOCATION
CYLINDER ASSY
PIN, LOCATION
1
2
1
1
2
3
No. Part No. Part Name Q’ty Remarks Rank
A
B
A
2
1
FOR P.C.B L=1150
KG7-M9165-00X
KM0-M655F-10X
CYLINDER
SENSOR, 1-3
1
1
1
2
No. Part No. Part Name Q’ty Remarks Rank
B
B
11
Maintenance Parts
Sub Stopper
Push In
2
4
4
4
4
4
4
3
1
5
6
FOR P.C.B
FOR P.C.B
K98-M9283-00X
KH4-M655F-20X
K98-M9283-00X
KM0-M655F-10X
K98-M9283-00X
K98-M9283-00X
CYLINDER
SENSOR, 1-3
CYLINDER
SENSOR, 1-3
CYLINDER
CYLINDER
1
2
1
6
1
1
1
2
3
4
5
6
No. Part No. Part Name Q’ty Remarks Rank
B
B
B
B
B
B
1
KG7-M9166-00X
CYLINDER
1
No. Part No. Part Name Q’ty Remarks Rank
1
B
