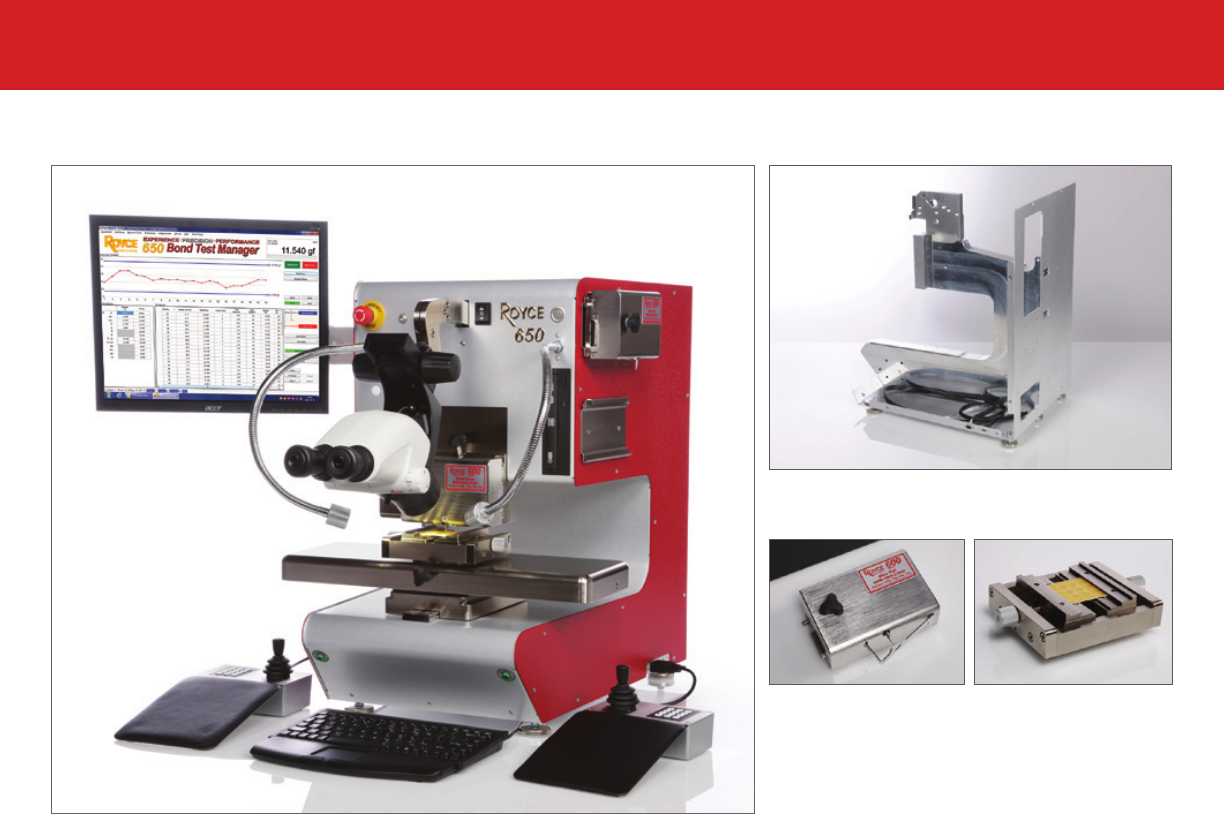

Royce 650 Universal Bond Tester

Based on ﬁeld-proven technology, the Royce 650 Universal

Bond Tester offers the most robust selection of capabilities in

the Royce bond tester family, from the full range of standard

test applications through custom testing. This high-end

instrument is versatile and powerful enough to meet your

complete bond testing needs. The Royce 650 features:

Wide range of applications.

Applications performed by

the Royce 650 include: wire pull, ball bond shear, die shear,

solder ball (bump) shear, zone shear, tweezer pull, stud pull,

die strength 3-point bend (push) test, heated testing, and

custom testing to user speciﬁcations.

One-button microscope height adjustment.

Simply pressing a switch on the front panel adjusts the

microscope to a comfortable height. The motor-driven

microscope smoothly follows an arc path which keeps it in

focus effortlessly.

Large stage travel.

With an

-axis travel over 300 mm and

-axis travel over 150 mm of the servo driven

stage, the

Royce 650 easily accommodates up to 300-mm wafers and

substrates, lead frames and large electronic modules.

Sophisticated digital image capture options.

High mag-

niﬁcation and wide-zoom-range image capture options are

available for factory or ﬁeld installation. These options are

very useful for operator training and for communicating with

customers and contractors. Both options include a high

resolution

USB

camera. With Bond Test Manager, the user

can measure displayed features of the bond site and save,

print, or email the captured images.

Features Common to the Royce 650 and 620

In addition, the Royce 650 includes a number of important

features that are also standard on the Royce 620:

Interchangeable test modules and tooling.

Most test

modules and tooling are quickly interchangeable between

the Royce 650 and Royce 620. All test modules have four

software-selectable subranges down to 1/10 of full scale, to

maximize the versatility of the instrument.

Robust test module design.

Royce’s robust design mini-

mizes down time and the need for module repairs, while

improving the user experience.

Ergonomic design.

The Royce 650 and 620 have been

designed to support operator comfort over long shifts.

Royce 650

Universal Bond Tester

The Royce 600 Series instruments incorporate an

extremely rigid frame for great stability and accuracy.

Test modules are interchangeable between the

Royce 650 and Royce 620 and are easy to change.

A wide variety of test piece holders is available to

accommodate any type of part, and they are inter-

changeable among all 600 Series instruments.

Space-saving, easy-to-access integrated PC.

Both the

Royce 650 and Royce 620 integrate a high-performance

standard Windows

into one compact, easy-to-use

package. The internal

allows a small desktop footprint,

saving valuable cleanroom space and eliminating desktop

clutter. Ease of service is provided by removable side panels.

Flexible monitor mount arm.

This feature allows the

monitor to be positioned to the left, to the right, or above the

bond tester in any position without taking up valuable

desktop space.

Ultrane Pitch.

The high-accuracy shear height and sub-

micron resolution of the

stage deliver solid positioning

repeatability for ultraﬁne pitch testing. Optional microscope

magniﬁcations up to 128x permit easy test site inspection.

Easy-to-use integrated calibration wizard.

Used with the

appropriate calibration equipment, the wizard allows you to

calibrate the instrument on site, maximizing uptime. After

completion, a calibration report is generated, and all calibra-

tion activity is logged in the internal

for future reference.

Rigid chassis.

The exceptionally robust chassis on the

Royce 650 and Royce 620 permits smooth die-shear and

stud-pull testing.

Royce 620 Multitest Bond Tester

The Royce 620 Multitest Bond Tester offers an attractive

bond test solution that is midway between the Royce 650

and the Royce 610. It performs all the most frequently used

applications, and it employs manual sample positioning,

which in some applications allows for higher productivity over

a motorized

stage.

In addition to the features that are common to the Royce 650

and 620, the Royce 620 also offers:

Responsive joystick and manipulator.

The operator

controls the Royce 620 using a joystick and manipulator. The

joystick allows the operator to control the

height positioning

of the module (and tool rotation for wire pull testing), while

the manual manipulator allows the operator to control the

and theta movements of the part.

Compatibility with legacy systems.

The Royce 620 is fully

compatible with the Royce 550 and Royce 552 manipulators,

test piece holders, and tools.

The Royce 650 and the Royce 620 incorporate an

internal PC, creating a smaller system footprint.

Royce 620

Multitest Bond Tester

The Royce 620 uses a range of manipulators, both

current and from legacy systems, that permit rapid

and precise positioning of the test piece.

Royce 610

Dedicated Wire Pull Bond Tester

Royce 600 Series Dimensions and Facility Requirements

650 620 610

Dimensions

Height

Width

Depth

635 mm (25 in)

432 mm (17 in)

585 mm (23 in)

560 mm (22 in)

432 mm (17 in)

585 mm (23 in)

460 mm (18 in)

320 mm (12.5 in)

560 mm (22 in)

Weight

55 kg (120 lbs) 50 kg (110.5 lbs) 27 kg (59.5 lbs)

Power Supply

90 – 264 VAC

47 – 63 Hz

90 – 264VAC

47 – 63 Hz

90 – 264 VAC

47 – 63 Hz

Pneumatic Supply

420 – 550 kPa

(60 – 80 psi)

420 – 550 kPa

(60 – 80 psi)

N/A

Vacuum Supply

500 mm Hg

67.7 kPa, (20 in Hg)

500 mm Hg

67.7 kPa, (20 in Hg)

N/A

Royce 610 Dedicated Wire Pull Bond Tester

The Royce 610 Dedicated Wire Pull Bond Tester is designed

for maximum throughput at an affordable cost, in a reliable

system. It features:

V Data output to any

using

232

V Ergonomic design to support operator comfort over long

shifts

V Simple calibration interface to allow user to quickly and

easily check and recalibrate the instrument with on-screen

instructions (NIST traceable calibration weights available)

V Optional strip printer

V Optional keypad for enhanced failure code input

V Optional external Royce

with Bond Test Manager soft-

ware for data storage and networking

The Royce 610 has an optional strip printer unit that

allows you to print out a hard copy of test data. The

610 can also be linked to the centralized database

by using the Royce SurePC option.

To position the part for testing, a number of

manipulators are available for the Royce 610.
