Ro y ce 6 1 0 Dedicated W ire Pull Bond T ester Roy ce 600 Series Dimensions and F acility Requirements 650 620 610 Dimensions Height Width Depth 635 mm (25 in) 432 mm (17 in) 585 mm (23 in) 560 mm (22 in) 432 mm (17 in)…

Space-saving, easy-to-access integrated PC.

Both the

Royce 650 and Royce 620 integrate a high-performance

standard Windows

into one compact, easy-to-use

package. The internal

allows a small desktop footprint,

saving valuable cleanroom space and eliminating desktop

clutter. Ease of service is provided by removable side panels.

Flexible monitor mount arm.

This feature allows the

monitor to be positioned to the left, to the right, or above the

bond tester in any position without taking up valuable

desktop space.

Ultrane Pitch.

The high-accuracy shear height and sub-

micron resolution of the

stage deliver solid positioning

repeatability for ultraﬁne pitch testing. Optional microscope

magniﬁcations up to 128x permit easy test site inspection.

Easy-to-use integrated calibration wizard.

Used with the

appropriate calibration equipment, the wizard allows you to

calibrate the instrument on site, maximizing uptime. After

completion, a calibration report is generated, and all calibra-

tion activity is logged in the internal

for future reference.

Rigid chassis.

The exceptionally robust chassis on the

Royce 650 and Royce 620 permits smooth die-shear and

stud-pull testing.

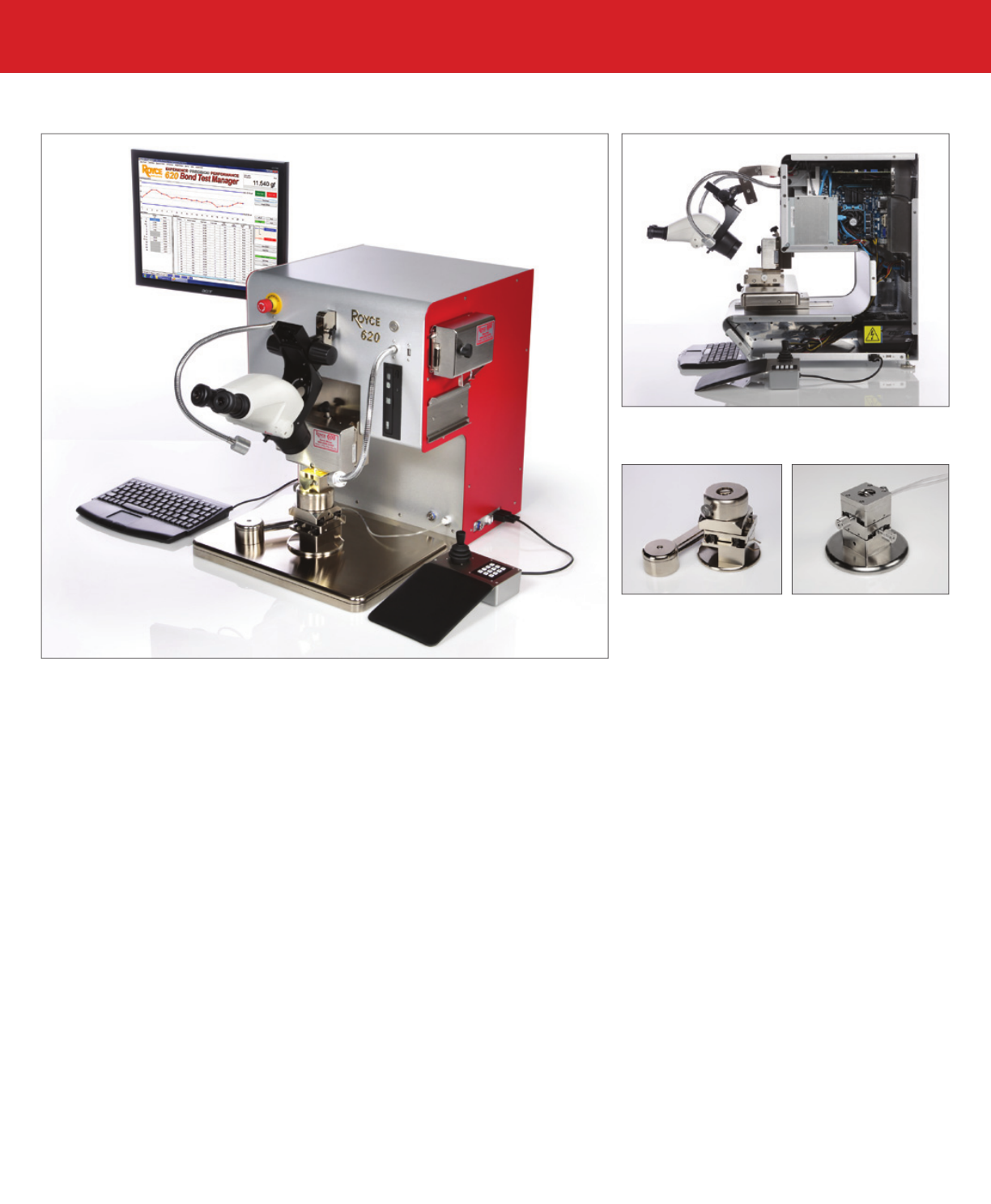

Royce 620 Multitest Bond Tester

The Royce 620 Multitest Bond Tester offers an attractive

bond test solution that is midway between the Royce 650

and the Royce 610. It performs all the most frequently used

applications, and it employs manual sample positioning,

which in some applications allows for higher productivity over

a motorized

stage.

In addition to the features that are common to the Royce 650

and 620, the Royce 620 also offers:

Responsive joystick and manipulator.

The operator

controls the Royce 620 using a joystick and manipulator. The

joystick allows the operator to control the

height positioning

of the module (and tool rotation for wire pull testing), while

the manual manipulator allows the operator to control the

and theta movements of the part.

Compatibility with legacy systems.

The Royce 620 is fully

compatible with the Royce 550 and Royce 552 manipulators,

test piece holders, and tools.

The Royce 650 and the Royce 620 incorporate an

internal PC, creating a smaller system footprint.

Royce 620

Multitest Bond Tester

The Royce 620 uses a range of manipulators, both

current and from legacy systems, that permit rapid

and precise positioning of the test piece.

Royce 610

Dedicated Wire Pull Bond Tester

Royce 600 Series Dimensions and Facility Requirements

650 620 610

Dimensions

Height

Width

Depth

635 mm (25 in)

432 mm (17 in)

585 mm (23 in)

560 mm (22 in)

432 mm (17 in)

585 mm (23 in)

460 mm (18 in)

320 mm (12.5 in)

560 mm (22 in)

Weight

55 kg (120 lbs) 50 kg (110.5 lbs) 27 kg (59.5 lbs)

Power Supply

90 – 264 VAC

47 – 63 Hz

90 – 264VAC

47 – 63 Hz

90 – 264 VAC

47 – 63 Hz

Pneumatic Supply

420 – 550 kPa

(60 – 80 psi)

420 – 550 kPa

(60 – 80 psi)

N/A

Vacuum Supply

500 mm Hg

67.7 kPa, (20 in Hg)

500 mm Hg

67.7 kPa, (20 in Hg)

N/A

Royce 610 Dedicated Wire Pull Bond Tester

The Royce 610 Dedicated Wire Pull Bond Tester is designed

for maximum throughput at an affordable cost, in a reliable

system. It features:

V Data output to any

using

232

V Ergonomic design to support operator comfort over long

shifts

V Simple calibration interface to allow user to quickly and

easily check and recalibrate the instrument with on-screen

instructions (NIST traceable calibration weights available)

V Optional strip printer

V Optional keypad for enhanced failure code input

V Optional external Royce

with Bond Test Manager soft-

ware for data storage and networking

The Royce 610 has an optional strip printer unit that

allows you to print out a hard copy of test data. The

610 can also be linked to the centralized database

by using the Royce SurePC option.

To position the part for testing, a number of

manipulators are available for the Royce 610.

* All

s include a 32

solid state hard drive with 1,000,000 hours

MTBF

, Windows

7, 17-inch color monitor, internal

DVD

drive,

USB

, network ports, keyboard with integrated touch pad, Bond Test Manager, Excel

compatible IBM Lotus

Symphony ofﬁce suite, Adobe

Acrobat

Reader, and PDF creation software.

Royce 600 Series Product Comparison

650 620 610

Maximum Wire Pull Test

Force

10 kgf 10 kgf 100 gf

Maximum Shear Test Force

200 kgf 5 kgf

N/A

Maximum Tweezer Pull Test

Force

10 kgf 10 kgf

N/A

Maximum Push Test Force (3

point die strength test)

10 kgf 10 kgf

N/A

Maximum Stud Pull Test

Force

200 kgf 5 kgf

N/A

Total System Accuracy

±0.1% ±0.1% ±0.25%

Z Resolution

±0.1 µm ±0.1 µm ±2.5 µm

X,Y Resolution

<1 µm

N/A N/A

Step Back Accuracy

± 1 µm over 2 mil travel ± 1 µm over 2 mil travel

N/A

Computer*

Internal Windows

7 PC

with Bond Test Manager

Internal Windows

7 PC

with Bond Test Manager

Optional external

Windows

7 PC with

Bond Test Manager

Part Manipulation

Joystick-controlled

motorized XY table

(305 mm x 155 mm)

Manual manipulators

(MPS-2 and MPS-3)

Manual manipulators

(MPS-12 and MPS-14)

Module Height and Tool

Theta Control

Joystick with Z and theta

control

Joystick with Z and theta

control

3-button mouse with Z and

theta control

Microscope

Leica S6 Stereozoom Leica S6 Stereozoom Leica S6 Stereozoom

Centralized Database

Compatibility

YES YES

YES

with

optional PC

Ethernet Port for Network

Capability

YES YES

YES with optional PC

International Standard

Compliance

MIL-STD-883

MIL-STD-750 ASTM F1269

JESD22-B117 JESD22-B116

MIL-STD-883

MIL-STD-750 ASTM F1269

JESD22-B117 JESD22-B116

MIL-STD-883
