6 6. SETUP INSTRUCTIONS Refer to Figure 4.0 Note: This installation uses L uer lock adapters shipped with the valve. Any approved material line with ⅛ '' NPT connections will work. 1. Connect the fluid reservoi…

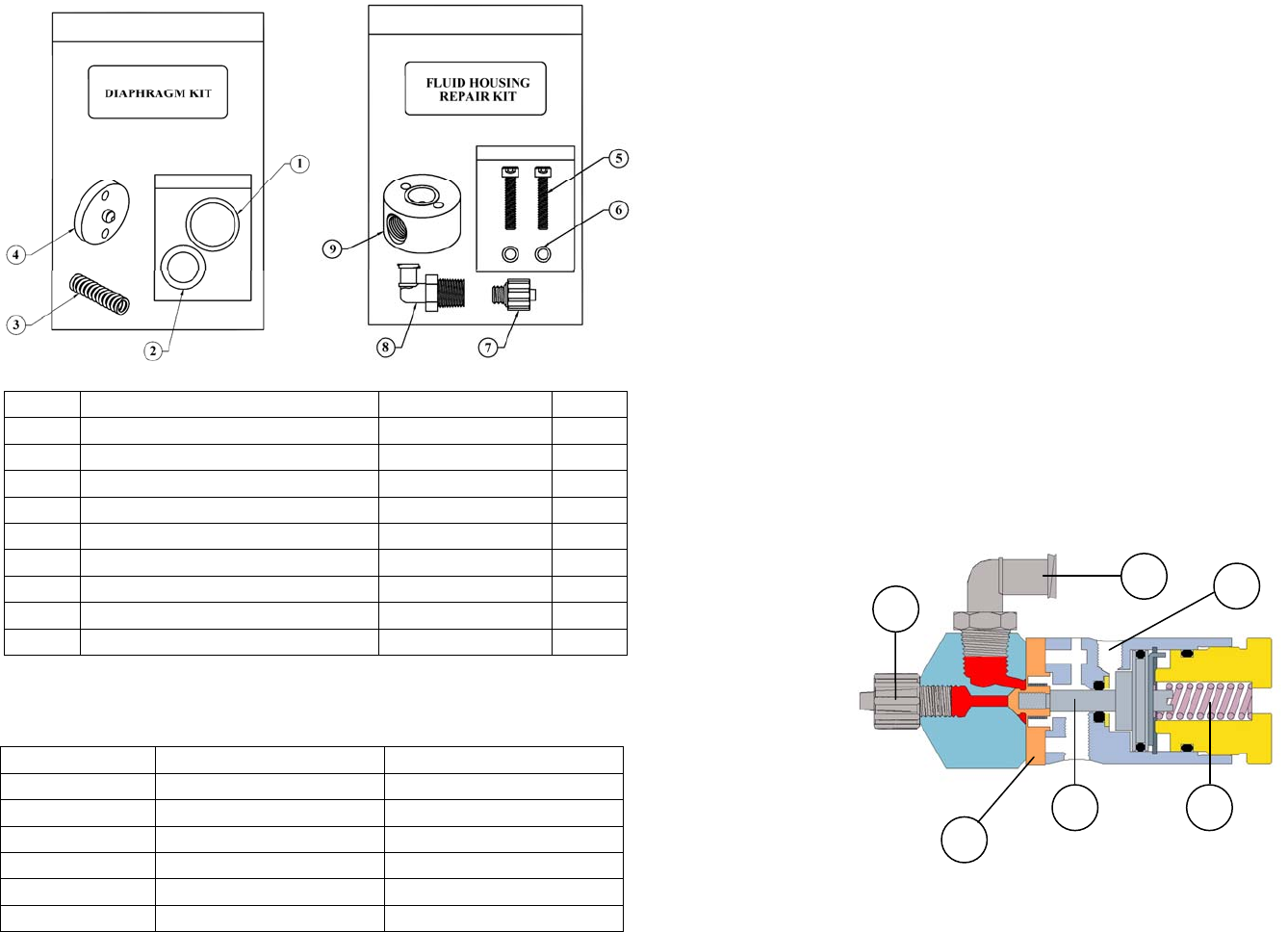

10. REPAIR KITS – Diaphragm and Fluid Housing Repair Kits

Recommended Repair Kits For Diaphragm Valves:

ITEM PART NUMBER DESCRIPTION QTY

1 TSD1400-016A Piston O-Ring 1

2 TSD1400-111A End Cap O-Ring 1

3 TSD1150-40 Spring 1

4 REFER TO PREVIOUS PARTS LIST Diaphragm 1

5 TSD1103-336 Fluid Housing Screw 2

6 TSD1109-53 Flat Washer 2

7 REFER TO PARTS LIST Tip Adaptor 1

8 REFER TO PARTS LIST Inlet Adaptor 1

9 REFER TO PARTS LIST Fluid Housing 1

VALVE FLUID HOUSING KIT DIAPHRAGM KIT

TS5620HT 5620HT-FHKIT 5620TFE-DKIT

TS5620HU 5620HU-FHKIT 5620UHMW-DKIT

TS5621HD 5621HD-FHKIT 5620UHMW-DKIT

TS5622VT 5622VT-FHKIT 5620TFE-DKIT

TS5622VU 5622VU-FHKIT 5620UHMW-DKIT

TS5622VD 5622VD-FHKIT 5620UHMW-DKIT

3. UNPACKING AND INSPECTION

Carefully unpack the valve and examine the items contained in the carton. These

will include:

• Valve Assembly

• Valve bracket, rod and air hose

• 2 x Hex keys

• Sample tip kit and fluid line

• User guide

4. DESCRIPTION

The TS5620 Series Diaphragm Valves are designed to dispense low to medium

viscosity fluids. An internal spring return makes the valve fully adaptable for use

with any time/pressure controller. A short opening stroke provides extremely fast,

positive shut-off. An external stroke control adjustment makes it easy to fine tune

shot sizes. The TS5620 Series Diaphragm Valves compact design allows for

mounting flexibility and easy integration into automated applications.

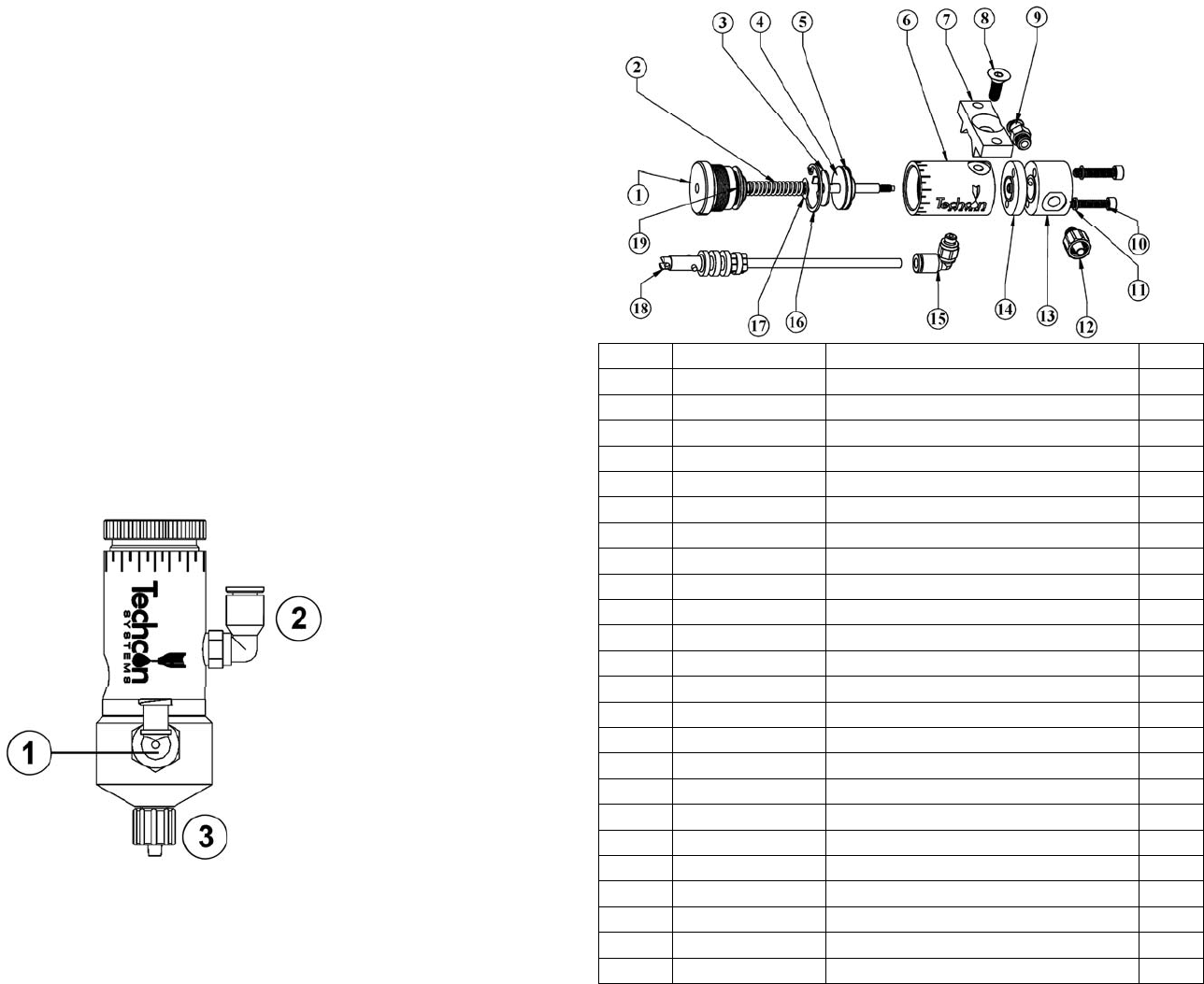

5. THEORY OF OPERATION (Refer to figure 3.0)

The TS5620 Series Diaphragm Valves are normally closed, adjustable stroke

valves. Input air pressure of 70-90 psi (4.8 to 6.2bar) through air inlet port (1)

drives the piston assembly (2) back, opening the material path, allowing fluid flow

from the material inlet (3) to the material outlet (4). Relieving the input air

pressure allows the piston return spring (5) to close the diaphragm (6), ensuring

rapid “fail-safe” shut-off of fluid flow.

Figure 3.0

6. SETUP INSTRUCTIONS

Refer to Figure 4.0

Note: This installation uses Luer lock adapters shipped with the valve. Any

approved material line with ⅛''

NPT connections will work.

1. Connect the fluid reservoir feed tube to the valve inlet port (1).

2. Connect the valve airline to the valve controller or other pneumatic device

that is used to control the valve.

3. Connect appropriate dispensing tip or nozzle to the fluid outlet port (3).

4. Set the valve controller pressure at 70 psi (4.8bar)

5. Set the fluid reservoir pressure. Do not exceed 70 psi (4.8bar)

6. Make sure all connections are tight

7. Place container under the outlet and activate the valve until the fluid flows

steady

The amount of fluid that flows through the valve is determined by:

• Valve open time

• Fluid reservoir pressure

• Dispensing tip size

Figure 4.0

SPARE PARTS, CONT - Horizontal Valve

ITEM PART NUMBER DESCRIPTION QTY

1 5620-000-004 End Cap 1

2 TSD1150-40 Spring 1

3 5620-000-006 Anti-Rotate Washer 1

4 5620-000-005 Piston 1

5 TSD1400-016A Piston O-Ring 1

6 5620-000-003 Air Cylinder 1

7 918-000-048 Mounting Bracket 1

8 TSD1106-13 Mounting Screw 1

9 TSD931-58 Inlet Adaptor For TS5620HT/TS5620HU 1

9* TSD931-54 Inlet Adaptor For TS5621HD 1

10 TSD1103-336 Fluid Housing Screw 2

11 TSD1109-53 Flat Washer 2

12 TSD931-60 Tip Adaptor for TS5620HT/TS5620HU 1

12* TSD931-57 Tip Adaptor for TS5621HD 1

13 5620HT-000-001 Fluid Housing for TS5620HT 1

13* 5620-000-001 Fluid Housing for TS5620HU 1

13* 5621-000-001 Fluid Housing for TS5621HD 1

14 5620-000-011 Diaphragm for TS5620HT 1

14* 5620-000-002 Diaphragm for TS5621HD/TS5620HU 1

15 TSD1003-20 Air Fitting, 4mm, Elbow 1

16 TSD1120-11 Retaining Ring 1

17 TSD1109-43 Mylar Washer 1

18 A0100478 Air Hose/Connector Assembly, 4mm 1

19 TSD1400-111A End Cap O-Ring 1

9. SPARE PARTS - Vertical Valve

ITEM PART NUMBER DESCRIPTION QTY

1 5620-000-004 End Cap 1

2 A0100478 Air Hose/Connector Assembly, 4mm 1

3 TSD1109-43 Mylar Washer 1

4 5620-000-006 Anti-Rotate Washer 1

5 TSD1400-016A Piston O-Ring 1

6 TSD1003-20 Air Fitting, 4mm, Elbow 1

7 TSD931-75 Luer Lock Adaptor, Elbow 1

8 5622-000-003 Fluid Housing for TS5622VT 1

8* 5622-000-001 Fluid Housing for TS5622VU 1

8* 5622D-000-001 Fluid Housing for TS5622VD 1

9 TSD931-60 Tip Adaptor for TS5622VT/TS5622VU 1

9* TSD931-91 Tip Adaptor for TS5622VD 1

10 TSD1103-336 Fluid Housing Screw 2

11 TSD1109-53 Flat Washer 2

12 5620-000-011 Diaphragm for TS5622VT 1

12* 5620-000-002 Diaphragm for TS5622VU/TS5622VD 1

13 TSD1106-13 Mounting Screw 1

14 918-000-048 Mounting Bracket 1

15 5620-000-003 Air Cylinder 1

16 5620-000-005 Piston 1

17 TSD1150-40 Spring 1

18 TSD1400-111A End Cap O-Ring 1

19 TSD1120-11 Retaining Ring 1

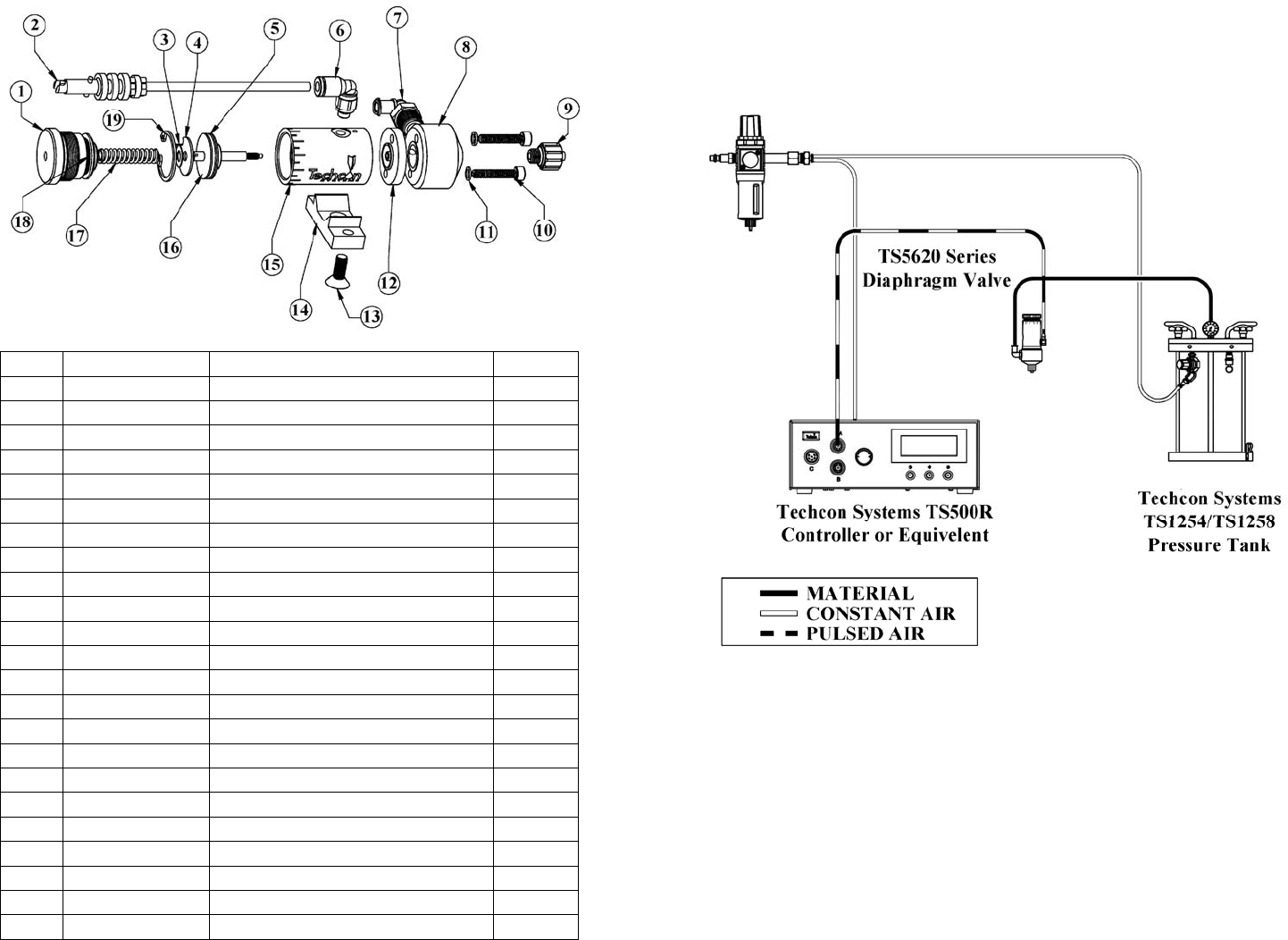

7. TYPICAL SYSTEM SET-UP

Figure 4.0

Figure 5.0
