A s spe ed an d com pl ex i t y i n our w or l d incr eas es , t he U X 2 0 ma kes yo ur dai l y li f e eas ier. T he cl ean an d si mp le la you t o f t he op er at o r de sk al lo ws y ou f ocu s on y our t as k . T he…
USER INTERFACE
The award winning user interface Geminy enables an easy
inspection, both for your 2D and 3D inspection needs.
Our efficient workflows with automation, wizards and
presets guide the user. From novice to expert, all levels
will discover intuitive controls.
IMAGE QUALITY
The operator makes consistent inspection decisions with
our optimized image chain. It combines x-ray tube,
detector and image processing providing benchmark
image quality.
TYPICAL INSPECTION PARTS FOR UX20
- automotive and aerospace components
- castings
- welded structures
- plastics
- special alloys
- ceramics
TYPICAL APPLICATIONS FOR UX20
- quality assurance and material analyses
- failure analyses such as flaws, porosities,
cracks, inclusions
- assembly checking
- measurements of inner structures
- inspection of small serial productions
- process control
ACCESSIBILITY
Easy inspection is the sum of many parts. The operator
desk, for example, has the absolute essentials you need.
You can also vary the height of the desk to accommodate
operation from a sitting or standing position.
MAINTAINABILITY
The system can be placed in small corners due to its
compact footprint and low height. With access from two
sides, maintenance is hassle free. Even the cooler and
generator are safely placed internally to prevent damage
from the rough environment and improve uptime.
The UX20 is a robust system built to last and combined with many innovative features like carbon chucks for easy part handling.
Time for a
new inspection experience
As speed and complexity in our world increases, the UX20 makes
your daily life easier. The clean and simple layout of the operator
desk allows you focus on your task.
The optional CT station is designed to
weather your rough environment while
allowing you to analyze your scans
quickly, and in close proximity to the system.
You can also vary the height of the desk to accommodate operation
from a sitting or standing position.

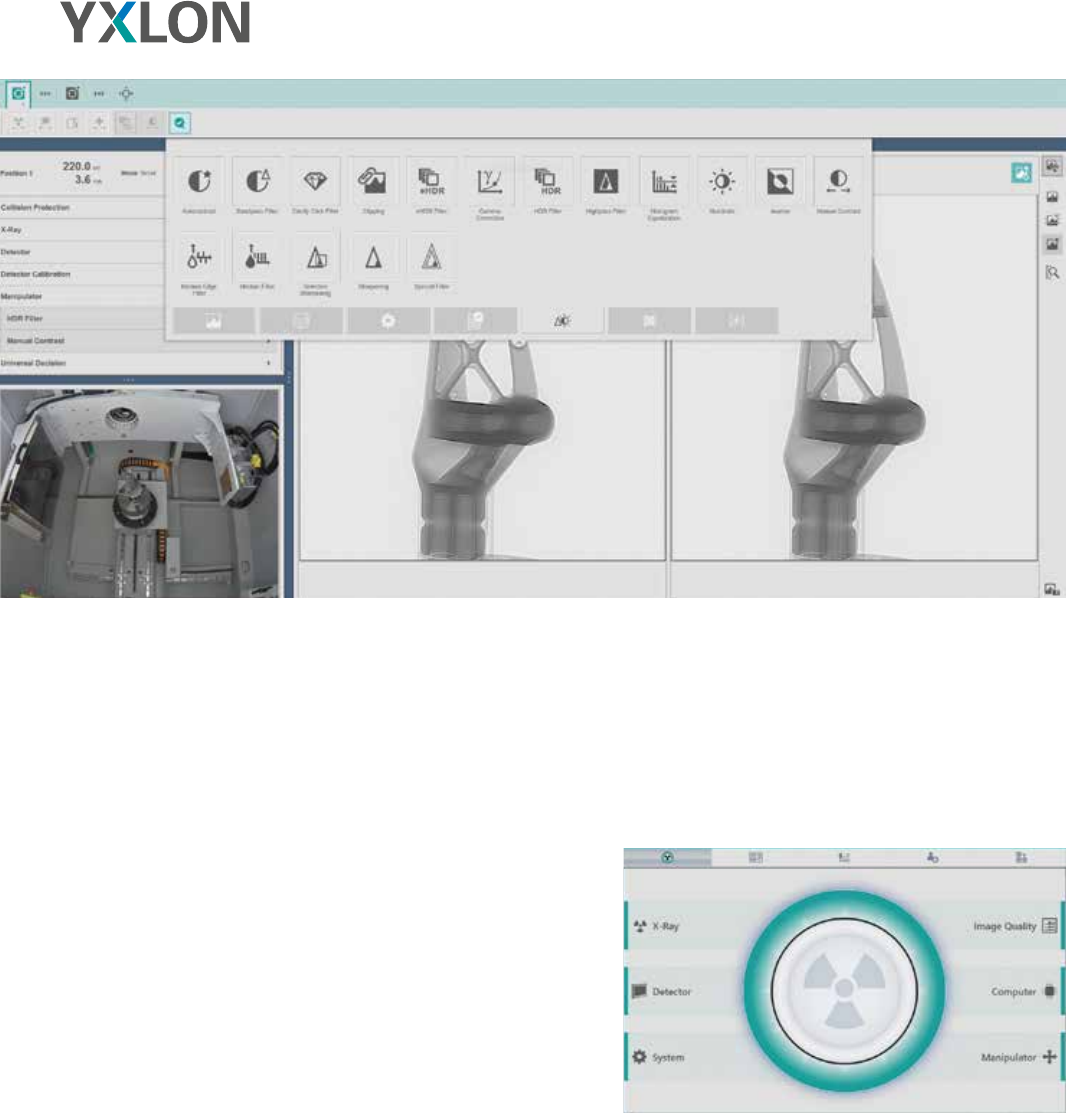

Geminy is Yxlon’s award winning user interface software
running on all our latest products. The most important
design goal is to help you to get the inspection task done
as easily as possible. This starts with having a single
software for all workflows. No matter if you run a CT
inspection, perform an ad-hoc manual 2D inspection,
teach or run an automatic sequence: all are based in
Geminy, the one and only software program for all your
needs.
Different levels of users can streamline their tasks; from
the daily operator that works with preset parameters and
predefined tasks, to the expert that puts these in place,
you can be sure the system supports all users.
One look at the health-monitor is enough to quickly
analyze the system’s condition and performance.
In case anything is abnormal, the solution is usually just
a click away.
Software platform Geminy
You can rely on our decades of 2D x-ray experience to make the correct and safe decision every time.
Geminy’s health monitor shows the current system condition.
