The fast growing market of Lateral Flow
Devices (LFDs) calls for flexible assembly
solutions, both low and high-speed. For
decades, ASYS has been solving assembly
tasks for customers in the Life Science
industries. The Life Science business unit
covers a wide range of automation pro-
cesses and technologies to design customer-
specific and regulatory compliant solu-
tions. We have developed flexible assembly
platforms specifically tailored to the
requirements of the Life Science industry.
Within these platforms, we use standard
modules combined with customized solu-
tions from across our business sectors,
helping us to provide process-safe and GxP-
compliant assembly systems in a short
time span. We deliver complete assembly
lines and factory automation from a single
source, therefore offering our customers
holistic manufacturing solutions.
Complete Solutions from a Single Source
ASYS LIFE SCIENCE
Over 25 years of automation
Since 1992, customers worldwide have trusted our solutions
Turnkey solutions
We develop and realize your manufacturing solution from idea
to final delivery and beyond
Everything from one source
Complete assembly lines and solutions from a single source
High-Speed Assembly of Rapid Tests
Our high-speed solution allows for the assembly of rapid
tests e.g. COVID19, pregnancy, drugs or allergies at output
speeds of up to 80 parts/min. These qualitative tests are
based on thin-layer chromatography and immune marking
of the test strip which is made of porous paper or sintered.
The compact design of our assembly system is based on
a rotary table for high precision combined with short cycle
times. Gripper and nest design allow fast product chan-
geover according to the Poka Yoke principle and flexible
production of product variants with different geometries.
02 | 03
The housing components can be fed to the
assembly process in bulk via appropriate
feeding systems or sorted via trays. The test
strips are fed either as roll material or as
pre-cut cards in magazines and are cut in
the system. The positioning and the joining
processes are controlled inline. Each indi-
vidual assembly step is monitored by a
camera control for correct position, shape,
and process result, and defective parts are
safely separated from the process. Based
on the basic layout, additional process sta-
tions can also be integrated at a later stage
in order to be prepared for future require-
ments and product adaptations.

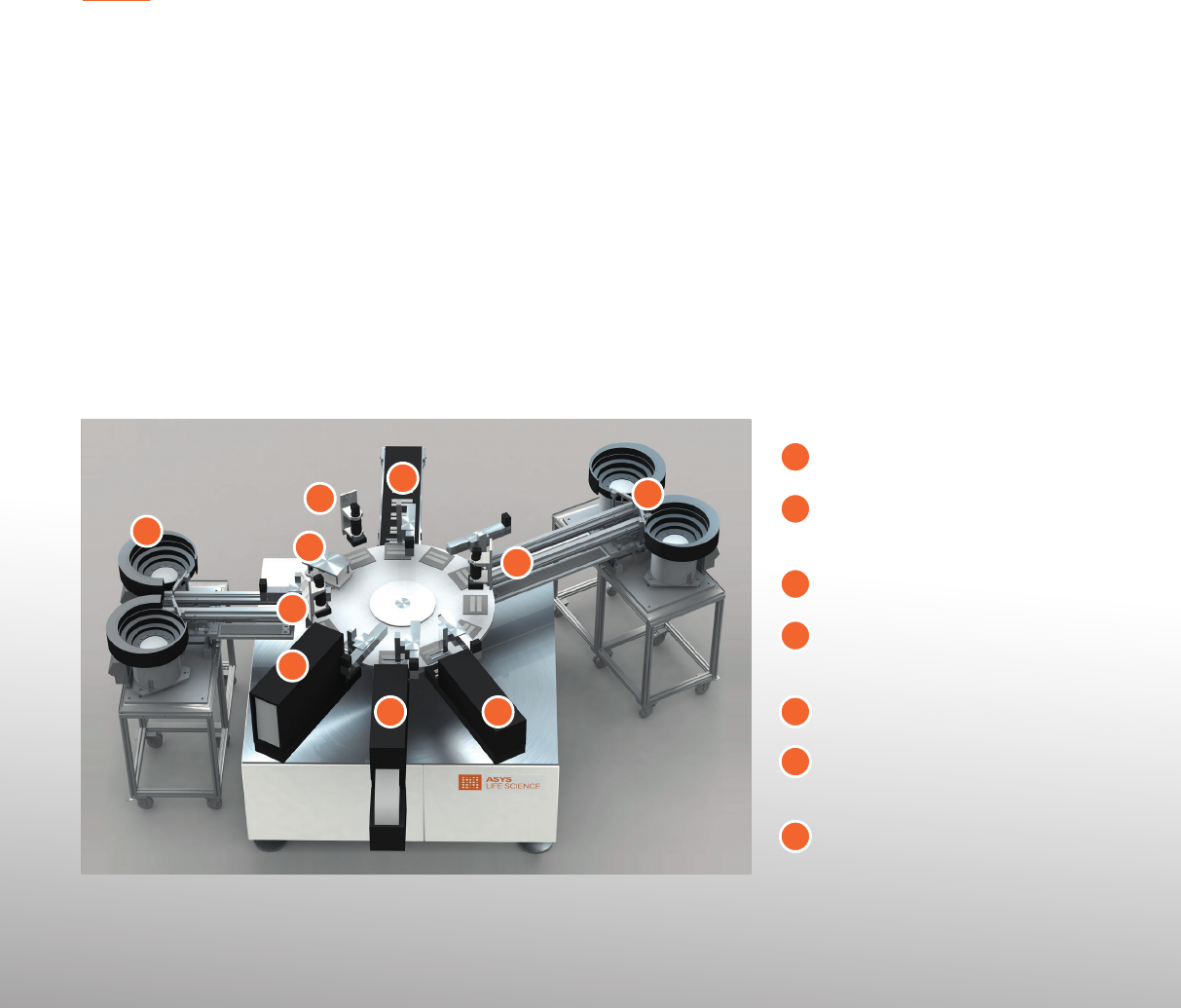

Lateral Flow Device Assembly
1
2
3
4
7
5
6
1
2
3
4
5
6
7
3
3
7
Housing Press
Good part outfeed and reject
of bad parts
QC Camera
Strip cutting and insertion
modules
Strip feeding from the reel
Strip feeding from pre cut
cards
Bowl feeder for housing parts
ASYS LIFE SCIENCE
