T he housing components can be fed to the assembly process in bulk via appropriate feeding systems or sorted via trays. T he test strips are fed either as roll material or as pre-cut cards in magazines and are cut in the…
Over 25 years of automation
Since 1992, customers worldwide have trusted our solutions
Turnkey solutions
We develop and realize your manufacturing solution from idea
to final delivery and beyond
Everything from one source
Complete assembly lines and solutions from a single source
High-Speed Assembly of Rapid Tests
Our high-speed solution allows for the assembly of rapid
tests e.g. COVID19, pregnancy, drugs or allergies at output
speeds of up to 80 parts/min. These qualitative tests are
based on thin-layer chromatography and immune marking
of the test strip which is made of porous paper or sintered.
The compact design of our assembly system is based on
a rotary table for high precision combined with short cycle
times. Gripper and nest design allow fast product chan-
geover according to the Poka Yoke principle and flexible
production of product variants with different geometries.
02 | 03
The housing components can be fed to the
assembly process in bulk via appropriate
feeding systems or sorted via trays. The test
strips are fed either as roll material or as
pre-cut cards in magazines and are cut in
the system. The positioning and the joining
processes are controlled inline. Each indi-
vidual assembly step is monitored by a
camera control for correct position, shape,
and process result, and defective parts are
safely separated from the process. Based
on the basic layout, additional process sta-
tions can also be integrated at a later stage
in order to be prepared for future require-
ments and product adaptations.
Lateral Flow Device Assembly
1
2
3
4
7
5
6
1
2
3
4
5
6
7
3
3
7
Housing Press
Good part outfeed and reject
of bad parts
QC Camera
Strip cutting and insertion
modules
Strip feeding from the reel
Strip feeding from pre cut
cards
Bowl feeder for housing parts
ASYS LIFE SCIENCE

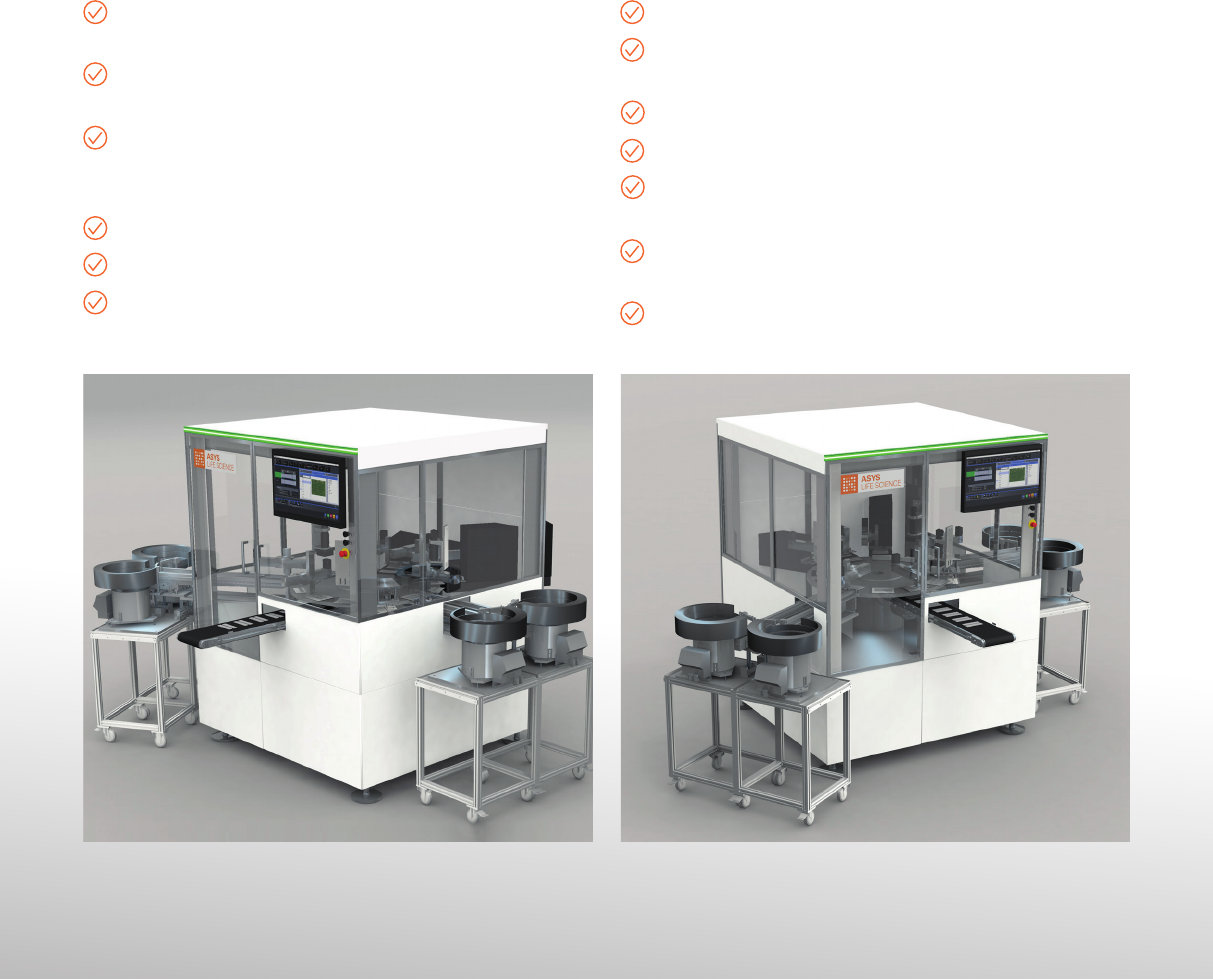

Flexible rotary table high speed LFD assembly cell
Output approx. 80 pcs./min. (depending on product
specifications)
Compact and space saving rotary table system
Easily adaptable to manufacture different devices
Flexible set-up of workstations depending on LFD
specifications
Quick and easy change-over with minimal change
parts (Poka Yoke)
In-house qualification services and support
For different LFD specifications additional worksta-
tions can be added or changed
Various strip cutter versions available (i.e. reel, single
card, card magazine, customized)
Optical quality control of product parts and each as-
sembly step to guarantee maximum quality (i.e. parts
positioning, defect detection, correct assembly, …)
Common industrial software platform
GxP/GAMP 5 compliant
21 CFR 820 / 21 CFR Part 11
High Speed LFD Assembly −
Key Features
04 | 05
