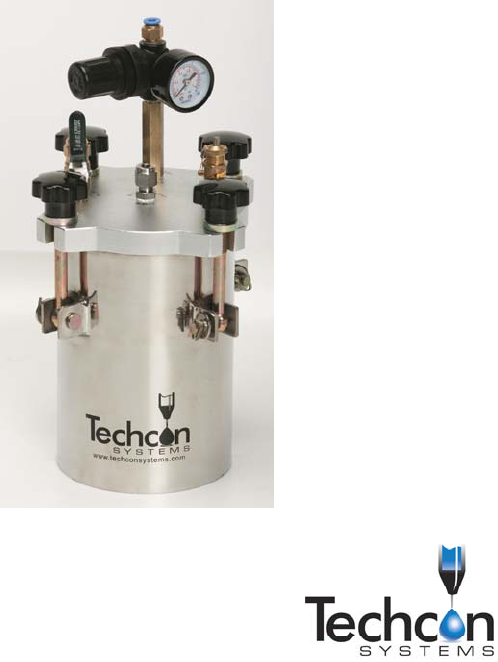

TS1254.pdf

Techcon Systems

TS1254

Pressure Pot

User Guide

TABLE OF CONTENT

1. SAFETY………………………………………………. 3

1.1 Intended Use …………………………………… 3

1.2 Safety Precaution ……………………………… 3

2. FEATURES ……………………………………………. 5

3. SPECIFICATIONS …………………………………… 4

4. INSTALLATION AND OPERATION……………….. 6

4.1 Setup Procedure ………………………………. 6

4.2 Start-Up Procedure …………………………… 6

4.3 Remove Old Tubing …………………….. 8

5. ACCESSORIES AND SPARE PARTS ……………… 9

5.1 O-rings ………………………………………... 9

5.2 Fitting and Tubing Kits ………………………. 9

5.3 Parts List ……………………………………… 10

6. WARRANTY ……………………………………….. 11

6. WARRANTY

OK International warrants this product to the original purchaser

for a period of one (1) year from date of purchase to be free from

material and workmanship defects but not normal wear-and-tear,

abuse and faulty installation. Defective product or subassembly

and components under warranty will be repaired or replaced

(at OK International's option) free of charge. Customer with

defective product under warranty must contact the nearest OK

International office or distributor to secure a return authorization

prior to shipping the product to the assigned OK International

authorized service center.

For nearest OK International office or distributor contact

information, please visit www.techconsystems

OK International reserves the right to make engineering product

changes without notice.

7000-1020_A

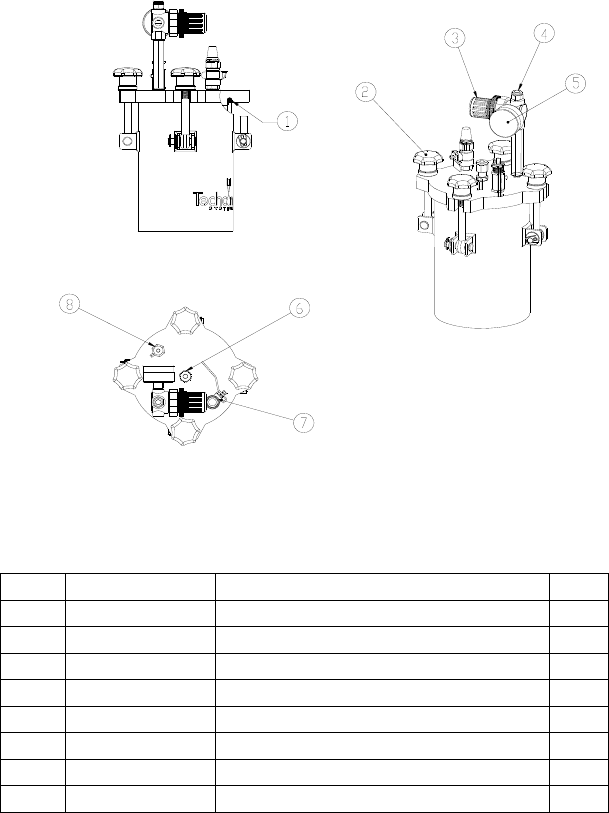

5.3 Parts List

ITEM PART NUMBER DESCRIPTION QTY

1 1254-SIL O-RING, SILICONE M6 X 114 1

2 7054-0030 LOCKING KNOB 4

3 TSD500-37 AIR REGULATOR 1

4 TSD1002-36 FITTING 6MM TUBE X 1/4” NPT 1

5 TSD600-21 PRESSURE GAUGE, 0-100 PSI 1

6 P3000045 FITTING 1/4"NPT X1/4” OD TUBE 1

7 7504-0020 EXHAUST VALVE 1

8 7054-0010 SAFETY VALVE 1

Figure 3 – Parts List

1. SAFETY

1.1 Intended Use:

WARNING: Use of this equipment in ways other than those

described in this User Guide may result in injury to persons

or damage to property. Use this equipment only as described

in this User Guide.

OK International cannot be responsible for injuries or

damages resulting from unintended applications of its

equipment. Unintended uses may result form taking the

following actions:

• Making changes to equipment that has not been

recommended in the User Guide

• Using incompatible or damaged replacement parts

• Using unapproved accessories or auxiliary equipment

This User Guide is designed to provide information about the

OK International hardware. Every effort has been made to

make this manual as complete and accurate as possible. There

is no implied or expressed warranty as to the purpose,

suitability or fitness of the information. The information is

provided on an as-is basis. OK International, Inc. reserves the

right to improve and revise its products. This manual specifies

and describes the product, as it existed at the time of

publication.

1.2 Safety Precautions:

 Do not apply more than 70 psi (4.8 bar) pressure

 Eye protection is required

 Do not attempt to open cover lid until air pressure is

released

 Cover knobs must be hand tightened ONLY

 Secure the pressure Pot to bench top or other stable work

surface

• Check with Factory if unsure about dispensing material

chemical compatibility

• Read the material safety data sheets for special

precautions for the specific material being dispensed.

Wear protective safety equipment as specified in the

material safety data sheets.
