5.5.3 SL Tape Feeder Oiling

5.5.3.1 Sprocket (1) and Sprocket (2) Oiling Procedure

Procedure

(1) For sprocket (1) and sprocket (2), grease can be applied directly from the

oiling slit on the right side of the frame #1 using the dedicated oiling jig.

Also, the grease amount applied to each section should be 0.2 ml (two

divisions in the oiling jig).

Sprocket 1

Sprocket 2

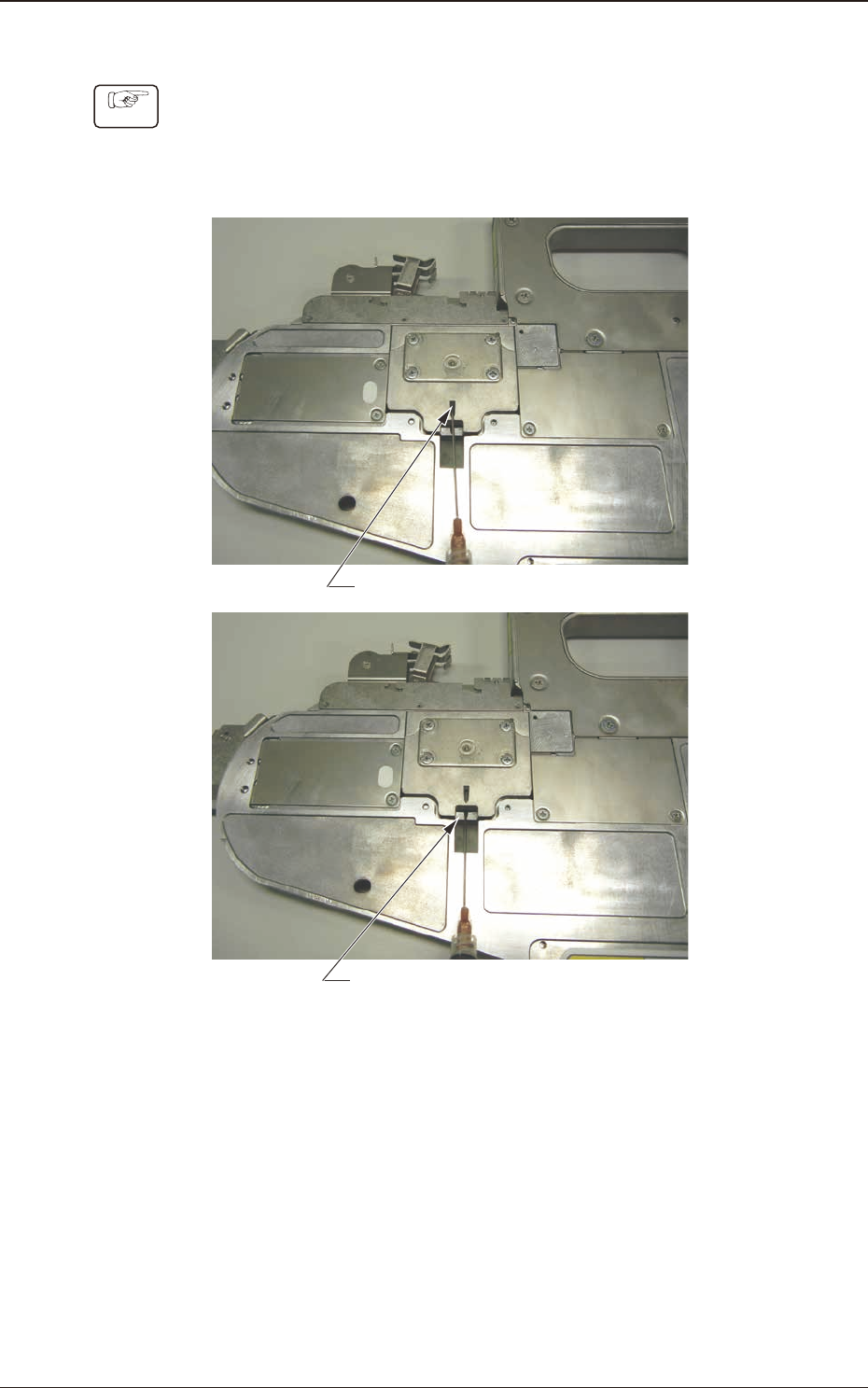

Oiling Slit on the side of the Lane #1 (Upper Side)

Oiling Slit on the side of the Lane #2 (Lower Side)

Oiling Slit on the side of the Lane #1 (Upper Side)

Oiling Slit on the side of the Lane #2 (Lower Side)

Fig. E27

7.5 Maintenance Method

OM-1833

5-17

1504-001

5.5.3.2 Sprocket (3) Oiling Procedure

Procedure

(1) For the sprocket (3), grease can be applied directly from the oiling slit on the

right side of the frame #2 using the dedicated oiling jig.

Also, the grease amount applied to each section should be 0.2 ml (two

divisions in the oiling jig).

Oiling Slit on the side of the Lane #1 (Upper Side)

Oiling Slit on the side of the Lane #2 (Lower Side)

Fig. E28

5.5 Maintenance Method

OM-1833

5-18

1504-001

5.5.3.3 Spur Gear Oiling Procedure

Procedure

(1) Remove the cover LD to expose the spur gear section.

Reference

Refer to "5.5.1.3 Cover LD Removal Procedure" for the removal of the

cover LD.

(2) Apply grease to the spur gears on the left and right using the dedicated oiling

jig.

Also, the grease amount applied to each section should be 0.2 ml (two

divisions in the oiling jig).

Lane 2 Lane 1

Fig. E29

5.5 Maintenance Method

OM-1833

5-19
