3 2 . インコンベア( 逆流れ) ( オプション) I n c o n v e y o r ( R i g h t - t o - l e f t b o a r d f l o w ) ( O p t i o n ) ( W Q C ) CP-642ME P ARTS LIST ver05 3 2 - 1 3 2 . インコンベア( 逆流れ) ( オプション) ( W Q C ) 3 2 . I n c o n v e y o r…
31.エアー機器 Air device(WPI)
CP-642ME PARTS LIST ver05
31-2
31.エアー機器(WPI)
31.Air device(WPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WAB3061 1 BKT BKT
2H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞ ｶﾌﾟﾗ 20PM
3H1059T 1 VALVE, BALL ﾊﾞﾙﾌﾞ ﾎﾞｰﾙ RP-LL-3/8 Lock band
5A4053A 2 ELBOW ｴﾙﾎﾞ 1/4.
6A4081A 1
ELBOW, DIFFERENT DIAMETERS
ｴﾙﾎﾞ異径 3/8X1/4
7H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG
9S2176B 4 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01
10S2172B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-02
11S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01
12S2173B 3 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01
13S2174B 2 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-02
14H1215A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X30
15H1220A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X65
16H1282A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25
17H3075A 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4
18H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L
19H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
20W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
21W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
22W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
23WAB3050 1 TERMINAL, PIPING ﾀｰﾐﾅﾙ 配管
26S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02L5
27S4016R 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D
28S3059Y 1 SPACER ｽﾍﾟｰｻ Y30(29.5)
29H1218A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口
30H1234T 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口
31A4055A 1 ELBOW ｴﾙﾎﾞ ･
32.インコンベア(逆流れ)(オプション) In conveyor(Right-to-left board flow)(Option)(WQC)
CP-642ME PARTS LIST ver05
32-1

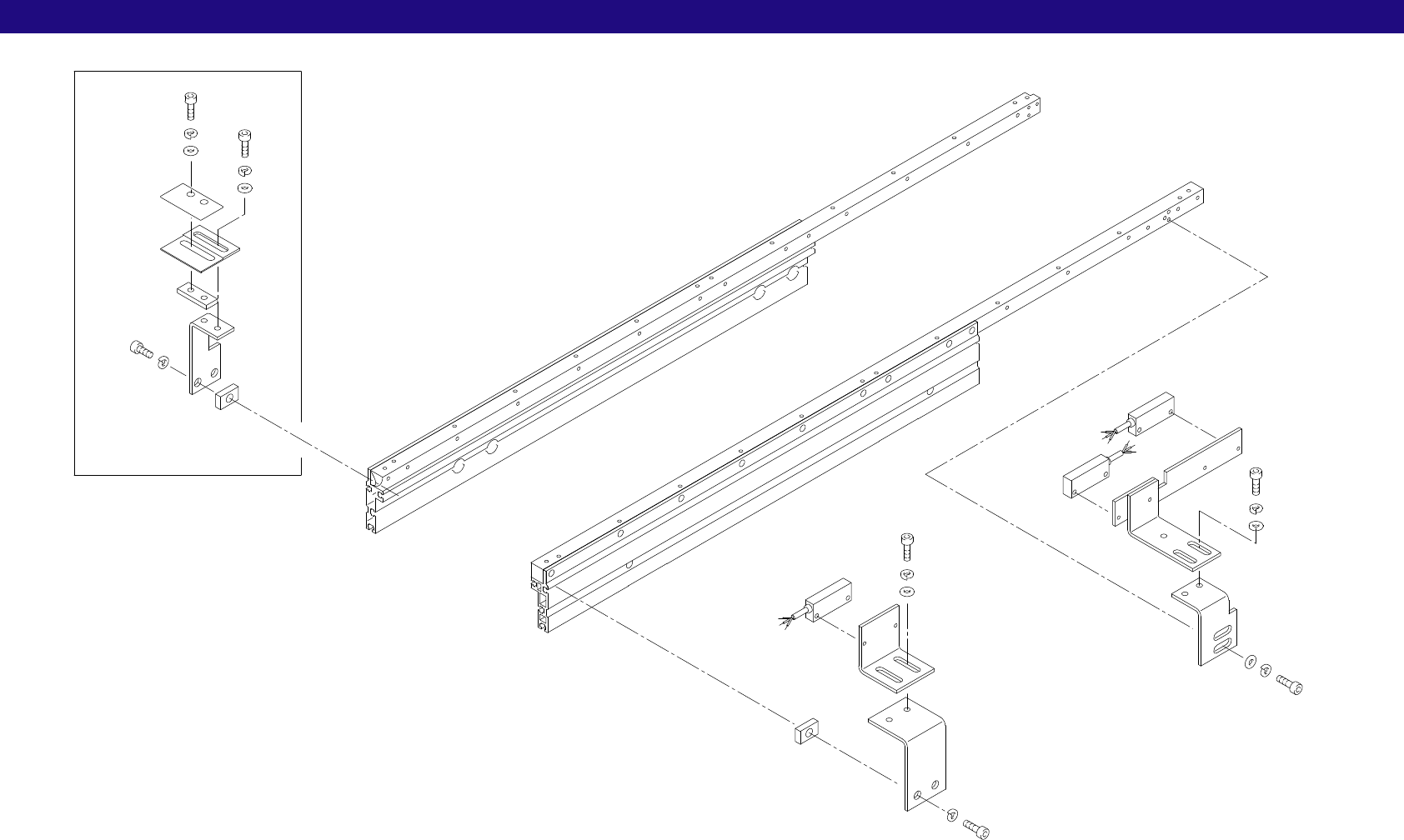

32.インコンベア(逆流れ)(オプション)(WQC)
32.In conveyor(Right-to-left board flow)(Option)(WQC)
HELPS
6
7
8
9
12
13
11
10
5
4
3
2
1
14
18
17
16
15
22
21
20
19
28
27
26
25
24
23
32 31
30
29
x3
32-2
32.インコンベア(逆流れ)(オプション)(WQC)
32.In conveyor(Right-to-left board flow)(Option)(WQC)
32.インコンベア(逆流れ)(オプション) In conveyor(Right-to-left board flow)(Option)(WQC)
CP-642ME PARTS LIST ver05
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L (HELPS)
2W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M (HELPS)
3W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 (HELPS)
4GVC1151 1 DOG ﾄﾞｯｸﾞ (HELPS)
5GVC1160 1 NUT ﾅｯﾄ (HELPS)
6H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L (HELPS)
7W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M (HELPS)
8W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 (HELPS)
9GVC1141 1 DOG ﾄﾞｯｸﾞ (HELPS)
10H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L (HELPS)
11W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M (HELPS)
12MQC5110 1 BKT BKT (HELPS)
13IQC6072 2 NUT ﾅｯﾄ (HELPS)
14S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
15H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L
16W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
17W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
18GVC2182 1 BKT, SENSOR BKT ｾﾝｻ
19H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
20W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
21MQC4092 1 BKT, SENSOR BKT ｾﾝｻ
22IQC6072 2 NUT ﾅｯﾄ
23S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
24S3169A 1 SENSOR ｾﾝｻ EX4-LS30RE
25H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L
26W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
27W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
28MQC5130 1 BKT, SENSOR BKT ｾﾝｻ
29H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
30W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
31W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
32MQC3630 1 BKT, SENSOR BKT ｾﾝｻ ･
