3 5 . アウトコンベア( 正逆流れ) ( オプション) O u t c o n v e y o r ( B o a r d f l o w c h a n g e o v e r m a n u a l ) ( O p t i o n ) ( W Q C ) CP-642ME P ARTS LIST ver05 3 5 - 1 3 5 . アウトコンベア( 正逆流れ) ( オプション) ( W Q C ) 3 5 . O u t c…

100%1 / 162
34-2
34.インコンベア(正逆流れ)(オプション)(WQC)
34.In conveyor(Board flow changeover manual)(Option)(WQC)
34.インコンベア(正逆流れ)(オプション) In conveyor(Board flow changeover manual)(Option)(WQC)
CP-642ME PARTS LIST ver05
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1MQC3581 1 BKT BKT
2MQC3570 1 PLATE ﾌﾟﾚｰﾄ
3MQC3550 1 BKT, SENSOR BKT ｾﾝｻ
4MQC1500 1 BKT BKT
5WQC1010 1 BKT, SENSOR BKT ｾﾝｻ
6WQC1020 1 BKT, SENSOR BKT ｾﾝｻ
7S3122A 3 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
8S3122Z 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3RC4
9K5177A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2.5X14L
10H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
11H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
12H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
13W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
14W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
15W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
16W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
17MQC1480 1 PLATE ﾌﾟﾚｰﾄ
18MQC1490 1 PLATE, RETAINER ﾌﾟﾚｰﾄ 押え
19IQC6062 4 NUT ﾅｯﾄ
20W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
21H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
22H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L ･

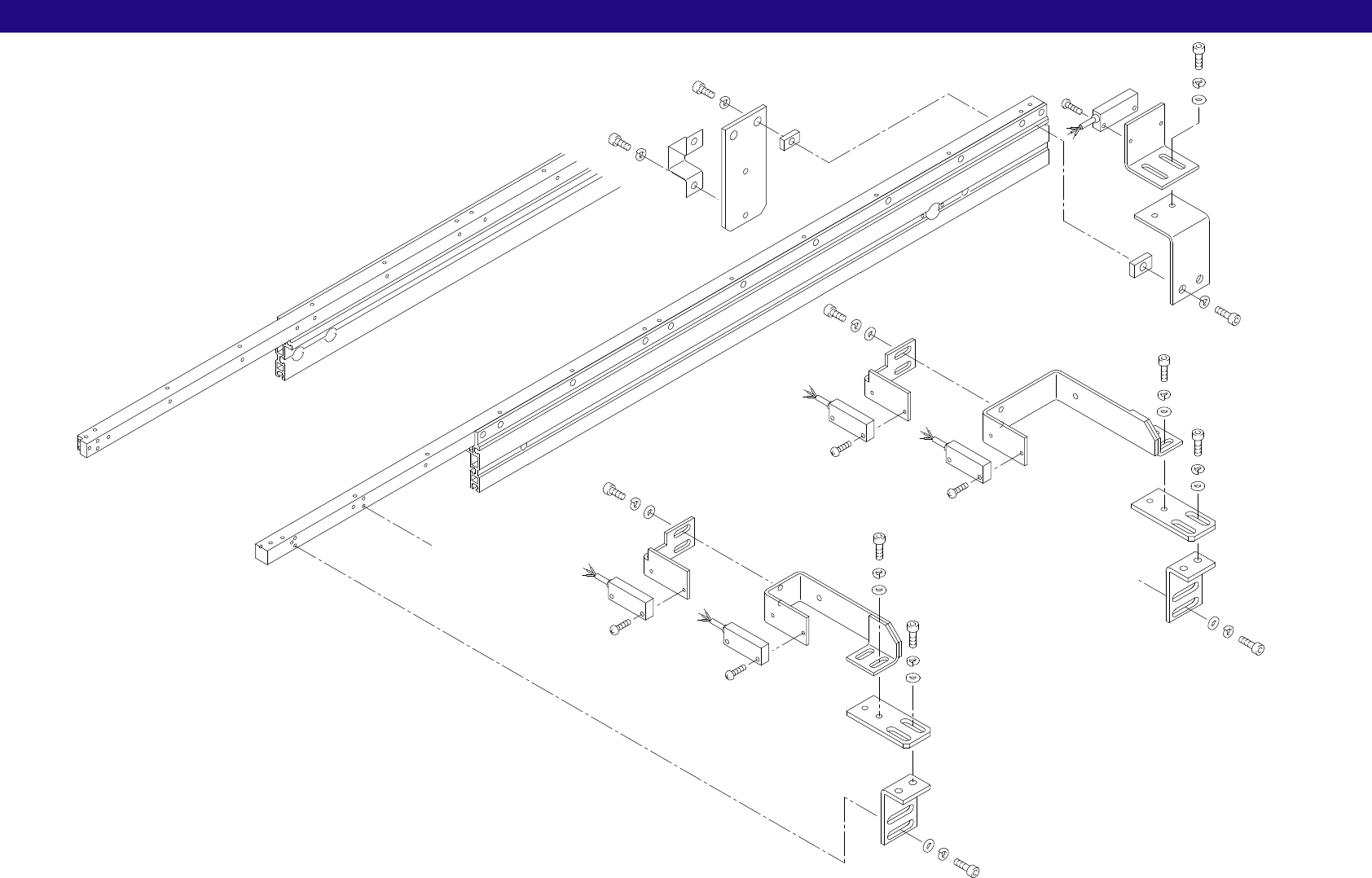

35.アウトコンベア(正逆流れ)(オプション) Out conveyor(Board flow changeover manual)(Option)(WQC)
CP-642ME PARTS LIST ver05
35-1
35.アウトコンベア(正逆流れ)(オプション)(WQC)
35.Out conveyor(Board flow changeover manual)(Option)(WQC)
15
13
26
8
7
15
13
11
14
12
10
5
3
9
6
14
12
10
4
9
8
15
13
26
7
15
13
11
14
12
10
2
3
9
1
14
12
10
3
9
18
16
20
19
17
12
10
24
12
14
3
22
21
23
13
25
9
x3
A
A
35-2
35.アウトコンベア(正逆流れ)(オプション)(WQC)
35.Out conveyor(Board flow changeover manual)(Option)(WQC)
35.アウトコンベア(正逆流れ)(オプション) Out conveyor(Board flow changeover manual)(Option)(WQC)
CP-642ME PARTS LIST ver05
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WQC1030 1 BKT, SENSOR BKT ｾﾝｻ
2WQC1040 1 BKT, SENSOR BKT ｾﾝｻ
3S3122A 4 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
4S3122Z 1 SW, PHOTOELECTRIC SW 光電 EX4-LS30RE
5MQC5020 1 BKT, SENSOR BKT ｾﾝｻ
6MQC5120 1 BKT, SENSOR BKT ｾﾝｻ
7MQC5040 2 PLATE ﾌﾟﾚｰﾄ
8MQC5050 2 BKT BKT
9K5177A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2.5X14L
10H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
11H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
12W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
13W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
14W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
15W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
16MQC1480 1 PLATE ﾌﾟﾚｰﾄ
17MQC1490 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
18IQC6062 2 NUT ﾅｯﾄ
19H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
20W1024A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 6M/M
21MQC4092 1 BKT BKT
22GVC2182 1 BKT, SENSOR BKT ｾﾝｻ
23IQC6072 2 NUT ﾅｯﾄ
24H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
25H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
26H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L ･
