SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50132
4/8

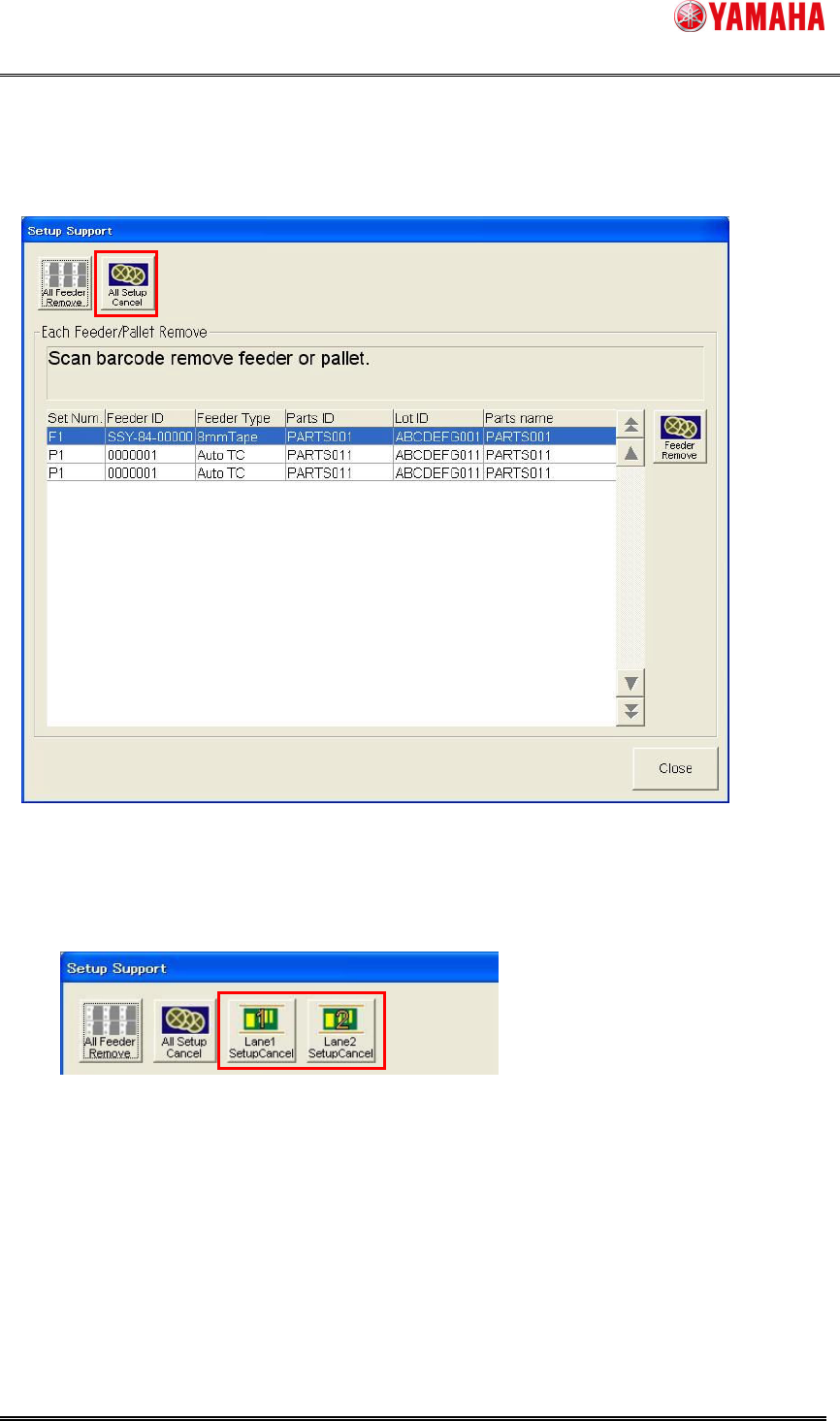

4.2. Setup cancellation start
Click the [All Setup Cancel] button on the [Setup Support] dialog.
[All Setup Cancel] button
For all parts which becomes a target of the Setup Verification, setup cancellation is
performed. *The free parts is targeted for setup cancellation.
When use TYPE-N option with a dual lane machine, the following buttons are displayed.
[Lane1 Setup Cancel] button
For parts that become a target of the Setup Verification used in lane 1, setup
cancellation is performed.
[Lane2 Setup Cancel] button
For parts that become a target of the Setup Verification used in lane 2, setup
cancellation is performed.
*In the case of free parts, it applies to parts placed on the target lane side.
*The button on the target lane which is auto-running becomes invalid.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50132
5/8

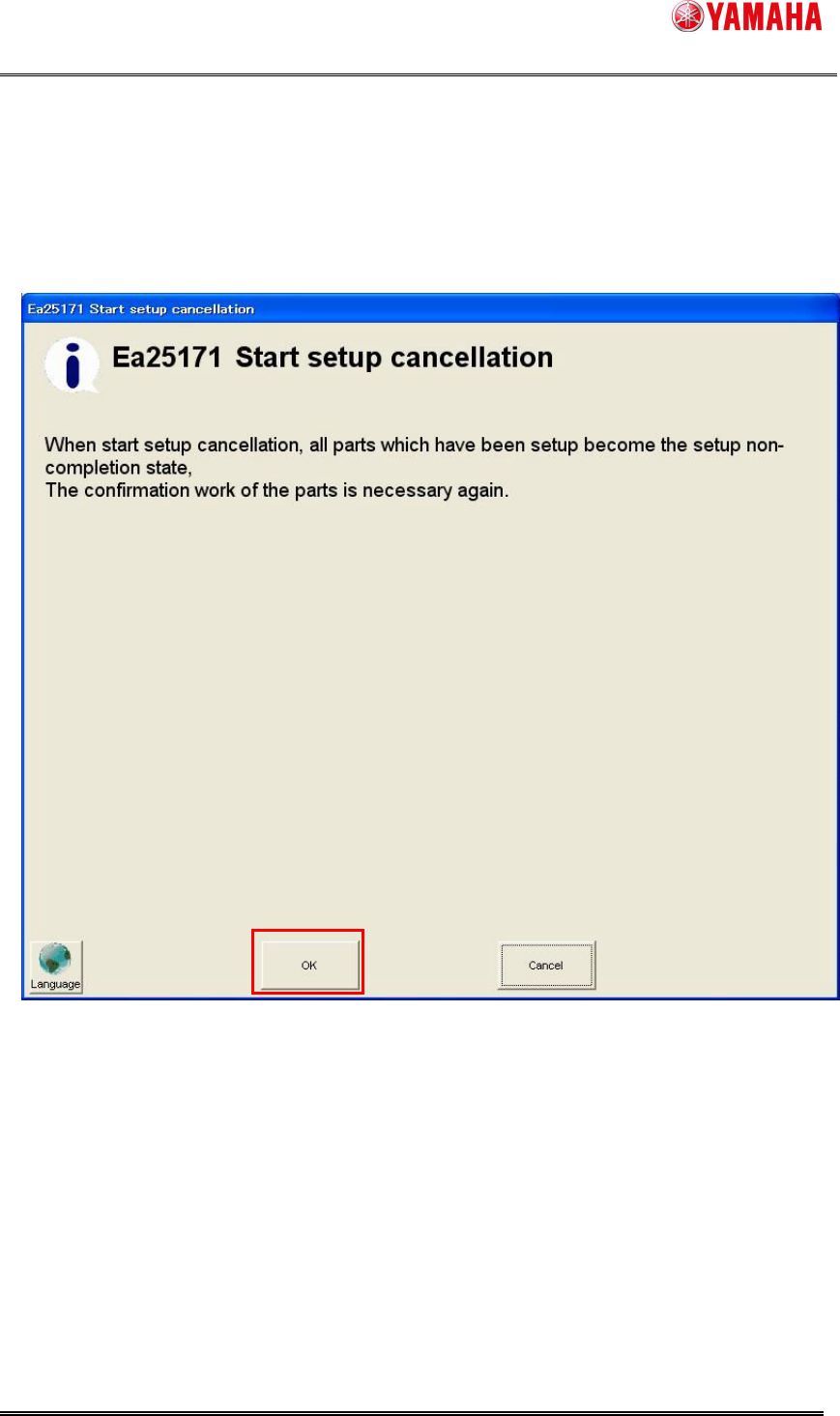

4.3. Confirmation message
"Ea25171 Start setup cancellation" message is displayed when click the [All Setup Cancel]
button.
Setup cancellation is carried out when the [OK] button is clicked.
[OK] button: All setup completion parts on the machine become the incomplete setup
[Cancel] button: Processing is canceled.
When carrying out setup cancellation, "Ea25021 Setup cancellation start" log is output to [MIS]
- [Error log] window.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50132
6/8
4.4. Setup cancellation complete
All complete setup parts on the machine become in the incomplete setup state.
When board data is read, "Verify Request" instructions are displayed.
*In the case of tray parts, "Tray Verify Request" instructions are displayed.
