Installation Manual, Station Software Version 604.01 SP3 07/2008 Edition

5.6 Finish the Installation

5.6.1 Machine files

There are 2 databases in Version 604 of the software, MA-Daten.mdb and MA-Achsen.mdb.

Machine-related configuration, measurement and parameter data is stored in *.XML and *.MA files.

The MA-Daten.mdb database contains all standard data except the standard data for the axes. This data is

stored in the MA-Achsen.mdb database.

Note:

All machine data and the database (see machine data database feature) must be of revision

level 90 (version 90.604.01). Current machine data must not

38 of 46

be replaced by revision levels o

an earlier version, either completely or partially, e.g. revision level 60 (version 60.603.01).

5.6.2 Miscellaneous

• Check the eSW firmware version and download if necessary

• Start the reference run of the machine

• After an upgrade to the 604.xx software version, calibrate the heads of the D1, D2 and D4

machines. The temperature compensation is activated for these machines.

Installation Manual, Station Software Version 604.01 SP3 07/2008 Edition

6 Uninstalling the SIPLACE software

Note:

You must be logged in as administrator to uninstall the software.

→ Open the Start menu and choose Programs Æ SIPLACE Æ SIPLACE Uninstall.

Fig. 6-1: Starting uninstallation (alternative 1)

Or:

→ Open the Start menu and choose Settings Æ Control Panel.

→ Double-click Add/Remove Programs.

Fig. 6-2 Starting uninstallation (alternative 2)

→ Select SIPLACE from the list of installed programs.

→ Click the Change/Remove button.

39 of 46

Installation Manual, Station Software Version 604.01 SP3 07/2008 Edition

The installation program now uninstalls the SIPLACE software including the SIPLACE hotfixes, SIPLACE

Language Pack and SIPLACE Vision.

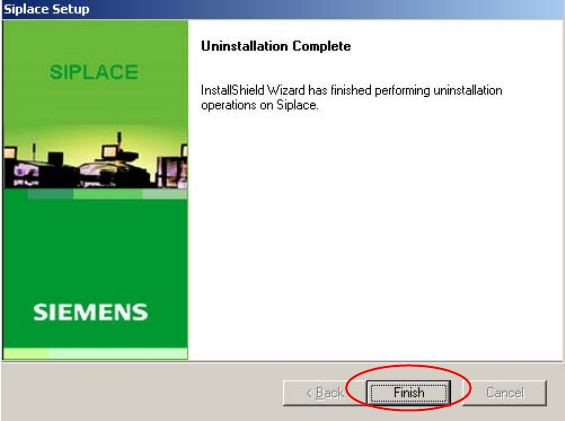

Fig. 6-3: Finalizing uninstallation

→ Click the Finish button.

The SIPLACE software and SIPLACE Vision have now been uninstalled correctly.
