Page SAMSUNG TECHWIN 129 SM411 Conveyor Board Interface (2/5) NO. P ART NO. P ART NAME Q'TY Old No. Sto ck Apply Refere nce 1 AM03-003541A CABLE ASSY -INLINE_IN-OUT_CVIF 1 2 AM03-003542A CABLE ASSY -INLINE_IN-OUT 1 …
Page
SAMSUNG TECHWIN
128
SM411

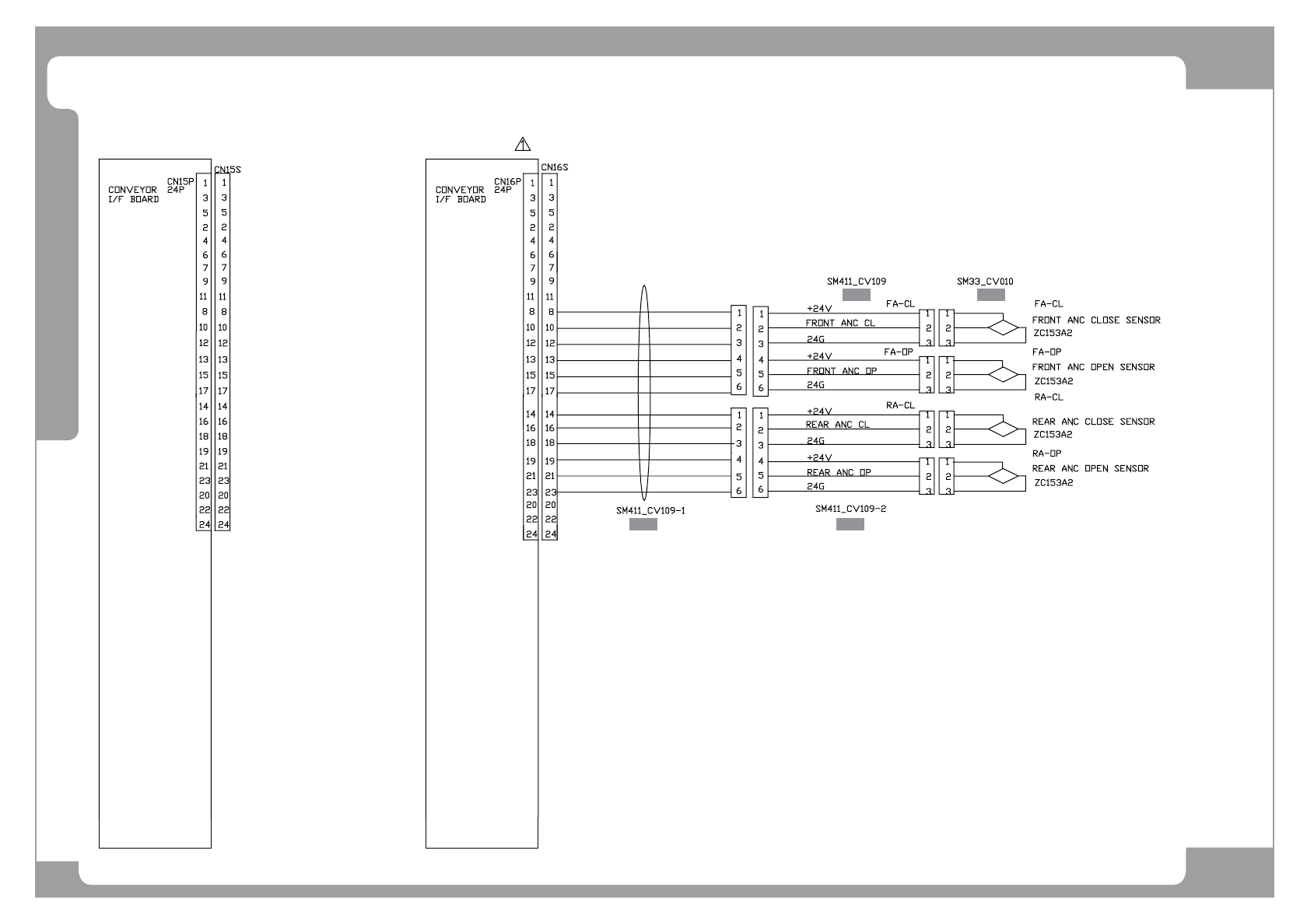

Conveyor Board Interface (2/5)
[4 ]
[5 ]
[2 ]
[3 ]
[1 ]
[6 ]
[7 ]
P
P
P
P
P
[8 ]
Page
SAMSUNG TECHWIN
129
SM411
Conveyor Board Interface (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1
2 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1
3 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1
4 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY 1
5 AM03-004377A CABLE ASSY-TOWER_LAMP_J6R 1
6 AM03-004341A CABLE ASSY-CAN_TW_LAMP_J6R_J11L 1
7 AM03-004379A CABLE ASSY-TOWER_LAMP_J11L 1
8 AM03-004348A CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1
Page
SAMSUNG TECHWIN
130
SM411
Conveyor Board Interface (3/5)
[1 ]
[2 ]
[3 ]
[4 ]
