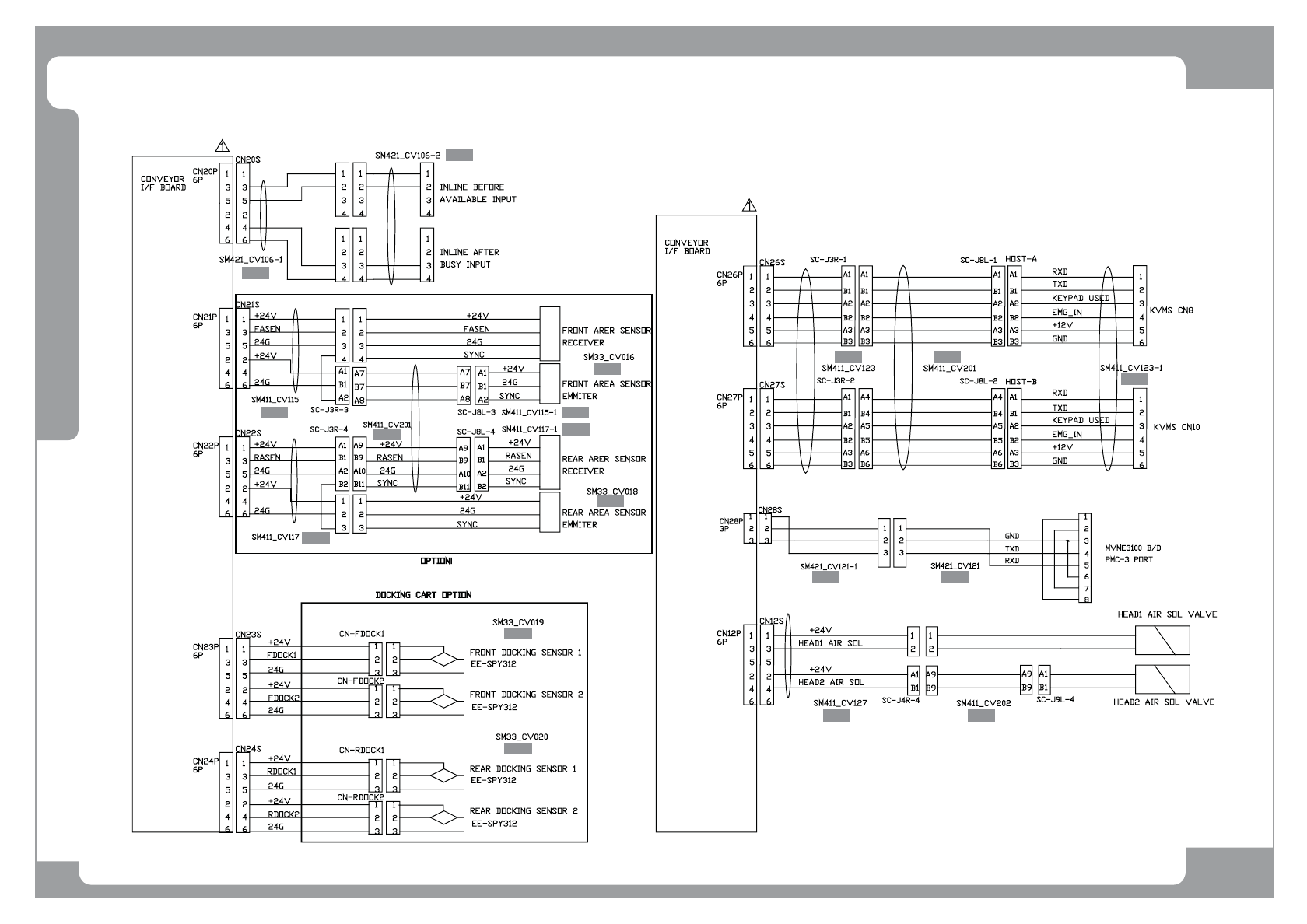

Page SAMSUNG TECHWIN 134 SM411 Conveyor Board Interface (5/5) [1 ] [2 ] [3 ] [4 ] [5 ] [6 ] [8 ] [7 ] [9 ] [ 10] [ 11] [ 12] [ 13] [1 4 ] [ 15] [ 16] [ 17] [ 18]
Page
SAMSUNG TECHWIN
132
SM411
Conveyor Board Interface (4/5)
[1 ]
[2 ]
[3 ]
Page
SAMSUNG TECHWIN
133
SM411
Conveyor Board Interface (4/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90831136B CONV_SW_INPUT1_CABLE_ASSY SM33-CV013 1
2 J90831137B CONV_SW_INPUT2_CABLE_ASSY SM33-CV014 1
3 AM03-004411A CABLE ASSY-CRASH_SENSOR_IF 1
Page
SAMSUNG TECHWIN
134
SM411
Conveyor Board Interface (5/5)
[1 ]
[2 ]
[3 ]
[4 ]
[5 ]
[6 ]
[8 ]
[7 ]
[9 ]
[10]
[11]
[12]
[13]
[1 4 ]
[15] [16]
[17] [18]
