SIPLACE Material Tower
Technical data
Configuration
Specification
Standard configuration
Machine type Stand-alone
Tape detection Diameter - automatic
Width detection
Weight detection
Automatic barcode detection
Control PC, keyboard and LCD screen
Windows version Windows 8.1 or Windows 10
Software SIPLACE Material Tower software, simple integration into SIPLACE Mate-
rial Manager
Job planning software
MSL tracking, in conjunction with SIPLACE Material Manager
Operator language adjustable (English, German)
Use group access rights
Ambient temperature Temperature:
Relative humidity:
Noise level:
15°C - 30°C
10% - 60%
50dB
Other items included Power connection cable Power connection cable
SIPLACE Material Tower - Small SIPLACE Material Tower - Large
Power supply 100 - 240 VAC, 50-60 Hz 100 - 240 VAC, 50-60 Hz
Power consumption 0.4 kW 0.4 kW
Required circuit breaker 10 A 10 A
Storage
4"-7" reels:
11"-15" reels:
Max. weight:
8-72 mm tapes
8-72 mm tapes
3.5 kg
8-72 mm tapes
8-72 mm tapes
3.5 kg
Maximum capacity
a
For 4"-7" reels
A combination of 4" -
15" reels
612 reels
320 x 4"-7" and 121 x 11"-15" reels
932 reels
480 x 4"-7" and 121 x 11"-15" reels
Stock removal time 9-11 seconds per reel 9-11 seconds per reel
a) For 8 mm tapes
8
SIPLACE Material Tower
Technical data
Compressed air quality (air dryer
a
)
a) Option: The drying unit is used to maintain the humidity in the SIPLACE Material Tower and may not
be used as a drying chamber.
Compressed air 6 bar - 10 bar
Min. compressed air flow
With flow limiter
Without flow limiter
12 m
3
/h at 6 bar
18 m
3
/h at 6 bar
Typical compressed air consumption
With flow limiter
Without flow limiter
Nominal consumption
b
b) Depends on work load and environment.
12 m
3
/h at 6 bar
18 m
3
/h at 6 bar
Approx.6 m
3
/h at 6 bar
Required compressed air quality The membrane dryer has an integrated nano filter. The
compressed air flows through this before entering the
membrane dryer.
Air connection diameter 8 mm
Particulate class 1 Particulate quantity per m
3
compressed air:
0.1 - 0.5 µm (= particle size): max. 20,000 particles
0.5 - 1 µmm: max. 400
1 - 5 µmm: max. 10
Water class 2 Required pressure dew point at -40°C or lower.
Oil class1 Oil quantity per m³ compressed air max. 0.01 mg
Applies to liquid oil, oil aerosol, oil vapor
PC requirements
Processor Dual Core i3 Processor, 64 bit compatible
INTEL or AMD
Memory 2 gigabyte
Recommended: 4 gigabyte
Graphics card DirectX 9.0 supported
No high-end graphics speed needed.
Recommended: Do not use Nvidia, GUI artefacts could
occur.
Network card 2 network cards required (min. GB link):
1x connection to SIPLACE Material Tower
1x network connection
Hard disk 200 gigabyte, SSD recommended
Operating system Minimum: Windows 7, 64 bit version
Recommended: Windows 8.1, 64 bit version
9
SIPLACE Material Tower
Dimensions and packaging

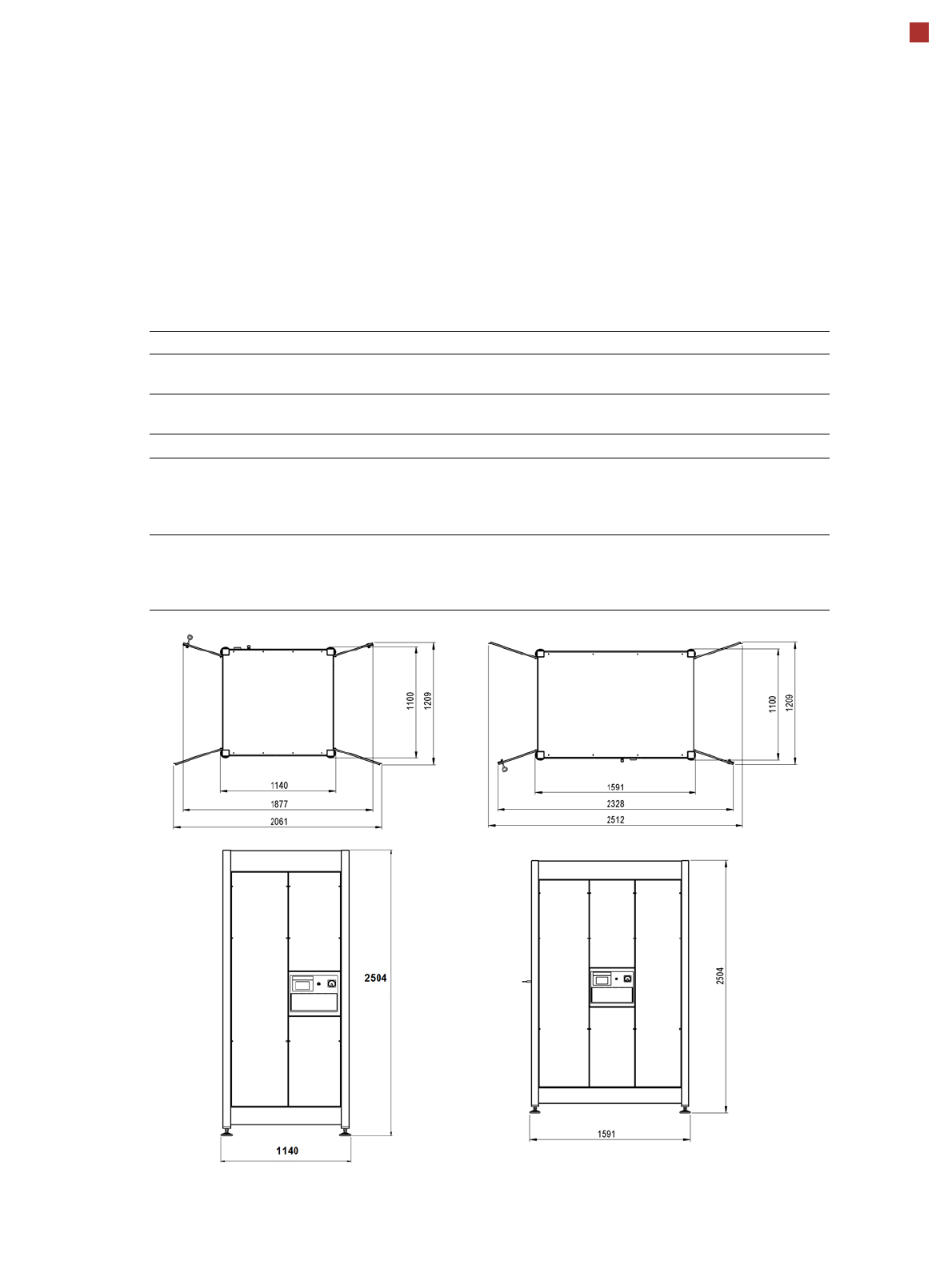

SIPLACE Material Tower - Small SIPLACE Material Tower - Large
Dimensions
Length x depth x height 1140 mm x 1110 mm x 2504 mm 1591 mm x 1100 mm x 2504 mm
Weight
Without tape reels 500 kg 700 kg
Packaging
Length x width x height
Wooden crate/card-
board box
Total packaging
1300 mm x 1300 mm x 2550 mm
1348 mm x 1469 mm x 2762 mm
1750 mm x 1300 mm x 2550 mm
1798 mm x 1465 mm x 2753 mm
Weight of packaging
Wooden crate/card-
board box
Total packaging
200 kg
290 kg
250 kg
350 kg
