9 SIPLACE Material Tower Dimensions and packaging SIPLACE Material T ower - Small S IPLACE Material T ower - Large Dimensions Length x depth x height 1 140 mm x 1 1 10 mm x 2504 mm 1591 mm x 1 100 mm x 2504 mm Weight Wit…
8
SIPLACE Material Tower
Technical data
Compressed air quality (air dryer
a
)
a) Option: The drying unit is used to maintain the humidity in the SIPLACE Material Tower and may not
be used as a drying chamber.
Compressed air 6 bar - 10 bar
Min. compressed air flow
With flow limiter
Without flow limiter
12 m
3
/h at 6 bar
18 m
3
/h at 6 bar
Typical compressed air consumption
With flow limiter
Without flow limiter
Nominal consumption
b
b) Depends on work load and environment.
12 m
3
/h at 6 bar
18 m
3
/h at 6 bar
Approx.6 m
3
/h at 6 bar
Required compressed air quality The membrane dryer has an integrated nano filter. The
compressed air flows through this before entering the
membrane dryer.
Air connection diameter 8 mm
Particulate class 1 Particulate quantity per m
3
compressed air:
0.1 - 0.5 µm (= particle size): max. 20,000 particles
0.5 - 1 µmm: max. 400
1 - 5 µmm: max. 10
Water class 2 Required pressure dew point at -40°C or lower.
Oil class1 Oil quantity per m³ compressed air max. 0.01 mg
Applies to liquid oil, oil aerosol, oil vapor
PC requirements
Processor Dual Core i3 Processor, 64 bit compatible
INTEL or AMD
Memory 2 gigabyte
Recommended: 4 gigabyte
Graphics card DirectX 9.0 supported
No high-end graphics speed needed.
Recommended: Do not use Nvidia, GUI artefacts could
occur.
Network card 2 network cards required (min. GB link):
1x connection to SIPLACE Material Tower
1x network connection
Hard disk 200 gigabyte, SSD recommended
Operating system Minimum: Windows 7, 64 bit version
Recommended: Windows 8.1, 64 bit version
9
SIPLACE Material Tower
Dimensions and packaging
SIPLACE Material Tower - Small SIPLACE Material Tower - Large
Dimensions
Length x depth x height 1140 mm x 1110 mm x 2504 mm 1591 mm x 1100 mm x 2504 mm
Weight
Without tape reels 500 kg 700 kg
Packaging
Length x width x height
Wooden crate/card-
board box
Total packaging
1300 mm x 1300 mm x 2550 mm
1348 mm x 1469 mm x 2762 mm
1750 mm x 1300 mm x 2550 mm
1798 mm x 1465 mm x 2753 mm
Weight of packaging
Wooden crate/card-
board box
Total packaging
200 kg
290 kg
250 kg
350 kg
10
SIPLACE Material Tower

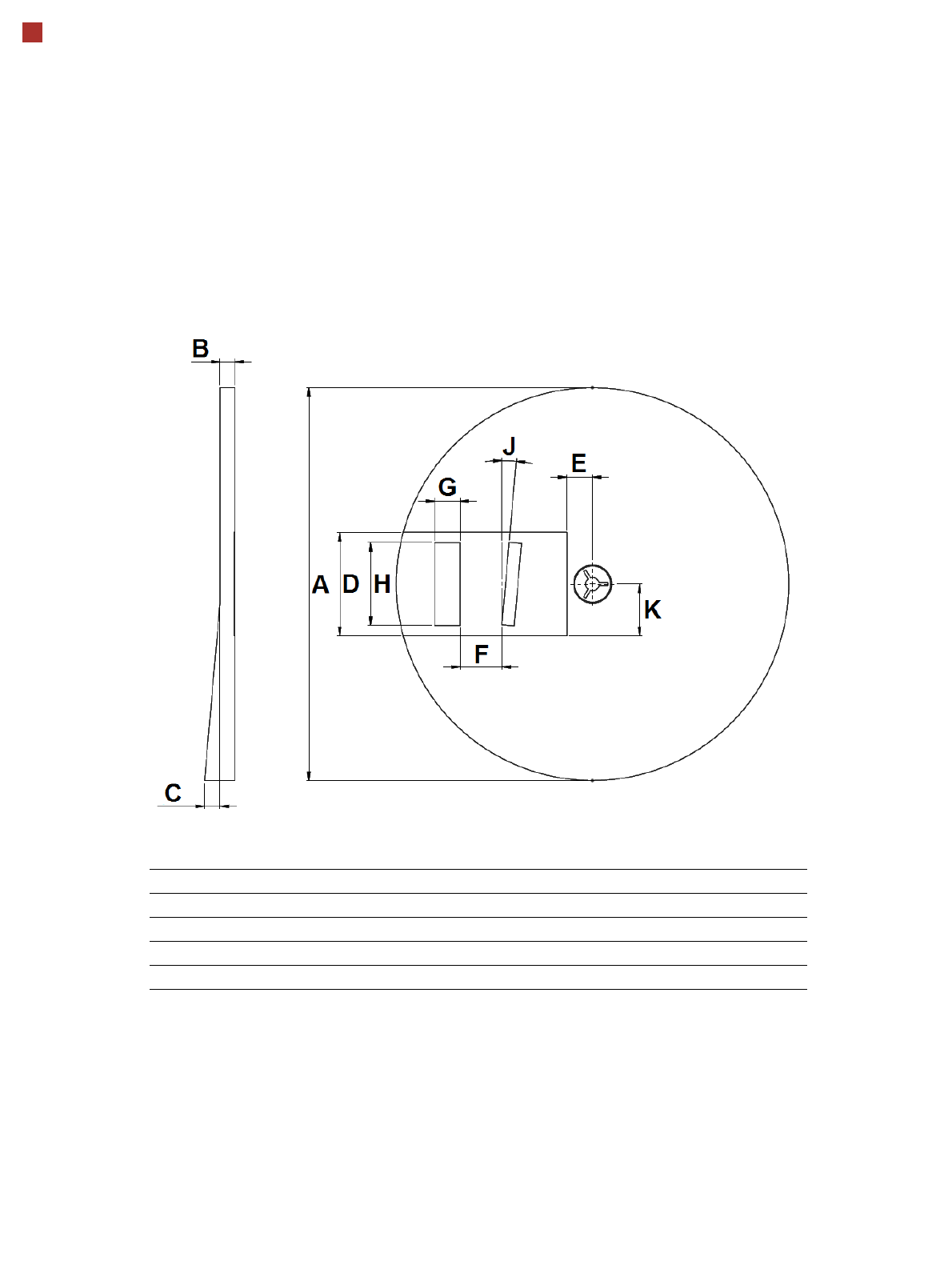

Tape reels - Specification
A Nominal diameter F Distance between two barcode labels (mm)
B Reel width (mm) G Barcode height (mm)
C Reel bending (mm) H Barcode label width (mm)
D Barcode label area (mm) J Barcode label twist (°)
E Barcode label area (mm)
