InJet
®
388 CRRD
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The InJet 388 series cleaning systems represent
unique vertical Spray-In-Air technology developed
and manufactured by DCT.
The vertically installed Spray-In-Air device minimizes the
shadowing eff ect commonly seen in horizontal cleaners,
and maximizes the effi ciency of the cleaning process as
the cleaning  uid is sprayed directly onto the cleaned
component.
InJet
®
388 CRRD “Combo” including 100% closed loop with
processes of cleaning, pre-rinsing,  nal rinsing, and drying
technologies.
All of the processes are fully automated, and take place
in one process chamber.
The InJet
®
388 CRRD “Combo” is developed primarily for
precision PCBA.
The cleaning system can also be used for high-quality
removal of solder pastes and SMT adhesives from
stencils, PumPrints, squeegees and misprints, or the
aforementioned cleaning applications, along with PCBA.
The machine can also be used for the removal of cured
conformal coatings.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
InJet
®
388 CRRD
TECHNICAL DATA SHEET
3
www.dct.cleaning
D
R
PRE-RINSING
PRE-RINSING
FILTER
RINSING
FILTER
CLEANING
FILTER
R
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 18 min. 27
PumPrint
40 – 55°C 104 – 131 °F 18 min. 27
Conformal coating
40 – 55°C 104 – 131 °F 60 min. 192 * /16 **
PCB
35 – 55°C 95 – 131 °F 30 min. 384 *
4 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
C
CLEANING
PRE–RINSING
RINSING
DRYING
R
D
R
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
388 CRRD
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1410 x 1390 x 2400mm 55.5 x 54,7 x 94,4 in
Weight 560 Kg 1235 lbs
Ø energy consumption per cycle 1,65 kWh 1.65 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01 – 0.08 gal
Compressed air consumption per cycle 900 l / cycle 237.75 gal / cycle
Max. dimensions of the cleaned parts 190 x 800 x 760 mm 7,48 x 31,5 x 29,92 in
Max. dimensions of the cleaned part
with used air knife
100 x 800 x 760 mm* 3,94 x 31,5 x 29,92 in
Exchangeable mechanical  lter of cleaning
and rinsing  uid
5 – 200 μm 5 – 200 μm
Spraying pressure / 45°C / 113°F 2,2 Bar** 31.9 PSI
Range pressure – cleaning / 45°C / 113°F 0,9 – 2,8 Bar** 13 – 40,6 PSI
Range pressure – pre rinse / 45°C / 113°F 0,0 – 1,5 Bar** 0,0 – 21,76 PSI
Range pressure – rinse / 45°C / 113°F 0,0 – 0,5 Bar** 0,0 – 7,25 PSI
Cleaning  uid  ow rate 200 l / min 33 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 60 l 15.9 gal
* Air knife is optional accessory
** Values may vary depending on equipment( lters, pumps)

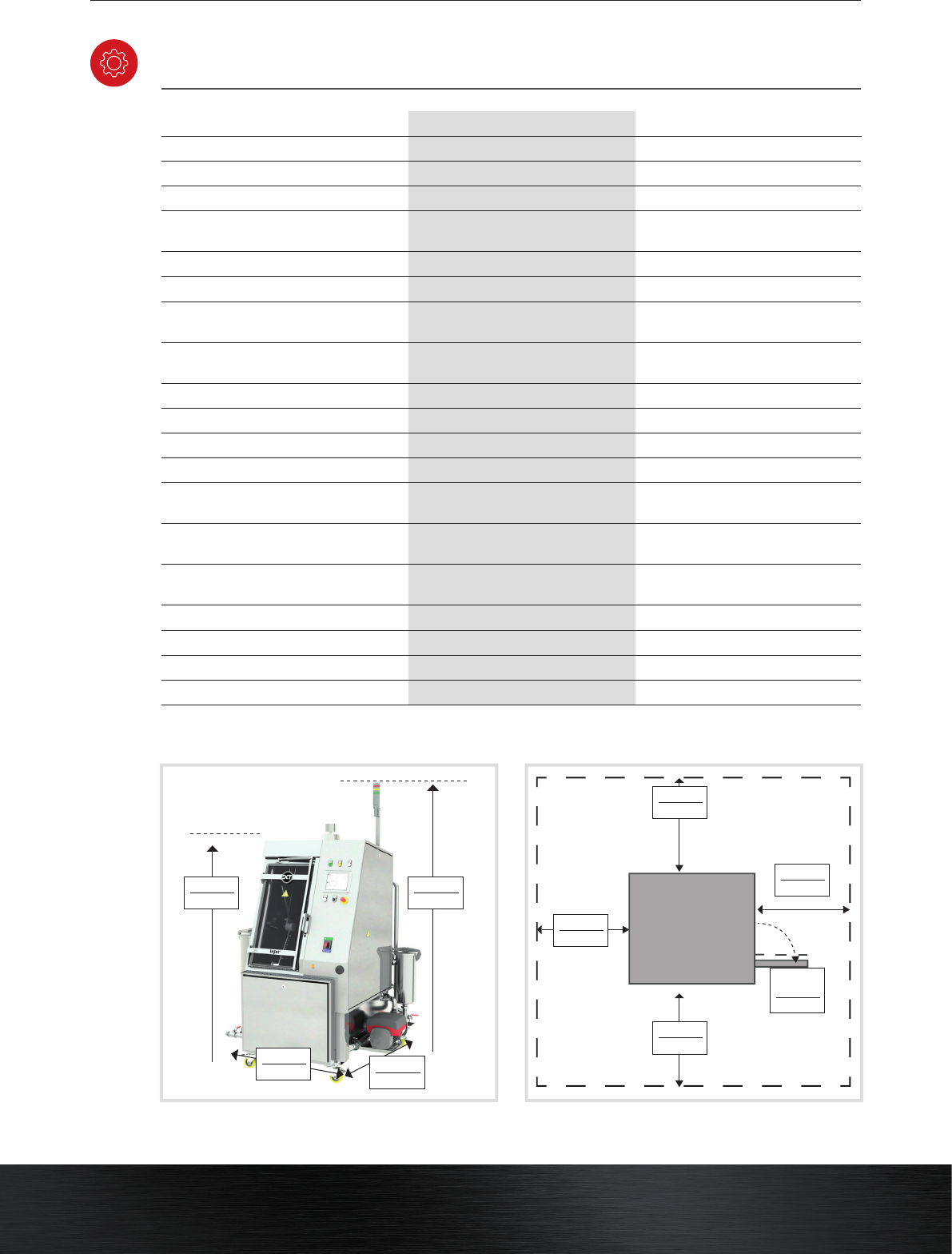

TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
2400 mm
94.4 in
1850 mm
72.9 in
1390 mm
58.7 in
1410 mm
55.5 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
metric units imperial units
