InJet ® 388 CRRD TECHNICAL DATA SHEET 4 www.dct.cleaning Dimensions (w x l x h) 1410 x 1390 x 2400mm 55.5 x 54,7 x 94,4 in Weight 560 Kg 1235 lbs Ø energy consumption per cycle 1,65 kWh 1.65 kWh Cleaning and rinsing ui…
InJet
®
388 CRRD
TECHNICAL DATA SHEET
3
www.dct.cleaning
D
R
PRE-RINSING
PRE-RINSING
FILTER
RINSING
FILTER
CLEANING
FILTER
C
R
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 18 min. 27
PumPrint
40 – 55°C 104 – 131 °F 18 min. 27
Conformal coating
40 – 55°C 104 – 131 °F 60 min. 192 * /16 **
PCB
35 – 55°C 95 – 131 °F 30 min. 384 *
4 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
C
CLEANING
PRE–RINSING
RINSING
DRYING
R
D
R
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
388 CRRD
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1410 x 1390 x 2400mm 55.5 x 54,7 x 94,4 in
Weight 560 Kg 1235 lbs
Ø energy consumption per cycle 1,65 kWh 1.65 kWh
Cleaning and rinsing uid consumption
per cycle
0,05 – 0,3 l 0.01 – 0.08 gal
Compressed air consumption per cycle 900 l / cycle 237.75 gal / cycle
Max. dimensions of the cleaned parts 190 x 800 x 760 mm 7,48 x 31,5 x 29,92 in
Max. dimensions of the cleaned part
with used air knife
100 x 800 x 760 mm* 3,94 x 31,5 x 29,92 in
Exchangeable mechanical lter of cleaning
and rinsing uid
5 – 200 μm 5 – 200 μm
Spraying pressure / 45°C / 113°F 2,2 Bar** 31.9 PSI
Range pressure – cleaning / 45°C / 113°F 0,9 – 2,8 Bar** 13 – 40,6 PSI
Range pressure – pre rinse / 45°C / 113°F 0,0 – 1,5 Bar** 0,0 – 21,76 PSI
Range pressure – rinse / 45°C / 113°F 0,0 – 0,5 Bar** 0,0 – 7,25 PSI
Cleaning uid ow rate 200 l / min 33 gal / min
Temperature range setting of the cleaning
and rinsing uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 60 l 15.9 gal
* Air knife is optional accessory
** Values may vary depending on equipment( lters, pumps)
TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
2400 mm
94.4 in
1850 mm
72.9 in
1390 mm
58.7 in
1410 mm
55.5 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
metric units imperial units
InJet
®
388 CRRD
TECHNICAL DATA SHEET
5
www.dct.cleaning
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 13 kW 13 kW
Compressed air connection Pipe Ø 6 mm Pipe ID 0.24 in
Recommended working pressure 4,5 – 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter Ø 100 mm ID 3.94 in
Exhaust pipe capacity 380 m
3
/h 13400 ft
3
/h
Minimum liquid for rst run 3 x 50 l 3 x 13.2 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1

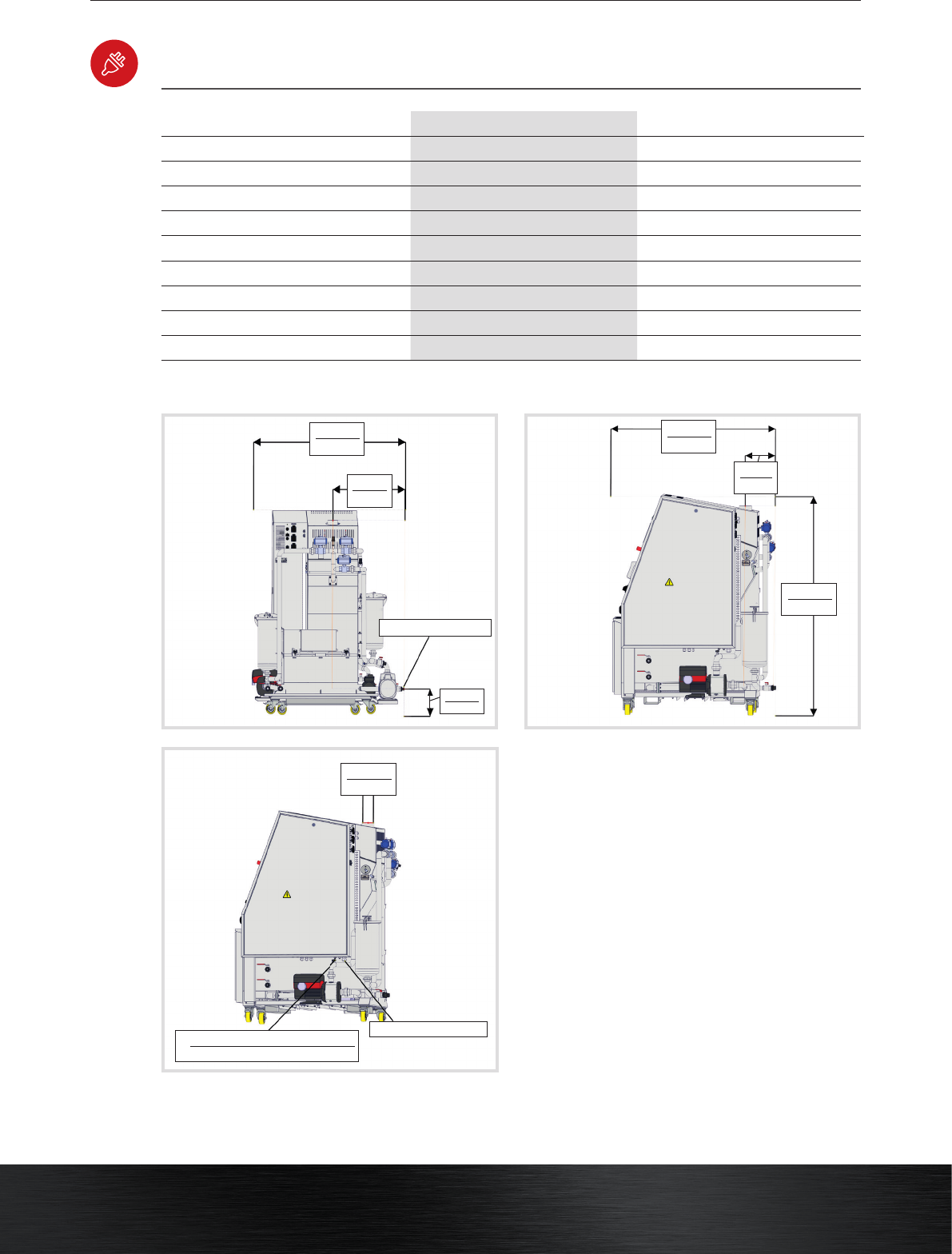

INSTALLATION REQUIREMENTS
BACK
VIEW
RIGHT
VIEW
RIGHT
VIEW
1600 mm
63 in
Ø 100 mm
ID 3.94 in
1390 mm
54.7 in
1850 mm
72.8 in
760 mm
29.9 in
discharge of the fluids G 1“
input el. power 400/230 V
input air pressure Ø 10 mm, Ø 6 mm
input air pressure ID 0.39 in, ID 0.24 in
245 mm
9.65 in
250 mm
9.84 in
metric units imperial units
