KKH 4 S M S 02 Plug and so cket connection Check valve Sleeve lock mechanism One-touch c onnection and r elease Socket: Bui lt-in check val ve (standard) ——— Body size 1/8 1/4 Plug KK3P-01MS KK4P-02MS Socket KKH3S-01MS K…

100%1 / 18

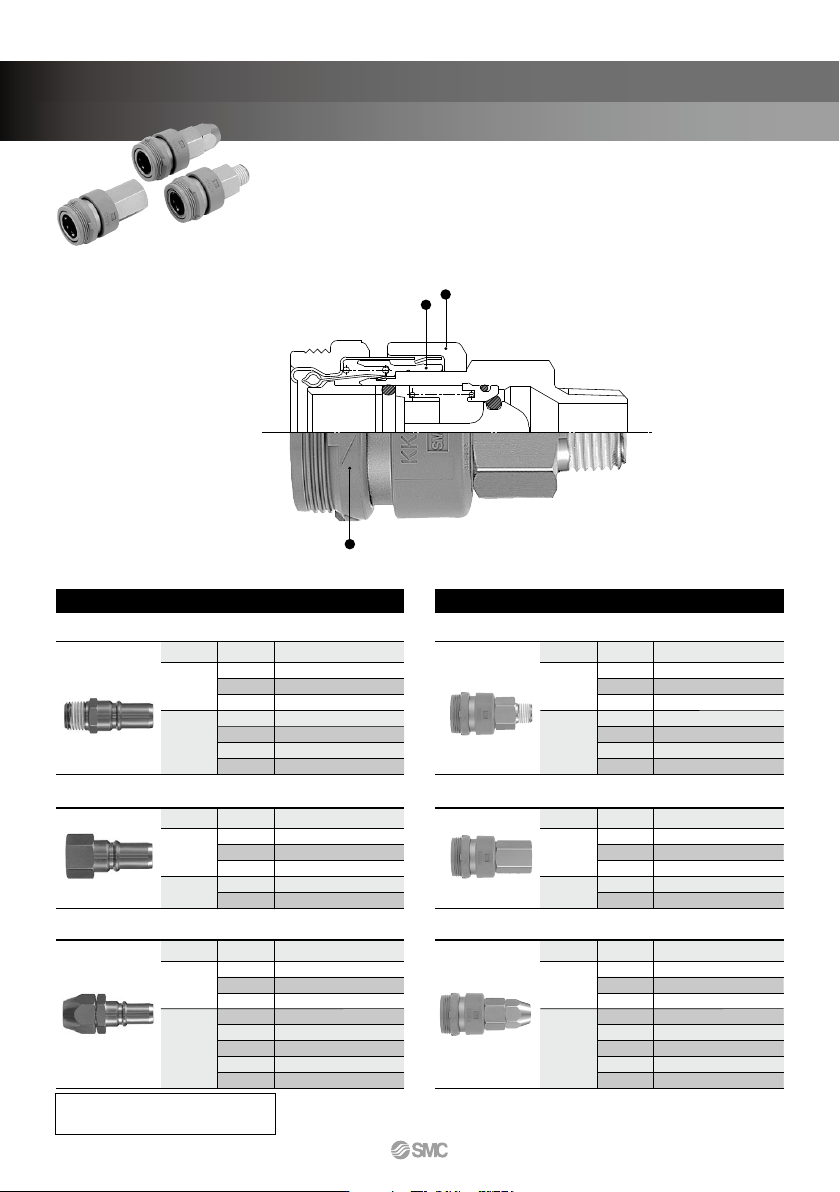

KKH Series
S Couplers
Same effective sectional area
as that of KK series.
Cover ring
(Super high impact PBT)
Spacer
(High impact PBT)
Sleeve cover
(Rubber)
Able to absorb drop impact
(equivalent to impact energy of 0.5 J).
The pulling strength for the plugs and sockets has been
improved. Twice as strong as the current models.
Male thread type
1/8
1/4
KK3P-01MS
-02MS
-03MS
KK4P-01MS
-02MS
-03MS
-04MS
Part no.Body size
Connection
port size
Plug (P) Socket (S)
1/8
1/4
KK3P-50N
-60N
-65N
KK4P-50N
-60N
-65N
-80N
-85N
Part no.Body size
Female thread type
1/8
1/4
KK3P-01F
-02F
-03F
KK4P-02F
-03F
Part no.Body size
Connection
port size
Nut fitting type (for fiber reinforced urethane hose)
Applicable hose
I.D./O.D. mm
Male thread type
1/8
1/4
KKH3S-01MS
-02MS
-03MS
KKH4S-01MS
-02MS
-03MS
-04MS
Part no.Body size
Connection
port size
1/8
1/4
KKH3S-50N
-60N
-65N
KKH4S-50N
-60N
-65N
-80N
-85N
Part no.Body size
Female thread type
1/8
1/4
KKH3S-01F
-02F
-03F
KKH4S-02F
-03F
Part no.Body size
Connection
port size
Nut fitting type (for fiber reinforced urethane hose)
Applicable hose
I.D./O.D. mm
Rc 1/8
Rc 1/4
Rc 3/8
Rc 1/4
Rc 3/8
Rc 1/8
Rc 1/4
Rc 3/8
Rc 1/4
Rc 3/8
R 1/8
R 1/4
R 3/8
R 1/8
R 1/4
R 3/8
R 1/2
R 1/8
R 1/4
R 3/8
R 1/8
R 1/4
R 3/8
R 1/2
5/8
6/9
6.5/10
5/8
6/9
6.5/10
8/12
8.5/12.5
5/8
6/9
6.5/10
5/8
6/9
6.5/10
8/12
8.5/12.5
KKH series are only available as sockets.
KK series should be used as plugs.
224

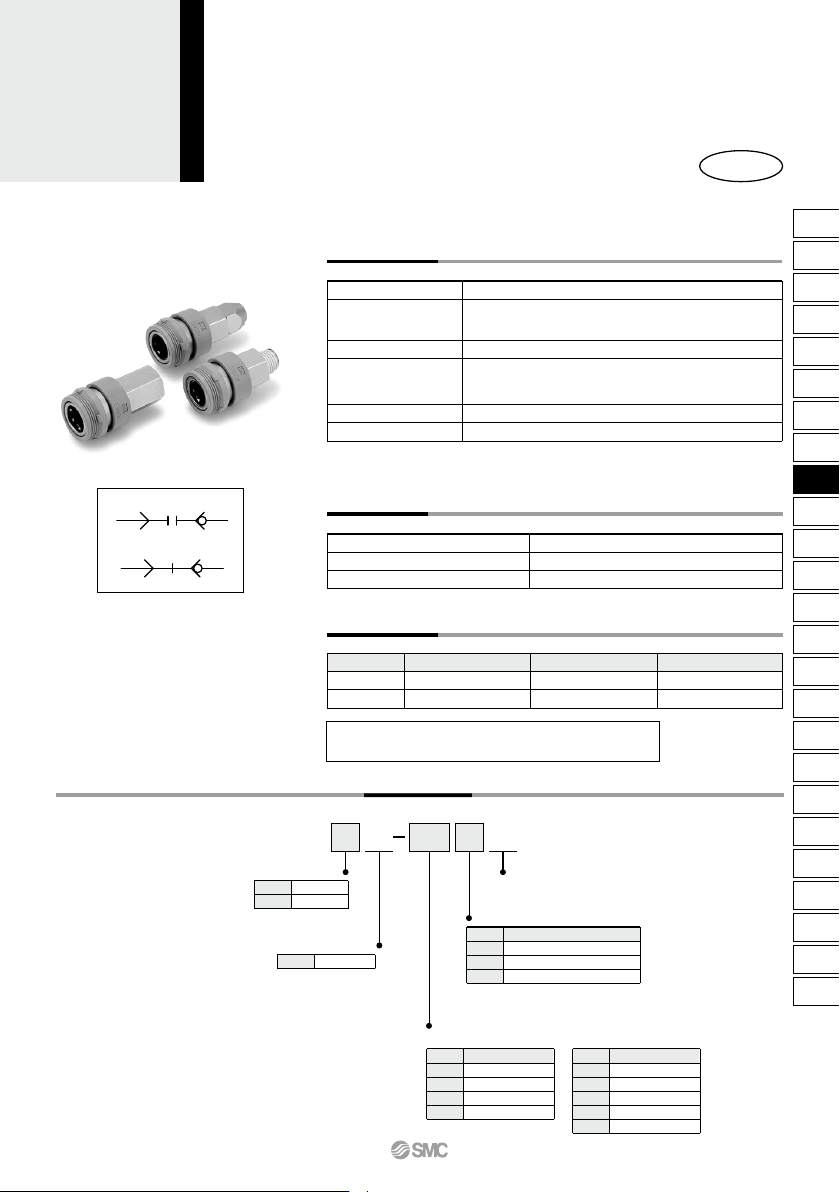

KKH 4 S M S02
Plug and socket connection
Check valve
Sleeve lock mechanism
One-touch connection and release
Socket: Built-in check valve (standard)
———
Body size
1/8
1/4
Plug
KK3P-01MS
KK4P-02MS
Socket
KKH3S-01MS
KKH4S-02MS
Effective area mm
2
20
39
Symbol
Single plug Single socket
Connected plug and socket
Performance
Effective Area
How to Order
The flow rate characteristics are the same as those of KK series.
Please refer to page 218.
Air, Water
Note 2)
KKH3: –90 kPa to 1 MPa
KKH4: 0 to 1 MPa
1.5 MPa
Air: –5 to 60°C
Water: 5 to 40°C
(No freezing)
Electroless nickel plated (copper-free and fluorine-free application), With male thread sealant
KK series plug
Specifications
Fluid
Operating
pressure range
Proof pressure
Ambient and
fluid temperature
Plating, Sealant
Connection plug
Note 1)
Body size
Socket
S
Socket/Plug designation
1/8
1/4
3
4
Connection port size
R, Rc 1/8
R, Rc 1/4
R, Rc 3/8
R, Rc 1/2
Male/Female thread type
Symbol
01
02
03
04
Hose I.D./O.D. mm
5/8
6/9
6.5/10
8/12
8.5/12.5
Nut fitting type
Symbol
50
60
65
80
85
Type
Male thread
Female thread
With nut fitting
Symbol
M
F
N
Piping port size variation
Connection type
With sealant (male thread)
KKH Series
RoHS
S Couplers
For details on body size and port size
variation combinations for each model,
refer to the charts on the Dimensions page.
Note 1)
Do not use the S couplers with a leak tester or for vacuum retention because they are not guaranteed for zero leakage.
Note 2) Deionized water is not recommended for use as it may affect the material used in the fittings. In addition,
it is known to degrade the water quality.
225
KQ2
KQB2
KS
KX
KM
KF
M
H/DL
L/LL
KC
KK
KK130
DM
KDM
KB
KR
KA
KQG2
KG
KFG2
MS
KKA
KP
LQ
MQR
T
IDK
KK
B
Body
size
Weight
g
Effective
area
mm
2
L1
Min.
bore
size
1/8
1/4
14
17
19
22
R 1/8
R 1/4
R 3/8
R 1/8
R 1/4
R 3/8
R 1/2
20.2
28.0
L2
When
connected
36.0
34.0
34.5
50.1
48.7
47.2
45.4
6.0
9.0
9.0
6.0
9.0
11.0
13.0
20.4
21.1
22.9
38.9
40.4
42.7
20.3
19.4
27.7
48.7
45.3
52.1
62.4
33.5
31.5
32.2
46.4
45.0
43.5
41.7
39.1
39.5
40.1
53.2
54.2
52.6
52.5
36.6
37.0
37.6
49.5
50.5
48.9
48.8
Model
KKH3S-01MS
-02MS
-03MS
KKH4S-01MS
-02MS
-03MS
-04MS
A1
∗
A
2
∗
When
connected
(mm)
H
Width
across flats
T
Connection
port size
øD
Male thread type
Body
size
Weight
g
Effective
area
mm
2
L1
Min.
bore
size
1/8
1/4
Rc 1/8
Rc 1/4
Rc 3/8
Rc 1/4
Rc 3/8
36.0
40.1
41.9
50.4
51.1
38.5
42.4
44.3
54.1
54.8
14
17
19
19
20.2
28.0
L2
When
connected
8.2
10.9
14.4
20.6
21.1
39.6
42.7
23.8
33.1
37.1
58.1
47.4
Model
KKH3S-01F
-02F
-03F
KKH4S-02F
-03F
(mm)
H
Width
across flats
T
Connection
port size
øD
Female thread type
Body
size
Weight
g
Effective
area
mm
2
L1
Min.
bore
size
1/8
1/4
5/8
6/9
6.5/10
5/8
6/9
6.5/10
8/12
8.5/12.5
14
17
19
14
17
14
17
19
M
20.2
28.0
L2
When
connected
4.5
5.4
5.9
4.5
5.4
5.9
7.4
7.8
42.6
44.4
54.1
56.8
55.4
45.1
46.9
57.8
60.5
59.1
13.7
16.5
13.7
16.5
17.4
12.2
18.3
19.2
12.2
20.4
24.1
35.1
36.6
32.3
48.9
46.6
57.0
70.5
68.0
69.7
72.3
Model
KKH3S-50N
-60N
-65N
KKH4S-50N
-60N
-65N
-80N
-85N
(mm)
H1
Width
across flats
H2
Width
across flats
øD
Applicable
hose
I.D./O.D.
Nut fitting type (for fiber reinforced urethane hose)
∗ Reference dimension for R threads after installation.

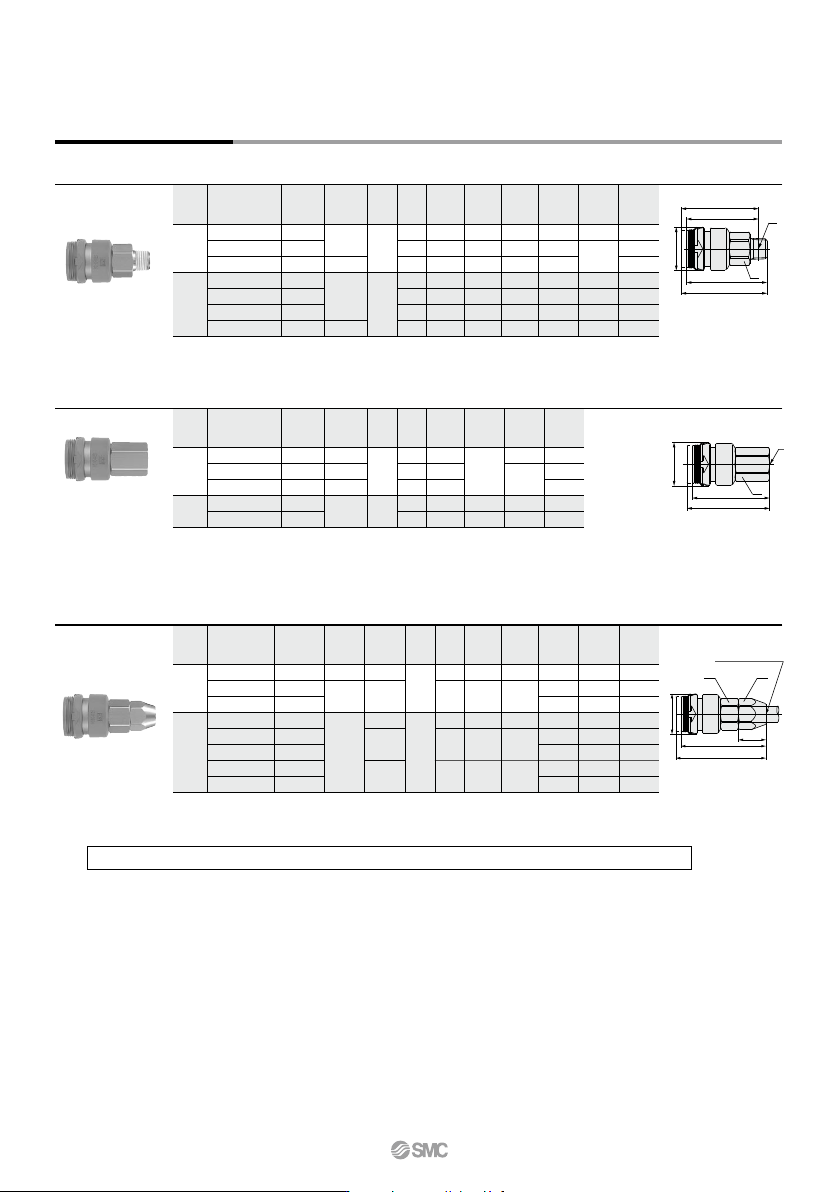

Dimensions/Socket (S)
KKH series are only available as sockets. KK series should be used as plugs. For dimensions, please refer to page 220.
A1
A2
L1
L2
øD
L2
M
L1
øD
H1 H2
H
T
L1
L2
øD
H
T
Applicable hose
KKH Series
