Lock ring Shock absorbent PBT Sleeve cover (Except for KK2 series) q w Lock Click KK Series S Couplers Employs a unique co nnection m ethod A slim bod y design and la rge effective area are achieved w ith a construct ion…
··········································································································224 to 226
··············································································································· 215 to 223
KK3/4/6 Series
KK2 Series
KK Series
KKH Series
KKH Series
KK Series
Variations
············································································· 341 to 348
Stainless steel type
Male thread type
Nut fitting type (for fiber reinforced urethane hose)
Series
KKH3
KKH4
Applicable hose I.D./O.D. mm
5/8 6/9 6.5/10 8/12 8.5/12.5
Female thread type
Series
KKH3
KKH4
Port size
Rc1/8 Rc1/4 Rc3/8
Male thread type
Series
KK2
KK3
KK4
KK6
Port size
M5 R1/8 R1/4 R3/8
R1/2 R3/4
One-touch fitting type (Straight/Elbow/Bulkhead)
Series
KK2
KK3
KK4
KK6
ø3.2 ø4
ø6 ø8
ø10 ø12 ø16
Nut fitting type (for fiber reinforced urethane hose)
Series
KK3
KK4
KK6
Applicable hose I.D./O.D. mm
5/8 6/9 6.5/10 8/12
8.5/12.5 11/16
Female thread type
M5
Series
KK2
KK3
KK4
KK6
Port size
Rc1/8 Rc1/4 Rc3/8 Rc1/2
Male/Female thread type
Series
KKA3
KKA4
KKA6
KKA7
KKA8
KKA9
Port size
R·Rc1/8 R·Rc1/4 R·Rc3/8 R·Rc1/2 R·Rc3/4 R·Rc1
R·Rc1 1/4 R·Rc1 1/2
Applicable tubing O.D. mm
Series
KKH3
KKH4
Port size
R1/8 R1/4 R3/8 R1/2
KKA Series
214
Lock ring
Shock absorbent PBT
Sleeve cover
(Except for KK2 series)
q w
Lock
Click
KK Series
S Couplers
Employs a unique connection method
A slim body design and large effective area are
achieved with a construction that does not use steel
balls and therefore does not restrict the flow path.
No spring located in the flow path
Loss of effective area is minimized because there
is no valve spring to block the flow path.
Check valve end configuration
facilitates rectifying effect
Allows smooth flow of fluids.
Low leakage seal construction
Reliable sealing is achieved by surface
contact.
Lightweight
Together with a reduction of the body size, pressing parts and resin parts are used
to achieve an overall weight reduction.
Plug no.
KK2P-M5M
KK3P-01MS
KK4P-02MS
KK6P-04MS
Socket no.
KK2S-M5M
KK3S-01MS
KK4S-02MS
KK6S-04MS
Body O.D. (mm)
ø10.0
ø20.2
ø28.0
ø31.6
Mass (g)
6.1
20.1
44.1
90.1
Series
KK2 Series
KK3 Series
KK4 Series
KK6 Series
Note 2)
Effective area (mm
2
)
3.8
20
39
82
Note 1)
Note 1) Values when plug and socket are connected.
Note 2) Values for socket only.
One-touch fitting type standardized
Four types from ø3.2 to ø16 added to series.
Flow is possible from the plug side or socket side.
Fluids: Air and Water
One-touch connection
Simple connection with one hand simplifies work.
Sleeve lock mechanism
Prevents accidents caused by unexpected separation.
Note) Except for M5 type (KK2 series).
Twice
as strong as the current models
The pulling strength for the plugs and
sockets has been improved.
Twice
as strong as the current models
We standardized the product with a sleeve cover. Changing the lock
ring material to a shock absorbent PBT further improved the shock
absorbent performance.
Elbow type
Bulkhead type
Straight type
215
KQ2
KQB2
KS
KX
KM
KF
M
H/DL
L/LL
KC
KK
KK130
DM
KDM
KB
KR
KA
KQG2
KG
KFG2
MS
KKA
KP
LQ
MQR
T
IDK
KK
Body size
1/8
M5
1/4
1/2
Port size
M5 x 0.8
R 1/8
R 1/8
R 1/4
R 3/8
R 1/8
R 1/4
R 3/8
R 1/2
R 3/8
R 1/2
R 3/4
KK2P-M5M
-01MS
KK3P-01MS
-02MS
-03MS
KK4P-01MS
-02MS
-03MS
-04MS
KK6P-03MS
-04MS
-06MS
1/8
1/4
1/2
M5 x 0.8
Rc 1/8
Rc 1/4
Rc 3/8
Rc 1/4
Rc 3/8
Rc 3/8
Rc 1/2
KK2P-M5F
KK3P-01F
-02F
-03F
KK4P-02F
-03F
KK6P-03F
-04F
1/8
M5
1/4
1/2
3.2
4
6
4
6
8
10
6
8
10
12
12
16
KK2P-23H
-04H
-06H
KK3P-04H
-06H
-08H
-10H
KK4P-06H
-08H
-10H
-12H
KK6P-12H
-16H
1/8
M5
1/4
1/2
3.2
4
6
4
6
8
10
6
8
10
12
12
16
KK2P-23L
-04L
-06L
KK3P-04L
-06L
-08L
-10L
KK4P-06L
-08L
-10L
-12L
KK6P-12L
-16L
1/8
M5
1/4
1/2
3.2
4
6
4
6
8
10
6
8
10
12
12
16
KK2P-23E
-04E
-06E
KK3P-04E
-06E
-08E
-10E
KK4P-06E
-08E
-10E
-12E
KK6P-12E
-16E
1/8
1/4
1/2
5/8
6/9
6.5/10
5/8
6/9
6.5/10
8/12
8.5/12.5
8/12
8.5/12.5
11/16
KK3P-50N
-60N
-65N
KK4P-50N
-60N
-65N
-80N
-85N
KK6P-80N
-85N
-110N
1/8
M5
1/4
1/2
M5 x 0.8
R 1/8
R 1/8
R 1/4
R 3/8
R 1/8
R 1/4
R 3/8
R 1/2
R 3/8
R 1/2
R 3/4
KK2S-M5M
-01MS
KK3S-01MS
-02MS
-03MS
KK4S-01MS
-02MS
-03MS
-04MS
KK6S-03MS
-04MS
-06MS
1/8
M5
M5
1/4
1/2
M5 x 0.8
Rc 1/8
Rc 1/4
Rc 3/8
Rc 1/4
Rc 3/8
Rc 3/8
Rc 1/2
KK2S-M5F
KK3S-01F
-02F
-03F
KK4S-02F
-03F
KK6S-03F
-04F
1/8
M5
1/4
1/2
3.2
4
6
4
6
8
10
6
8
10
12
12
16
KK2S-23H
-04H
-06H
KK3S-04H
-06H
-08H
-10H
KK4S-06H
-08H
-10H
-12H
KK6S-12H
-16H
1/8
M5
1/4
1/2
3.2
4
6
4
6
8
10
6
8
10
12
12
16
KK2S-23L
-04L
-06L
KK3S-04L
-06L
-08L
-10L
KK4S-06L
-08L
-10L
-12L
KK6S-12L
-16L
1/8
M5
1/4
1/2
3.2
4
6
4
6
8
10
6
8
10
12
12
16
KK2S-23E
-04E
-06E
KK3S-04E
-06E
-08E
-10E
KK4S-06E
-08E
-10E
-12E
KK6S-12E
-16E
1/8
1/4
1/2
5/8
6/9
6.5/10
5/8
6/9
6.5/10
8/12
8.5/12.5
8/12
8.5/12.5
11/16
KK3S-50N
-60N
-65N
KK4S-50N
-60N
-65N
-80N
-85N
KK6S-80N
-85N
-110N

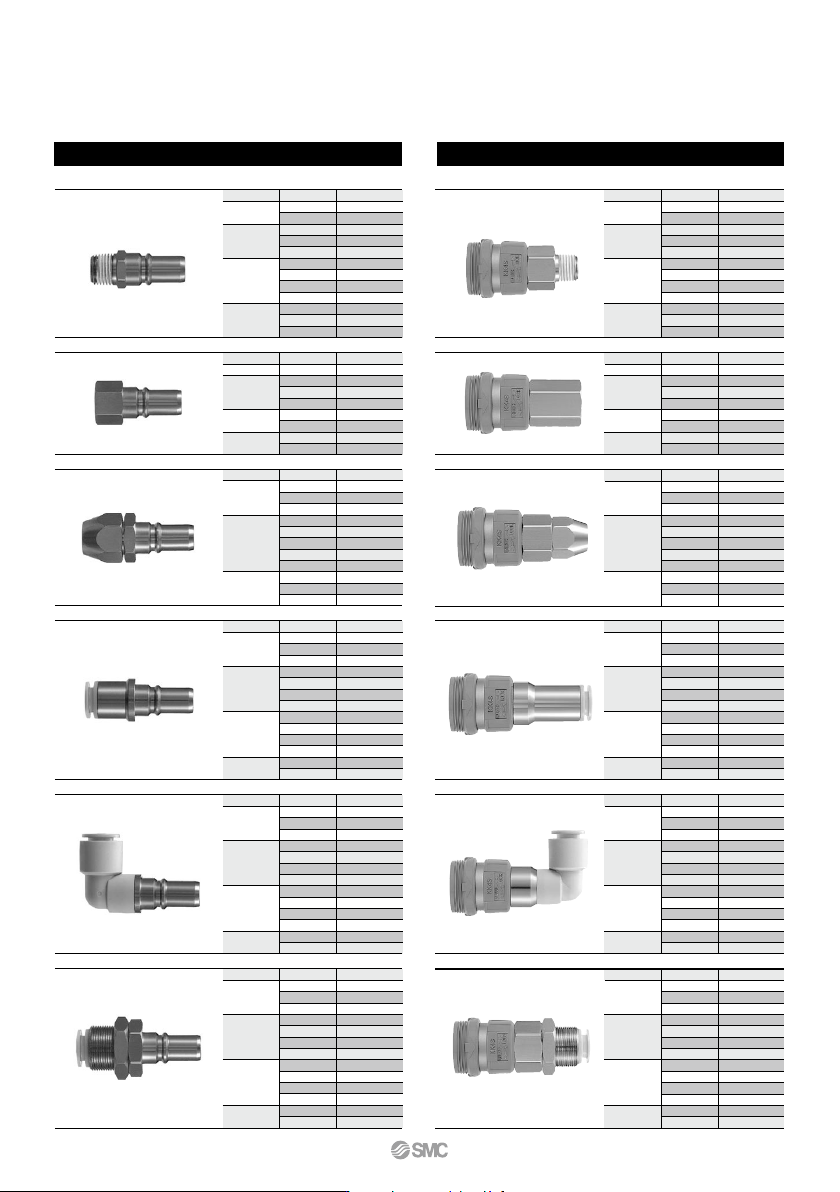

Part no.
Male thread type
Female thread type
Straight type with One-touch fitting
Elbow type with One-touch fitting
Bulkhead type with One-touch fitting
Nut fitting type (for fiber reinforced urethane hose)
Male thread type
Female thread type
Straight type with One-touch fitting
Elbow type with One-touch fitting
Bulkhead type with One-touch fitting
Nut fitting type (for fiber reinforced urethane hose)
Body size
Applicable
tubing O.D. mm
Part no.
Body size Port size Part no.
Body size Port size Part no.
Body size Port size Part no.
Body size
Applicable
tubing O.D. mm
Part no.
Body size
Applicable
tubing O.D. mm
Part no.
Body size
Applicable
tubing O.D. mm
Part no.
Body size
Applicable
tubing O.D. mm
Part no.
Body size
Applicable
tubing O.D. mm
Part no.
Body size
Applicable hose
I.D./O.D. mm
Part no.
Body size
Applicable hose
I.D./O.D. mm
Part no.
Plug (P)
Socket (S)
KK Series
216
