MDF51 Series●High V oltage Wire-to-Board Connectors
■Product Specification
Ratings
Current rating
Voltage rating
1A
3000V AC/DC
Operating temperature range -35°C to +85°C (Note 1)
Operating humidity range RH 20% to 80%
Storage temperature range -10°C to +60°C (Note 2)
Storage humidity range RH 40% to 70% (Note 2)
■File and recognition numbers:
UL and C-UL : E52653
TÜV : R50085755
UL, C-UL
Ratings
Current rating
Voltage rating
1A
1000V AC/DC
TÜV
1A
1000V AC/DC
500V DC
5000V AC / 1 minute
20mV max., at 1mA .
Frequency: 10 to 55Hz, single amplitude of 0.75mm,
10 cycles, 3 axis
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave,
3 cycles in each of the 3 axis
96 hours at of 40 ±2ç, and humidity of 90 to 95%
-55ç → 5 to 35ç → 85ç → 5 to 35ç
Times: 30 min. → 3 min. → 2 min. to 3 min. → 30 min. → 2 min. to 3 min.
5 cycles
30 cycles
Reflow: At the recommended temperature profile (MDF51SU)
Flow: Solder temperature 260ç, 10 seconds (MDF51K and MDF51SY)
Manual soldering: 350ç for 3 seconds
1000Mø min.
No flashover or insulation breakdown
20mø max.
No electrical discontinuity of 1µs or longer
No damaged, cracked or loose parts.
No electrical discontinuity of 1µs or longer
No damaged, cracked or loose parts.
Contact resistance: 40mø max.,
Insulation resistance: 500Mø min.
No damaged, cracked or loose parts.
Contact resistance: 40mø max.,
Insulation resistance: 500Mø min.
No damaged, cracked or loose parts.
Contact resistance: 40mø max.
No damaged, cracked or loose parts.
No deformation of components affecting
performance
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Shock
6. Humidity
7. Temperature cycle
8. Mating cycles
9. Resistance to soldering
heat
Item Specifications Conditions
■Material / Finish
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage,
shipment or during transportation.
Part Material Finish
Insulator
Contact
MDF51K PBT
MDF51SU : Polyamide
MDF51SY : Polyamide
Brass
Color : Black
Color : Beige
Color : Black
Tin plating
Remarks
UL94V-0
-----------------
Part Material Finish
Socket Insulator
Crimp contact
MDF51 : Polyamide
MDF51SU : Polyamide
Phosphor bronze
Color : White
Color : Gray
Tin plating
Remarks
UL94V-0
-----------------
●
Header
●
Crimp socket
Jun.1.2023Copyright2023HIROSEELECTRICCO.,LTD.AllRightsReserved.
3
MDF51 Series●High V oltage Wire-to-Board Connectors
■Product Number Structure
●Header
MDF51 # – * P – 12 DSA
MDF51 – 24 SCF
Series name : MDF51
Configuration type
K : Contact pitch 12mm, through hole
SU : Contact pitch 13mm, surface mount
SY : Contact pitch 13mm, through hole
No. of contacts : 2
Connector type P : Header
Contact pitch 12mm or 13mm
Mounting style
DSA : Through hole, straight
V : Surface mount, straight
●Crimp socket
MDF51 # – * S – 12 C
Series name : MDF51
Configuration type
Blank : Contact pitch 12mm, standard
SU : Contact pitch 13mm, standard
No. of contacts : 2
Connector type S : Crimp socket
Contact pitch 12mm or 13mm
Termination C : Crimp
●Contacts
Applicable wire size
24 : 24 AWG
Packaging
SCF : Female crimp contact / reel
❶❷
❶
❶
❶
❷
❷
❷
❸
❸
❹
❹
❺
❺
❻
❻
❶
❷
❸
❹
❺
❻
❶
❷
❸
❹
❺
❻
Jun.1.2023Copyright2023HIROSEELECTRICCO.,LTD.AllRightsReserved.
4
MDF51 Series●High V oltage Wire-to-Board Connectors
■
Crimp socket (Contact pitch : 12 mm)
• Contacts supplied separately
A
21
25.6
9.85
4.551.45
9.35
P=12
Contact No.1 mark
●With crimp contacts assembled

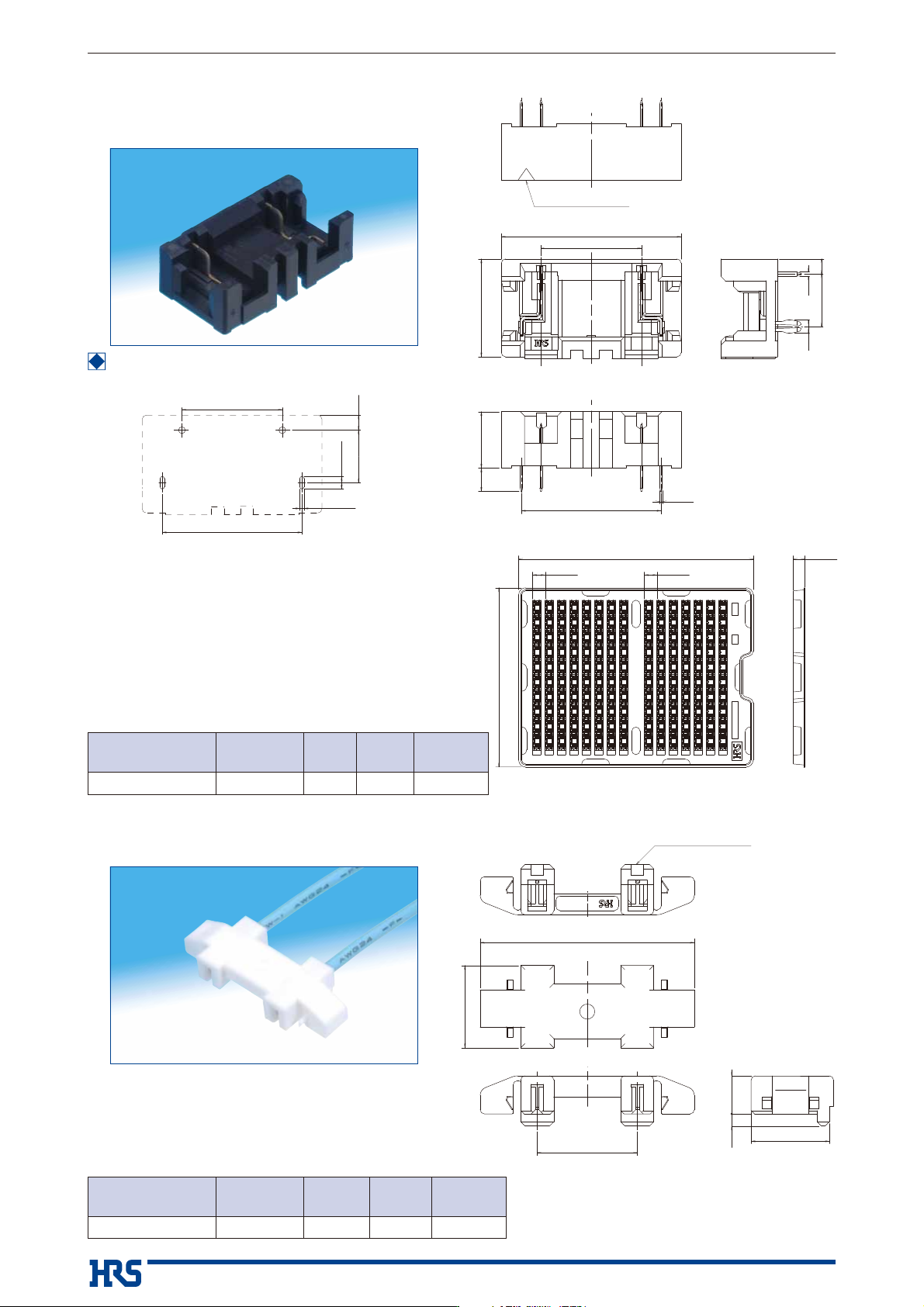

■ Header (Contact pitch : 12 mm)
●Straight, through hole
●
Packaging Specification
340 16.65
260
P=18 P=18
A
Contact No.1 mark
t=0.3
16.7
21.5
0.51.6
1.86.28
6.75 11.92.8
P=12
12±0.1
16 7±0
12±0.1
6.28±0.1
1.5
+0.1
0
0.5
+0.1
0
16.7±0.1
(1.8)
Recommended PCB la y out dimensions
(Thic kness : 1.6mm)
Unit : mm
Unit : mm
Part No. HRS No.
No. of
contacts
Insulator
Color
Packaging
MDF51K-2P-12DSA(20)
547-2017-9 20 2 Black 150 pcs/tray
Please place orders in full tray increments.
Part No. HRS No.
No. of
contacts
Insulator
Color
Packaging
MDF51-2S-12C
547-2004-7 00 2
White
100 pcs/pack
Please place orders in full pack increments.
Jun.1.2023Copyright2023HIROSEELECTRICCO.,LTD.AllRightsReserved.
