Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-124 Programmable Squeegee Carriage Assembly 990232 (1 of 3) See Sheet 2 24 23 45 44 990232_1 32 8 30 27 18 9 39 35 26 30 12 24 28 52 49 50 21…
Illustrated Parts Breakdown
1-123
Optional Tactile Sensor Assembly 990305 Parts Listing
Key # Part # Description Quantity
1 001907 SLIDE, MODIFIED AIR ACTUATED U-BLOCK 1
2 001758 COVER, TACTILE MOUNT 1
3 6-32 X 3/8" SHCS —
4 6-32 X 3/4" SHCS —
5 001761 HOUSING, TACTILE MOUNT 1
6 001760 HOUSING, FACE TACTILE MOUNT 1
7 000788 BLOCK, SENSOR MOUNT 1
8 P1629 SWITCH, LOW FORCE W/ER TERMINATION 1
9 #4 FLAT WASHER 1
10 4-40 X 5/8" SHCS —
11 000792 ACTUATOR SWITCH 1
12 001755 FLAG, MOTOR 1
13 #2 FLAT WASHER —
14 2-56 X 1/4" SHCS —
15 P2901 FITTING, SPEED CONTROLLER, 5/32" 2
16 001756 FLAG, CYLINDER MOUNT 1
17 001757 MOUNT, SENSOR 1
18 6-32 X 1/4" BHS —
19 P2309 PHOTOMICROSENSOR, BUILT-IN AMPLIFIER 2
20 4-40 X 3/8" SHCS —
21 000789 COVER, SENSOR MOUNT 1
22 P3588 ACTUATOR, LINEAR, CA SHAFT 1
23 4-40 X 1/4" SHCS —
24 P3708 ANCHOR, SPRING 6-32 X .63" 2
25 002023 COVER, TACTILE MOUNT HOUSING 1
26 2-56 X 1/4" FHS —
27 P3976 SPRING 1
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-124

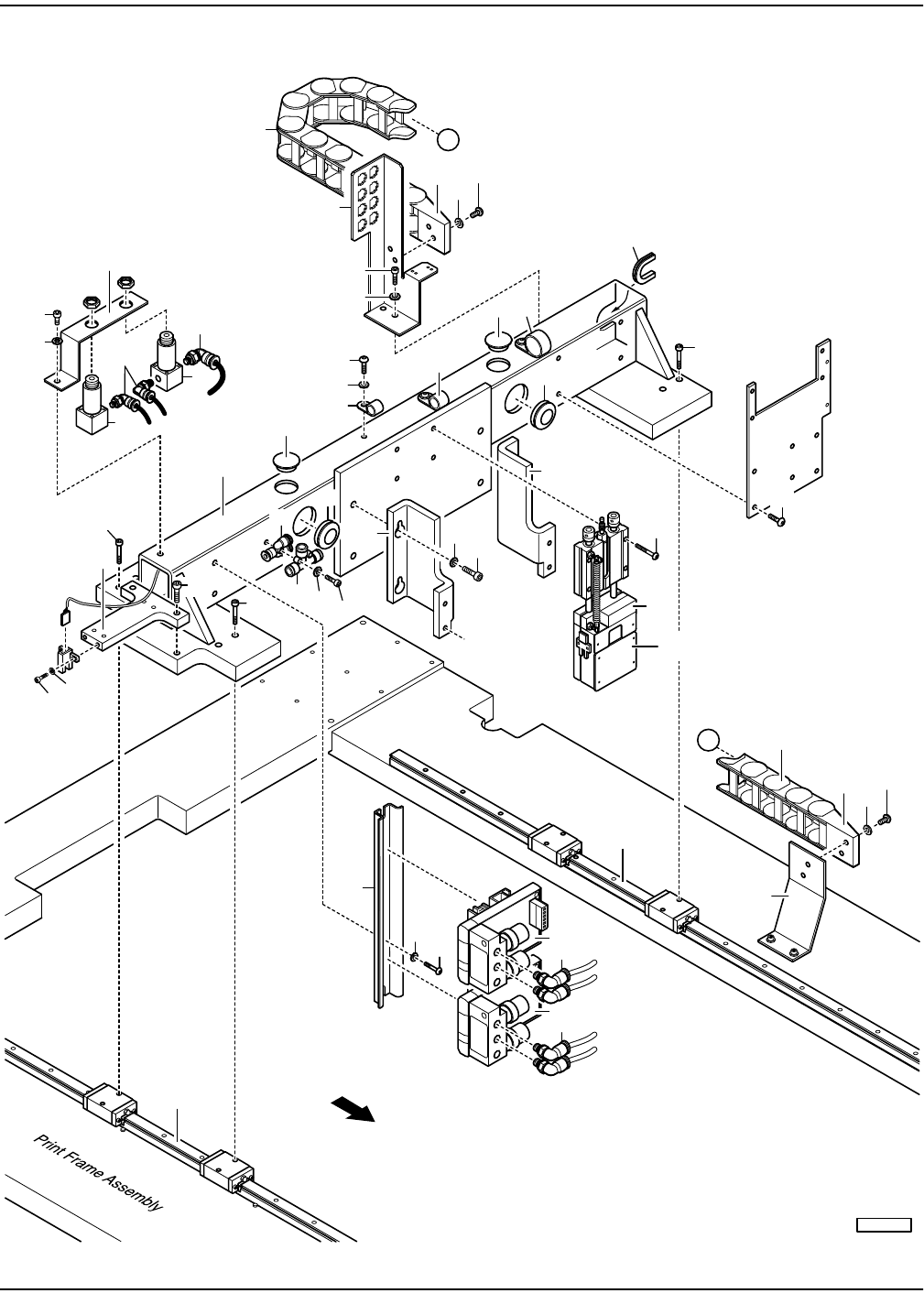

Programmable Squeegee Carriage Assembly 990232 (1 of 3)
See
Sheet 2
24
23
45
44
990232_1
32
8
30
27
18
9
39
35
26
30
12
24
28
52
49
50
21
20
31
34
35
36
35
3
7
14
47
22
22
40
41
1
17
2
20
23
46
11
11
13
A
A
37
38
35
45
44
46
46
48
49
See IPB 990305
Front of
Printer
42
26
33
30
Illustrated Parts Breakdown
1-125
Programmable Squeegee Carriage Assembly 990232 (2 of 3)
4
6
990232_2
5
29
Air to
Tactile
Sensor
To
Prohead
motor
To
Prohead
proximity
switch
To
Prohead
brake cyl.
VS1
VS5
in
10
43
42
44
42
44
See IPB 1005488
Front of
Printer
51
