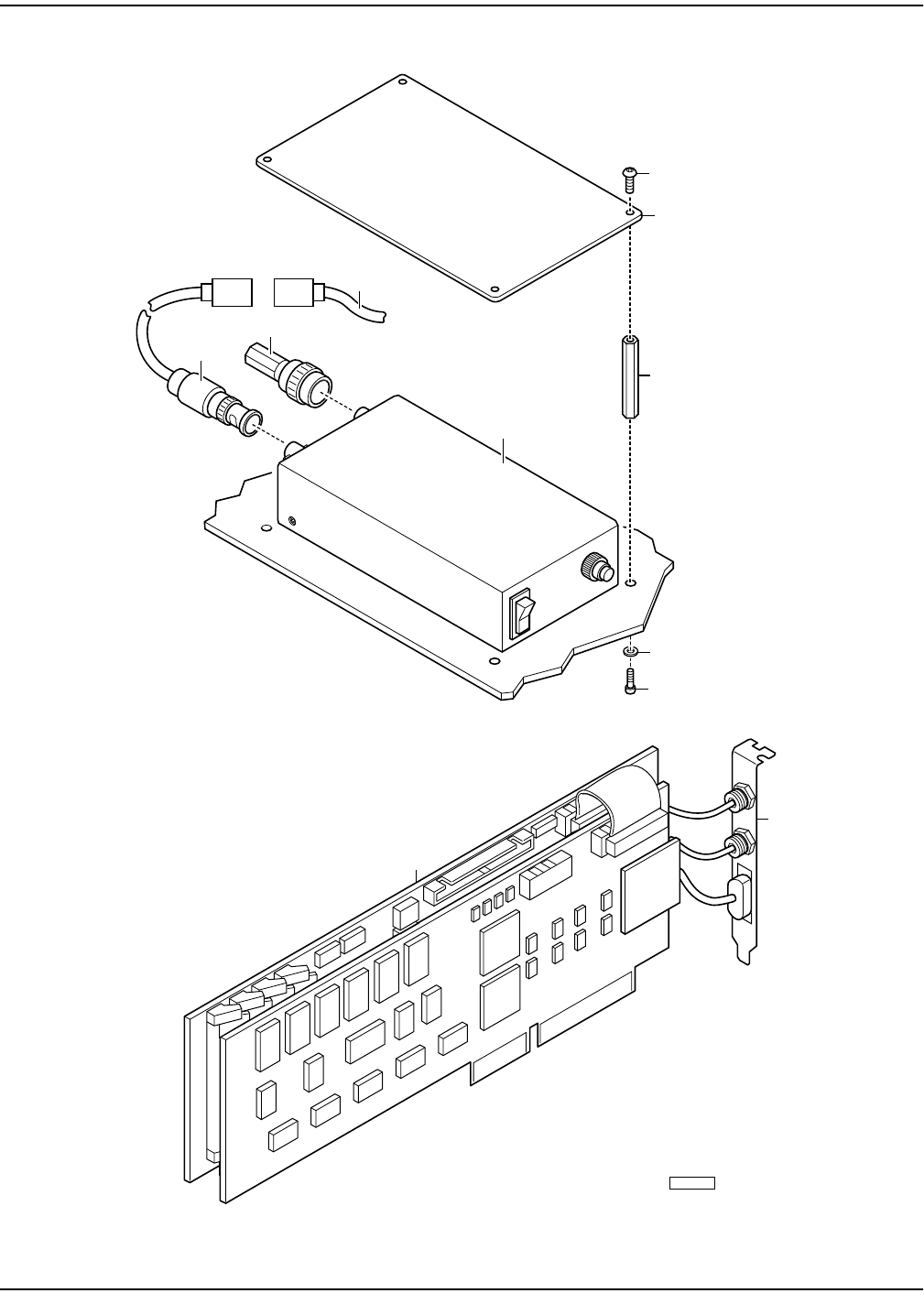

Vision Electrical Assembly 990089 (1 of 1)
9
990089
2
11
1
Installed in Computer
(Assembly 990131)
Mounted to Pnuematics Tray
(Assembly 990341)
10
5
7
8
6
4
3
Illustrated Parts Breakdown
1-35
Vision Electrical Assembly 990089 Parts Listing
Key # Part # Description Quantity
1 CA-327 ASSEMBLY, CABLE, COGNEX TO CAMERA SUPPLY 1
2 CA-373 CABLE, CAMERA POWER SUPPLY 1
3 001687 COVER, CAMERA 1
4 8-32 X 3/8" BHS —
5 P4760 CAMERA, TOSHIBA 1
6 P4130 STANDOFF 4
7 #8 FLAT WASHER —
8 8-32 X 3/8" SHCS —
9 P3100 PROCESSOR, VISION, W/VIDEO MIXER 1
10 990250 KIT, VISION CABLE 1
11 1000094 ASSEMBLY, VIDEO IN ADAPTER 1
quantities are of entire assembly
NS not shown
