Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-140 Side Snuggers Assembly APOPT 16 (1 of 1) Rear Vacuum Assembly Front Vacuum Assembly 5 22 23 5 18 19 4 3 1,9,10,13,17 20 20 15 12 2 10 16 …
Illustrated Parts Breakdown
1-139
3D Vision Inspection Assembly APOPT 11 Parts Listing
Key # Part # Description Quantity
1 A2-1002 BEAM, MIRROR SUPPORT 1
2 A2-1100 INSERT, LASER 1
3 A2-997 SUPPORT, HORIZONTAL LASER 1
4 A2-998 SUPPORT, VERTICAL LASER 1
5 CA-485-3 CABLE, LASER ASSEMBLY 2
6 P5448 SPACER, NYLON, 1/4" O.D. X .168" I.D. 2
7 P2203 MIRROR, ROUND 1
8 2-56 X 1/2" SHCS —
9 6-32 X 5/8" SHCS —
10 6-32 X 1/2" SHCS —
11 6-32 X 1 1/8" SHCS —
12 6-32 X 3/4" SHCS —
13 6-32 X 1/4" SHCS —
15 CA-485-4 CABLE, LASER ASSEMBLY 1
16 P2187 WASHER, NYLON .160" ID X .250" OD 1
17 1005358 LABEL, LASER CAUTION 1
18 1005360 LABEL, CLASS 1 LASER 1
19 002231 LABEL, FDA COMPLIANCE 1
20NS P4722 MINI OUTPUT MODULE 2
21NS P2825 POWER SUPPLY, 5 VDC TUV CERTIFIED 1
22 4-40 X 1/4" BHS —
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-140

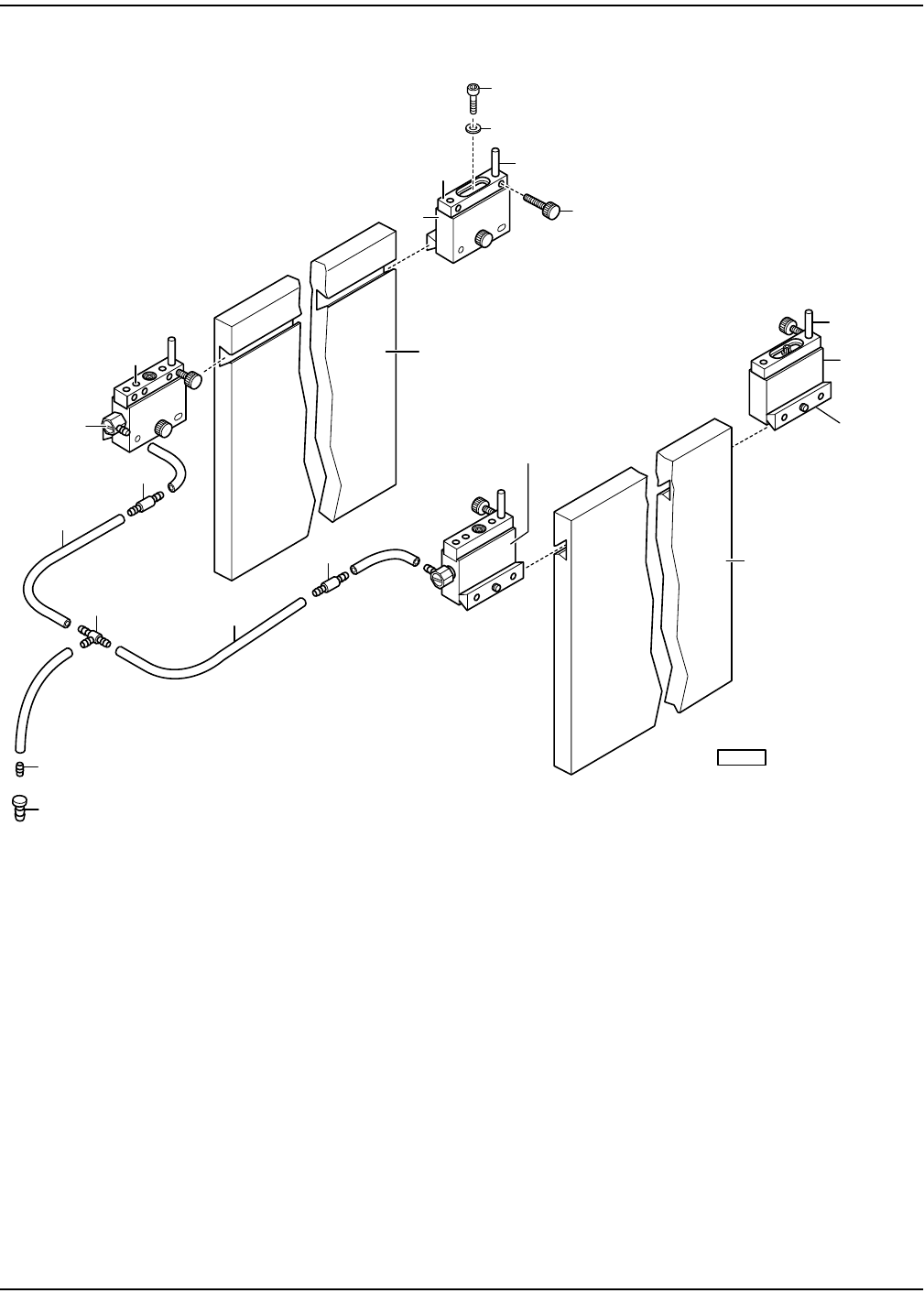

Side Snuggers Assembly APOPT 16 (1 of 1)
Rear Vacuum Assembly
Front Vacuum Assembly
5
22
23
5
18
19
4
3
1,9,10,13,17
20
20
15
12
2
10
16
16
14
8,11
OPT_16
Illustrated Parts Breakdown
1-141
Side Snuggers Assembly APOPT 16 Parts Listing
Key # Part # Description Quantity
1 A2-1151 SCREW, CAP 2
2 A2-1267 MOUNT, SLIDING PIN 2
3 A2- 1268 MOUNT, SLIDING PIN 2
4 A2-1269 MOUNT, DOVETAIL 4
5 A2-1270 PIN, CONTACT 8
6NS A2-1271 MOUNT, SLIDING PIN 2
7NS A2-1272 MOUNT, SLIDING PIN 2
8 A2-1273 MOUNT, SLIDE PIN 2
9 A2-1274 PISTON 2
10 A2-1276 BODY, SNUGGER 2
11 A2-1327 COLLAR, GUIDE 2
12 P0005 FITTING, BARB 10-32 X 5/64" ID 3
13 P0008 SPRING, COMPRESSION 2
14 P0683 PLUG, MALE 10-32 LOW PRES. 1
15 P0718 FITTING, TEE, BARB I
16 P0961 TUBING, POLY 025" WALL 4
17 P1011 U-CUP SEAL 3/8" OD X 3/32" TH 2
18 P1350 FITTING 90 DEG 10-32 X 1/16" 2
19 P 1377 KNOB, THUMB SCREW 12
20 P2155 RESTRICTOR, ORIFICE 2
21NS P3660 VALVE, 4-WAY 1
22 4-40 X 3/8" SHCS —
23 # 4 FLAT WASHER —
quantities are of entire assembly
NS not shown
