E-by SIPLACE Smart Feeder 44 mm E Removing the Tamp W heel for Rocker Part Exchange 1/4 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: T1,T2,T…

E-by SIPLACE Smart Feeder 44 mm E Tamp Wheel for Rocker

Part Exchange

T1 – Flat Bladed Screwdriver T2 – Split Pin Punch Size 1.4 T3 – Phillips Screwdriver

E-by SIPLACE Smart Feeder

44 mm E

Removing the Tamp Wheel for Rocker

Part Exchange

1/4

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T2,T3

Wear Part: Consumables:

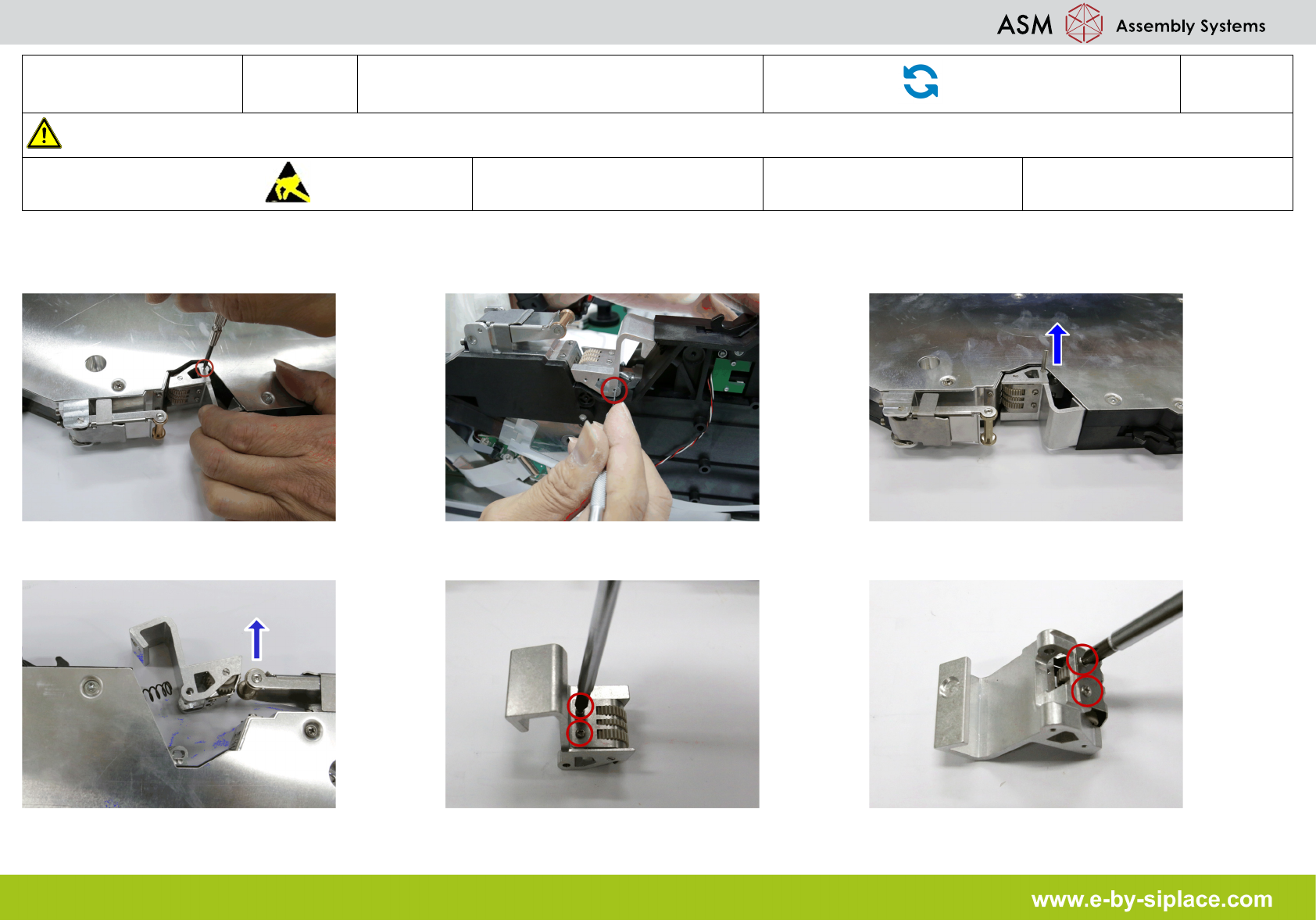

1. Loosen the rocker axle with T1. 2. Press the rocker axle from the left side with

T2.

3. Remove the rocker axle.

4. Lift up the rocker. 5. Remove the 2 screw with T3. 6. Remove the 2 screw with T3.

E-by SIPLACE Smart Feeder

44 mm E

Removing the Tamp Wheel for Rocker

Part Exchange

2/4

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T2

Wear Part: Consumables:

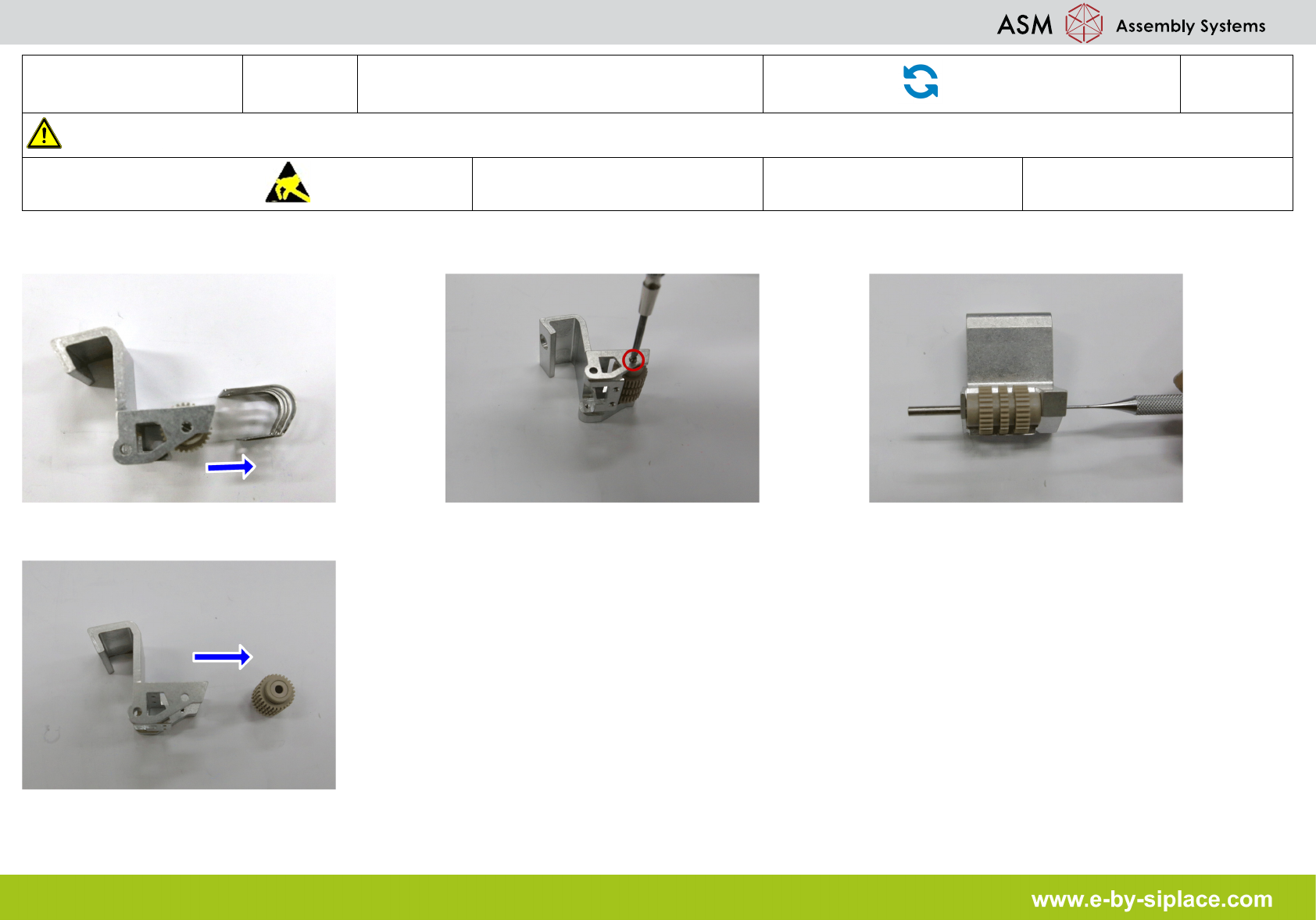

7. Pull out the rocker cover. 8. Loosen the bearing shaft with T1. 9. Push out the bearing shaft with T2.

10. Remove the Tamp Wheel for Rocker
