E-by SIPLACE Smart Feeder 44 mm E Fitting the Tamp Wheel for Rocker Part Exchange 3/4 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: T1,T3 Par…

E-by SIPLACE Smart Feeder

44 mm E

Removing the Tamp Wheel for Rocker

Part Exchange

2/4

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T2

Wear Part: Consumables:

7. Pull out the rocker cover. 8. Loosen the bearing shaft with T1. 9. Push out the bearing shaft with T2.

10. Remove the Tamp Wheel for Rocker

E-by SIPLACE Smart Feeder

44 mm E

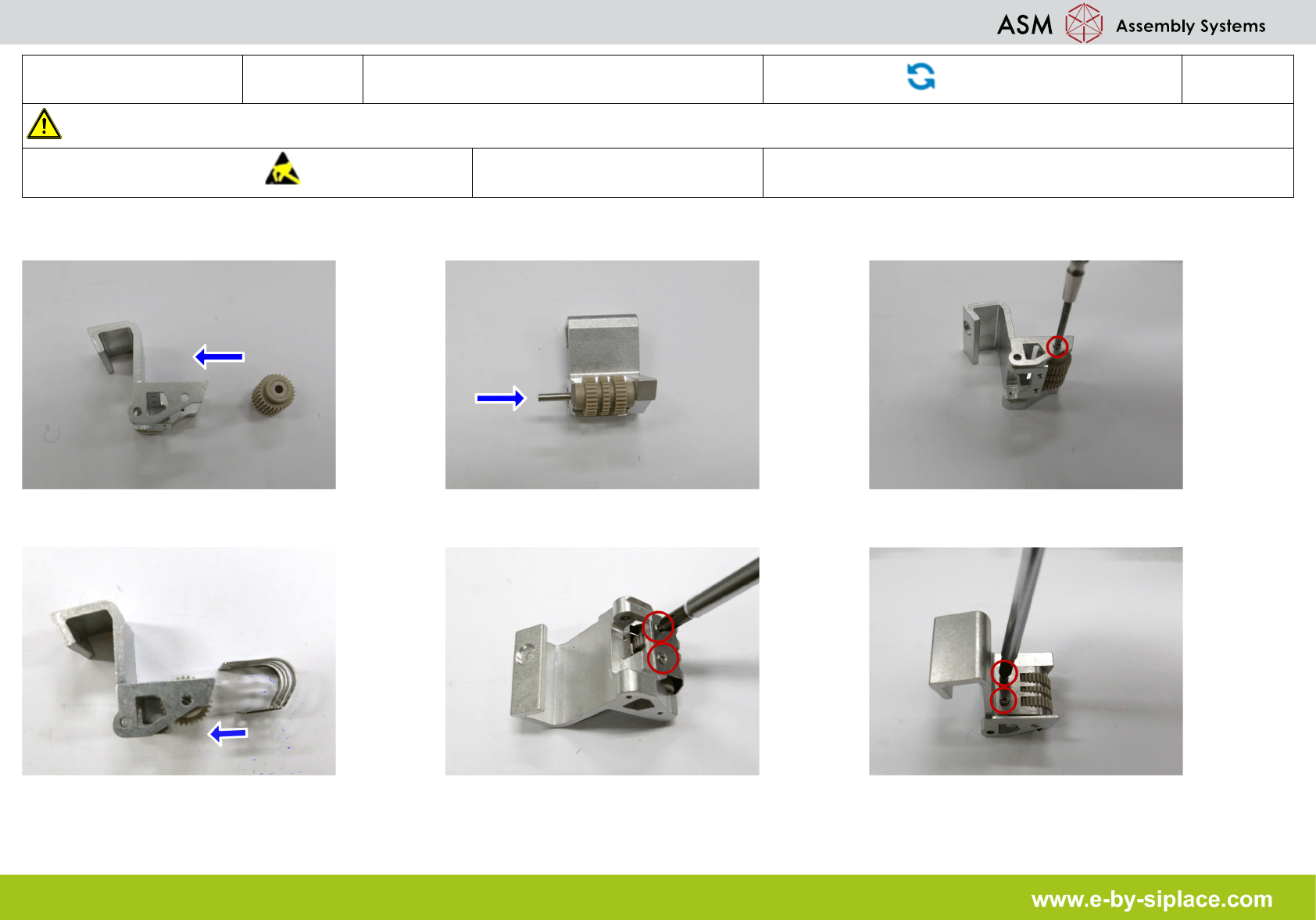

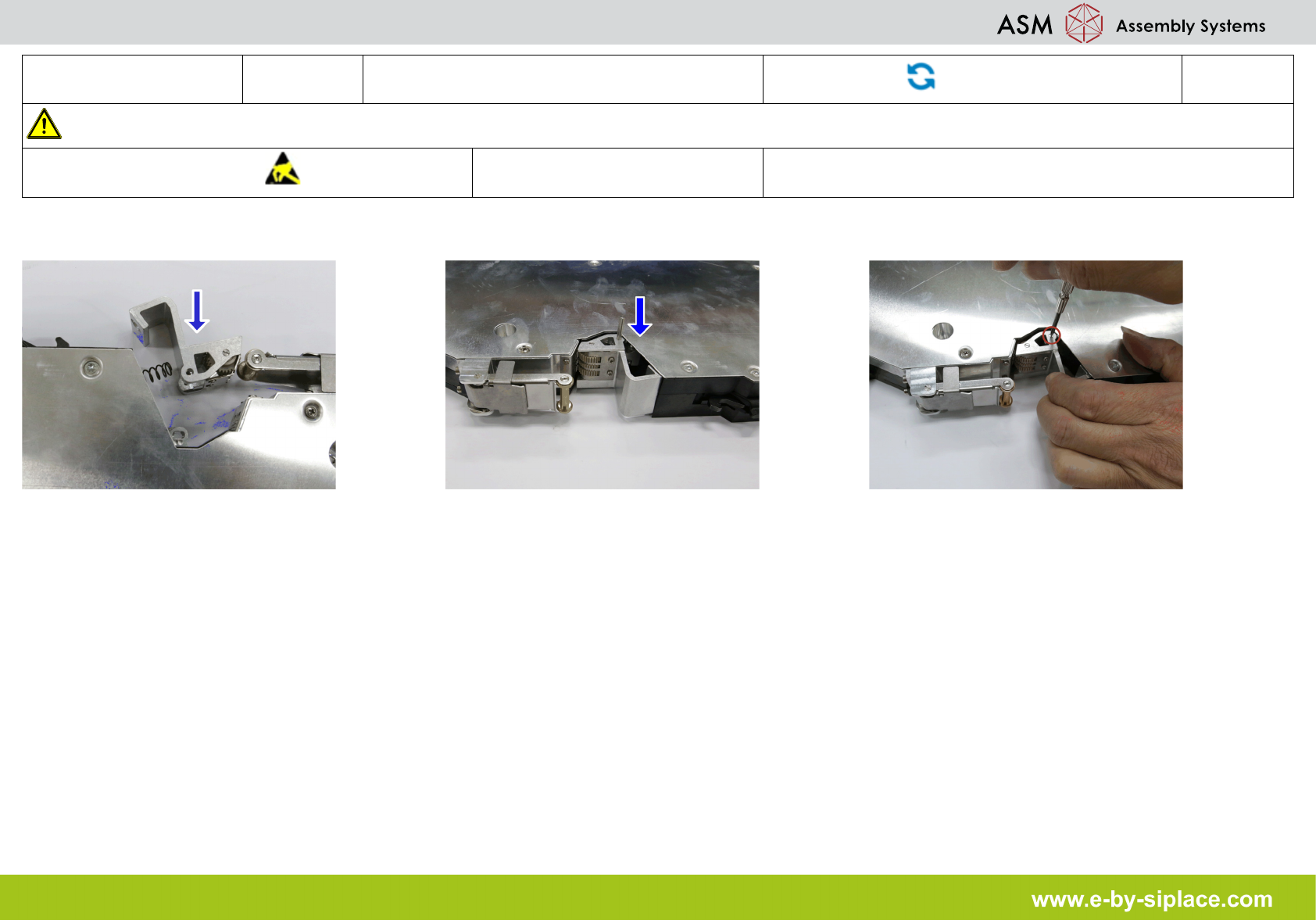

Fitting the Tamp Wheel for Rocker

Part Exchange

3/4

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T3

Part No.: 03042487-xx (<=-0.6)

03117053-xx (<=-0.7)

1. Fit in the tamp wheel for rocker. 2. Push in the bearing shaft. 3. Tighten the bearing shaft with T1.

4. Fit in the rocker cover. 5. Tighten the 2 screw with T3. 6. Tighten the 2 screw with T3.

E-by SIPLACE Smart Feeder

44 mm E

Fitting the Tamp Wheel for Rocker

Part Exchange

4/4

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

Part No.: 03042487-xx (<=-0.6)

03117053-xx (<=-0.7)

7. Fit in the rocker. 8. Insert the rocker axle. 9. Tighten the rocker axle with T1.
