Safety It is i mpe ra tive to f oll ow saf et y gu ide lin es to p reven t el ec tri c sh ock , inj ur y, fir e or ex plo sio n. - Do n ot use th e uni ts for a ny pur pos e othe r tha n PCB pr ehe atin g. Inc orre ct u …

Maintenance

- Before carrying out maintenance or storage, always

allow the equipment to cool down.

- Check periodically that the equipment is clean.

- Use a damp cloth when cleaning. Alcohol can only

be used to clean the metal parts.

- Only if it is absolutely necessary and if cleaning

with isopropyl alcohol (IPA) is not enough, it is

recommended to use a scraper to remove dirt in

the glass area.

- Replace any defective or damaged parts. Use original

JBC spare parts only.

- Repairs should only be performed by a JBC authorized

technical service.

Clean periodically

the Sliding Guide

Axes

Fuse Holder

Fuse

Pull out the fuse holder, if necessary use

a tool to lever it off.

Take the blown fuse out and press the

new one into the fuse holder. Finally clip

the fuse holder back into place.

- A blown fuse can be replaced by the user itself.

The fuse is located between the power supply

connector and the on/off switch (1). To replace a

blown fuse, proceed as described below.

Important: make sure that the preheater

is disconnected from the

power supply.

Safety

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.

- Do not use the units for any purpose other than PCB preheating. Incorrect use may cause a fire.

- The mains cable must be plugged into approved bases. Make sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- The temperature of accessible surfaces may remain high after the unit is turned off. Handle with care.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflammable products to ignite.

- Heat can cause inflammable products to ignite even when out of sight.

- Be careful with the remains of liquid tin. In contact with the skin, it can cause burns.

- Avoid flux coming into contact with skin or eyes to prevent irritation.

- Be careful with the smoke produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working

to avoid personal harm.

- This appliance can be used by children over the age of eight as well as persons with reduced physical,

sensory or mental capabilities or lacking experience provided that they have been given adequate

supervision or instruction concerning the use of the appliance and understand the hazards involved.

Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

www.jbctools.com

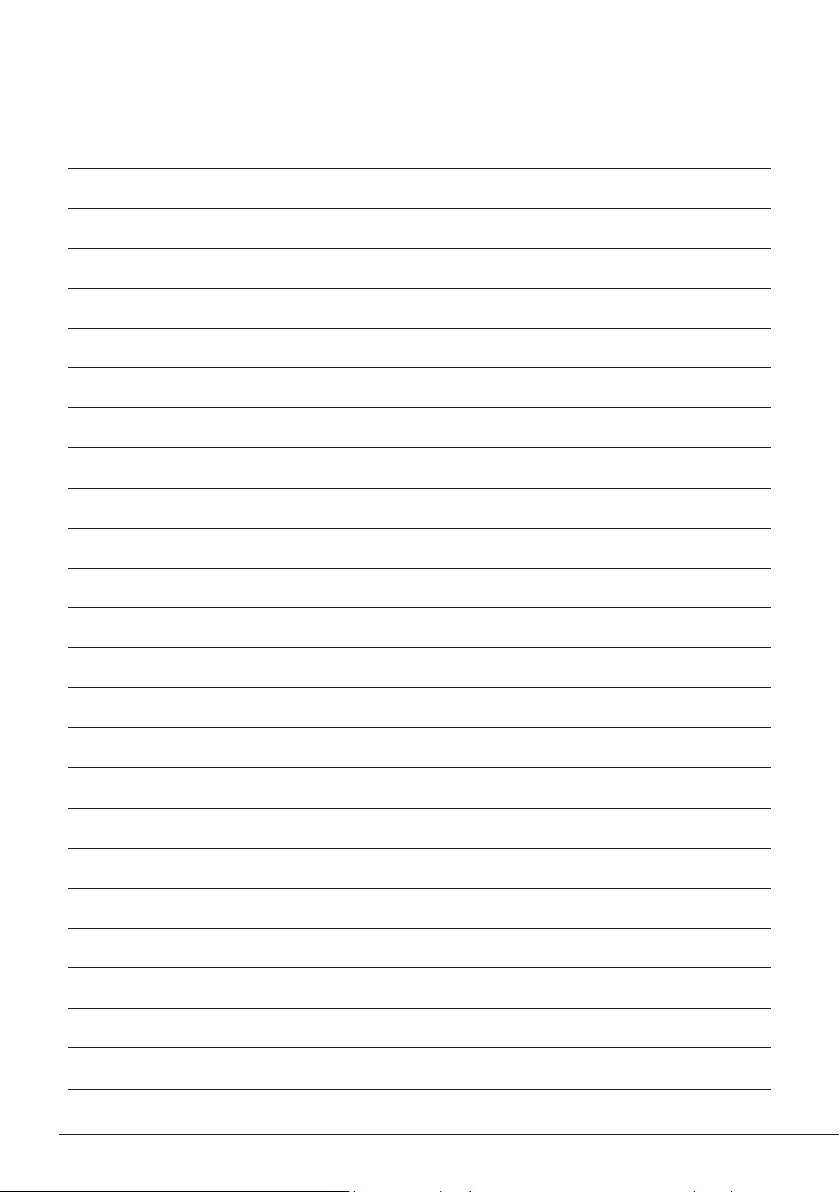

Notes
