Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 202 4W410049 WIRE P ARTS 6 1091401300-002 21 1 21 1DE827 PLA TE 1 1091401300-01 1 212 21 1C1555 P ANEL 1 1091401300-012 214 21 1C1549 P ANEL 2 1091401300-014 216 21 1B1459…

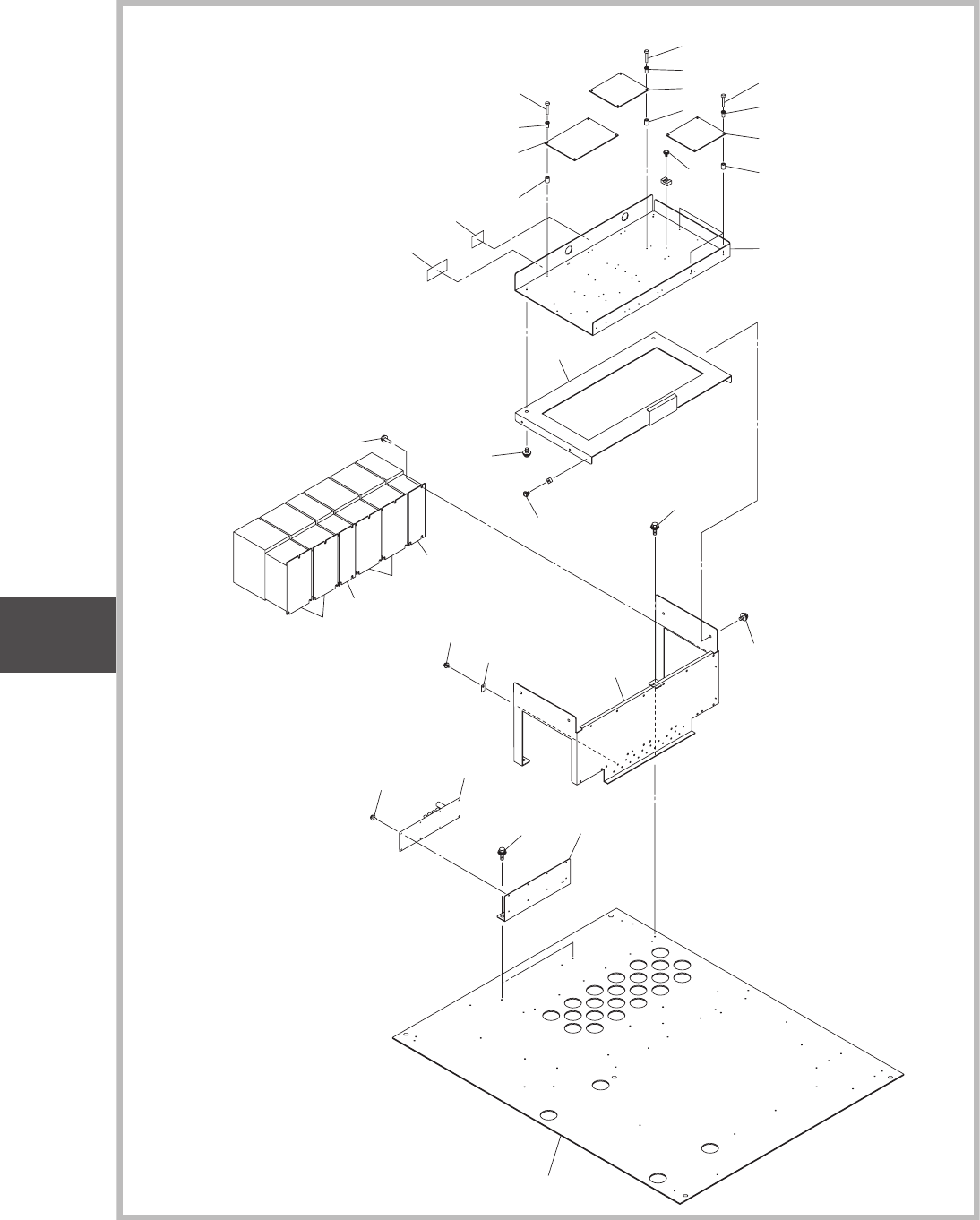

Fig. D3-3
ドライバ、基板
Driver, PCB
0912-002
2B2
2C4
2B2
2C4
2C0
2C8
2C9
2B5
2B2
2B4
214
211
212
216
217
221
254
256
257
222
202
221
222
220
269
269
268
268
2B2
2C4
257
269
268
2C1
2C8
2C7
2A5
2A6
2B7
2B7
2C0
2C8
2C9
2C0
2C8
2C9
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
202 4W410049 WIRE PARTS 6 1091401300-002
211 211DE827 PLATE 1
1091401300-011
212 211C1555 PANEL 1
1091401300-012
214 211C1549 PANEL 2
1091401300-014
216 211B1459 BOX 1
1091401300-016
217 211DE806 PLATE 1
1091401300-017
220 4B111617 PCB_MOUNT 2
1091401300-020
221 4U240485 UNIT_DRIVER 2
1091401300-021
222 0914B32J UNIT_DRIVER 4
1091401300-022
254 24000136 PROGRAM ROM 1
1091401300-054
256 4B111616 PCB_MOUNT 1
1091401300-056
257 4B111516 P.C.B,MOUNT 4
1091401300-057
268 23L10024 ACCESSORY_P_C_B 22
1091401300-068
269 23L10025 ACCESSORY_P_C_B 22
1091401300-069
2A5 09141316 NAME PLATE 1
1091401300-115
2A6 09141317 NAME PLATE 1
1091401300-116
2B2 221DA058 MACHINE SCREW 22
1091401300-182
2B4 221DA062 MACHINE SCREW 6
1091401300-184
2B5 221DA055 MACHINE SCREW 22
1091401300-185
2B7 221DA207 MACHINE SCREW 4
1091401300-187
2C0 221AA028 ROHS:BOLT_HEX-SCT 10
1091401300-190
2C1 221AA029 ROHS:BOLT_HEX-SCT 2
1091401300-191
2C4 221HA203 WASHER 22
1091401300-194
2C7 221HA303 ROHS:WASHER 2
1091401300-197
2C8 221HA005 WASHER 12
1091401300-198
2C9 221HA105 WASHER 10
1091401300-199
Fig. D3
0912-002
Fig. D3-3
UNIT-3
Fig. D3
ELEC2
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. D3-4
照明基板、
LAN
パネル
Lighting PCB, LAN Panel
0912-002
