Fig. E4-5 エア配管 Air Piping 403 403 404 401 405 401 402 404 401 405 From Main Body From Main Body See Fig E4-3 Key No.219 See Fig E4-3 Key No.239 See Fig E4-4 Key No.339 See Fig E4-4 Key No.319 See Fig E4-3 Key No.231 See …
MEMO

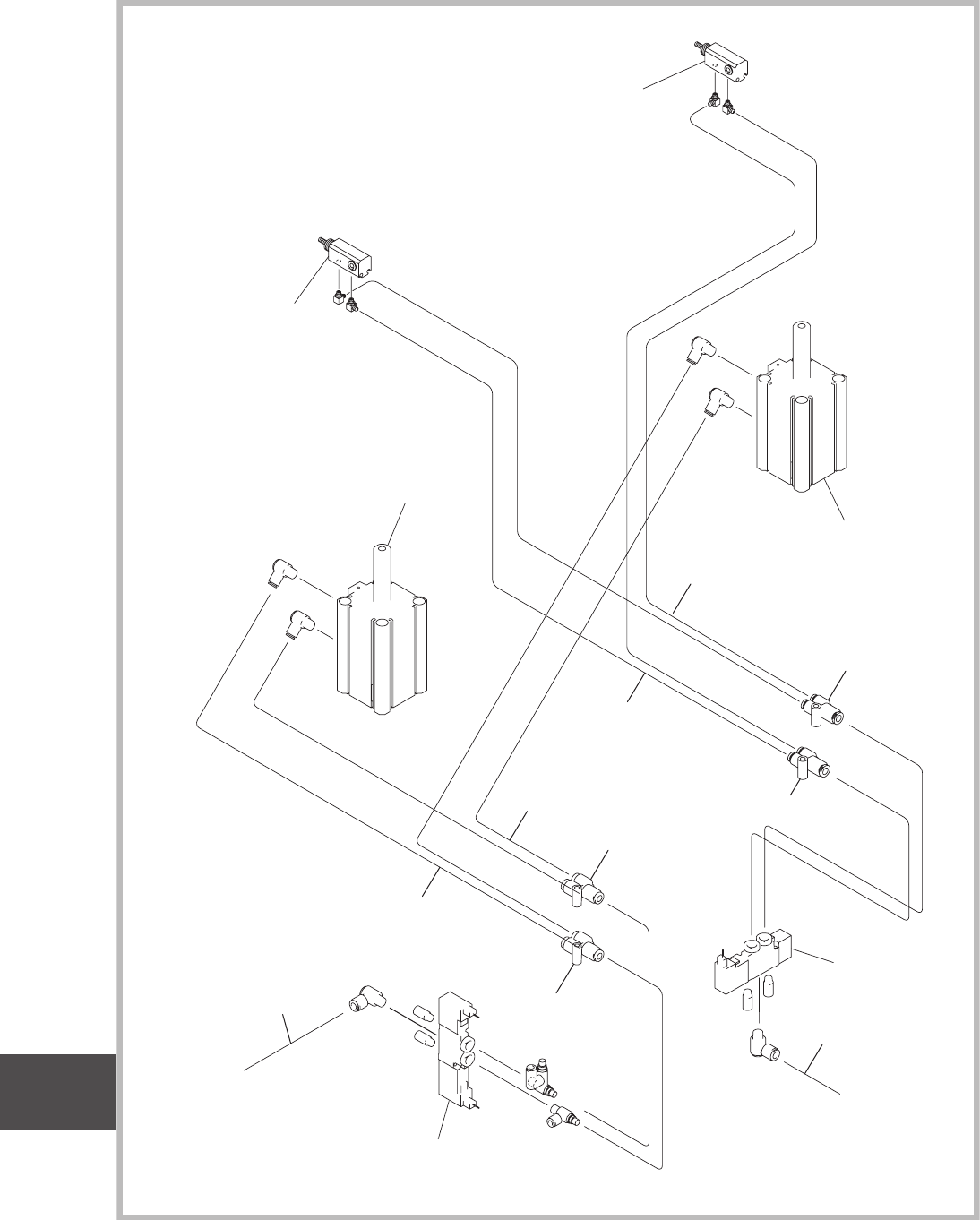

Fig. E4-5
エア配管
Air Piping
403
403
404
401
405
401
402
404
401
405
From Main Body
From Main Body
See Fig E4-3
Key No.219
See Fig E4-3
Key No.239
See Fig E4-4
Key No.339
See Fig E4-4
Key No.319
See Fig E4-3
Key No.231
See Fig E4-4
Key No.361
0912-002
Fig. E4
位置決め部
POSITIONING UNIT
UNIT-4
Fig. E4
POSITION
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 0929E105 TUBE D6 1 3092904100-001
402 0929E102 TUBE D8 L700 1
3092904100-002
403 225F0504 PIPE FITTINGS 2
3092904100-003
404 225F0519 PIPE FITTINGS 2
3092904100-004
405 0929E106 TUBE D4 1
3092904100-005
Fig. E4
0912-002
Fig. E4-5
UNIT-4
Fig. E4
POSITION
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
