Ta nk A Cleaning Ta nk B/C Rinsing Rinsing cycle Cleaning cycle Cleaning System Fresh / recycled rinse water Usable rinse water Contaminated rinse water T ank C DI / DM Wa ter ClosedLoop C losedLoop TA HMA-Filter Filter …
Main standard features
□ Adjustable DI / DM water mixing and blending unit
□ Automatic detergent concentration measurement / control
□ Automatic monitoring of ionic residues contamination and gauging of rinse water quality
□ Automatic re-dosage unit for 25 l detergent and 5 l additive container
□ Automatic water change for cleaning circuit
□ DeSealing filter insert for coating cleaning / paint stripping processes
□ Descaling unit to reduce the lime content in the rinsing water
□ Drip & storage reservoir
□ Exchange for rinse water and pump out unit
□ Exhaust unit
□ Heater for tank A (cleaning)
□ HMA filter (Heavy Metal Adsober) unit for the cleaning cicuit
□ MB- / DI-cartridge for deionized (DI) and demineralized (DM) water
□ MediumWipe
®
unit for further optimization of detergent and rinsing fluid use
□ PolyPower XL configuration with XL-PolyPower pump unit
□ Remote Control (remote monitoring, mailing, etc.)
□ Status light fivefold to display the current process state
□ Traceability "Basic" (SPC data scanner, data backup in CSV file, backup via WiFi SD card via slot in the PLC)
□ XL-Power pump unit for tank A
□ X-Power pump unit for tank B
Page 4 of 6
Part number: 0905PSE32HY2-2
Fully automatic PowerSpray
®
triple hybrid system for ultra fine,
fine and maintenance cleaning of smaller quantities
01/21
PSE 300 2HY
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2021
Tank A
Cleaning
Tank B/C
Rinsing
Rinsing cycleCleaning cycle
Cleaning System
Fresh / recycled rinse water
Usable rinse water
Contaminated rinse water
Tank C
DI / DM
Water
ClosedLoop
ClosedLoop
TA
HMA-Filter
Filter
Filter
Filter
Filter
Filter
(Option)
Page 5 of 6
* Operating companies of industrial cleaning systems are responsible for proper disposal of wastewater / rinse water
and (wasted) cleaning detergent. Further information on wastewater management at www.kolb-ct.com/systems/water-
management/, consulting requests to info@kolb-ct.com
01/21
Part number: 0905PSE32HY2-2
Fully automatic PowerSpray
®
triple hybrid system for ultra fine,
fine and maintenance cleaning of smaller quantities
PSE 300 2HY
Internal rinse water processing (standard) Options* for water management
AOSelection
®
unit
separates mandatory disposable sewage water from rinse
water which can be discharged into a plublic sewage network.
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
Made in Germany
CLEANING TECHNOLOGY
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2021

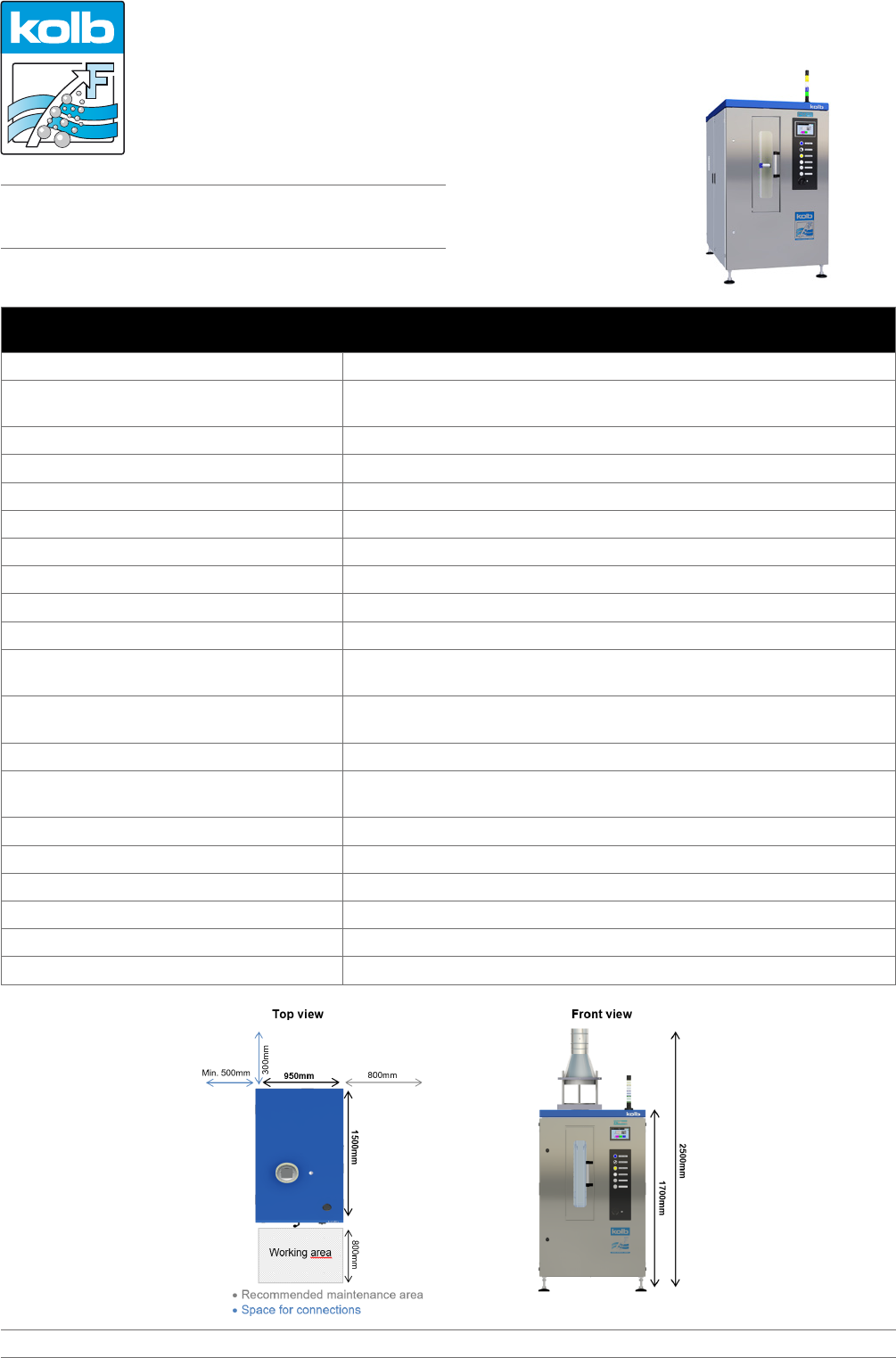

Technical data
Technology base kolb PowerSpray
®
Capacity per process cycle
Capacity: Screens, stencils, frames and (PCB) carriers up to 950 x 780 mm
(37.5" x 31")
Process chamber dimensions W 350 ▪ D 980 ▪ H 920 mm (W 13.78" ▪ 38.58" ▪ H 36.22")
Volume tank A (cleaning) 75 l
Volume tank B / C (rinsing) 75 l
Power supply 400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption 4 kW
Control system PLC (EATON)
Temperature load up to 80 °C (176 °F)
Drying control range approx. 45° - 90°C (113 and 194 °F)
Filter system
up to three stages - 1. Full flow coarse filter < 2 mm (0.08"), 2. Sediment filter
inside the tank, 3. 20“ fine filter (1 - 100µm - process dependent)
Supply connection 1 (tap water)
connection for 1/2" hose, 30µm water filter (prov. by customer: inlet water
quality < 350 μS conductance value (< 10° dH) or option descaling unit)
Supply connection 2 (DI / DM water) connection for 1/2" hose
Supply connection 3 (compressed air)
6 - 8 bar (87 - 116 psi) - 100 l / min.) for options HT version or MediumWipe
®
,
connection for 8 mm (0.31") hose
Rinse water drain connection (with integrated pump out system) connection for 1" hose
Exhaust connection Ø 160 mm (6.3"), exhaust capacity 200 - 300 m³ / h (7,063 - 10,595 ft³ / h)
Footprint 950 x 1.500 mm (37.4" x 59.05")
Operating condition room temperature 20 - 35 °C (68 - 95 °F)
Operating noise 63 dB (A)
Empty weight 440 kg (970 lbs)
Page 6 of 6
