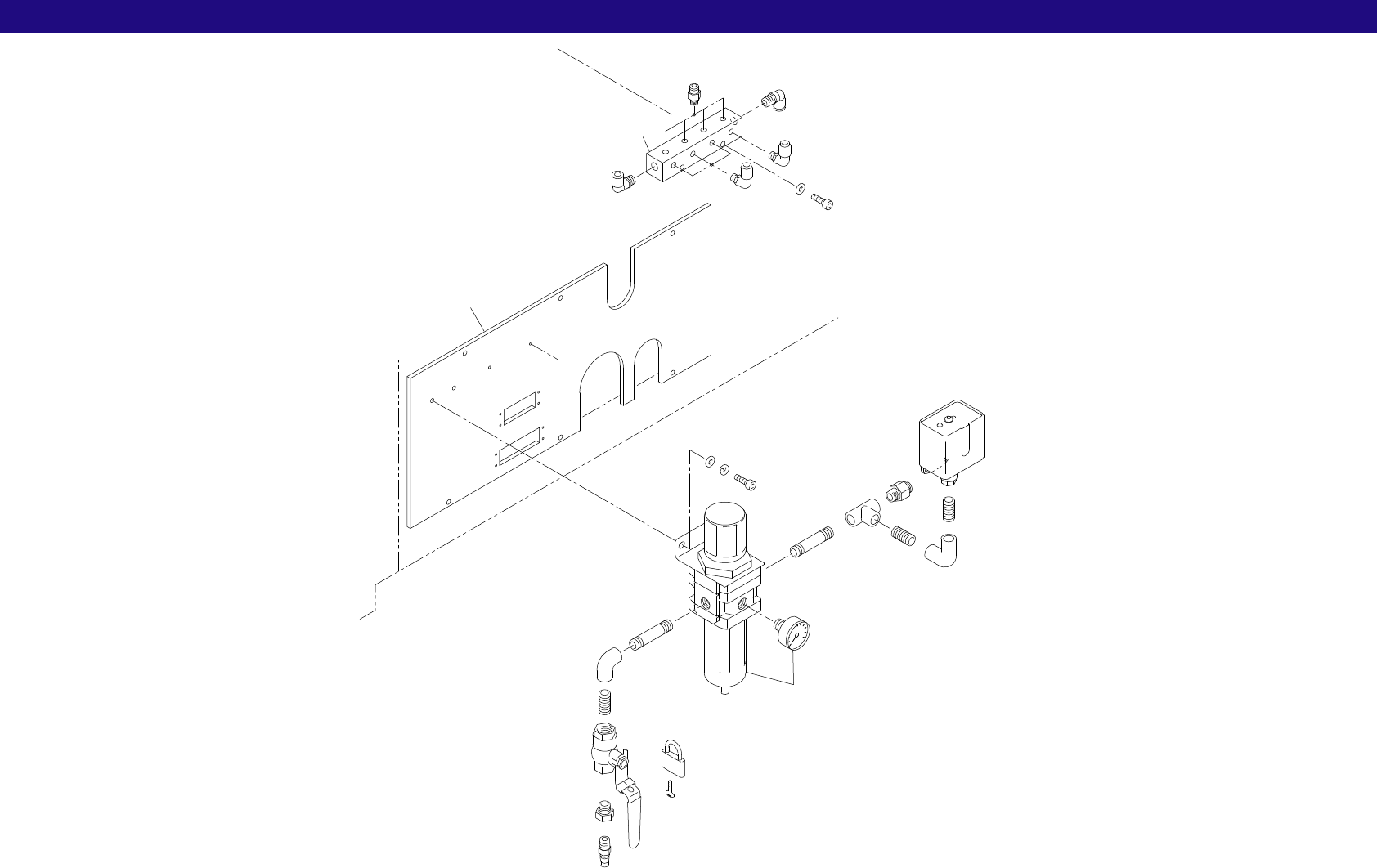

3 0 . エアー機器 A i r d e v i c e ( W P I ) CP-642E P AR TS LIST ver07 3 0 - 2 3 0 . エアー機器( W P I ) 3 0 . A i r d e v i c e ( W P I ) 番号図番 & ｺｰﾄﾞ番号個数品名規格備考 N o . D r g . N o . & C o d e N o . Q T Y D e s c r…

30.エアー機器 Air device(WPI)

CP-642E PARTS LIST ver07

30-1

30.エアー機器(WPI)

30.Air device(WPI)

30.エアー機器 Air device(WPI)

CP-642E PARTS LIST ver07

30-2

30.エアー機器(WPI)

30.Air device(WPI)

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg.No. & Code No. QTY Description Rating Remarks

1WAB0150 1 COVER ｶﾊﾞｰ

2H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞｶﾌﾟﾗ 20PM

3H1059T 1 VALVE, BALL ﾊﾞﾙﾌﾞﾎﾞｰﾙ RP-LL-3/8

4T4038A 1 TEE ﾃｨｰ 1/4.

5A4053A 1 ELBOW ｴﾙﾎﾞ 1/4.

6A4081A 1

ELBOW, DIFFERENT DIAMETERS

ｴﾙﾎﾞ異径 3/8X1/4

7H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG

8S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02L5

9S2176A 4 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄﾜﾝﾀｯﾁ TS6-01

10S2172A 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄﾜﾝﾀｯﾁ TL6-02

11S2171A 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄﾜﾝﾀｯﾁ TL6-01

12S2173A 3 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄﾜﾝﾀｯﾁ TL8-01

13S2174A 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄﾜﾝﾀｯﾁ TL8-02

14H1215A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ両口 1/4X30

15H1220A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ両口 1/4X65

16H1282A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ両口 3/8X25

17H3075A 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4

18H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X35L

19H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X15L

20W1011A WASHER, CONICAL ﾜｯｼｬ皿 M-4-L

21W1045A WASHER, FLAT ﾜｯｼｬ平 4W-6

22W1024A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 6M/M

23GXA0110 1 TERMINAL, PIPING ﾀｰﾐﾅﾙ配管

24S2152A 1 JOINT ｼﾞｮｲﾝﾄ TS8-02

25K2027R 1 KEY ｷｰ C1000-50 ･
