2 2 . 2 . 防音カバー N o i s e r e d u c t i o n c o v e r ( W A F ) CP-642E P AR TS LIST ver07 2 2 - 4 2 2 . 2 . 防音カバー( W A F ) 2 2 . 2 . N o i s e r e d u c t i o n c o v e r ( W A F ) 7 4 1 4 1 1 3 7 1 5 1 1 2 0 1 2 7 1 4 …
22.1.防音カバー Noise reduction cover(WAF)
CP-642E PARTS LIST ver07
22-3
22.1.防音カバー(WAF)
22.1.Noise reduction cover(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
136W1025A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
137W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
138W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
139W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
140W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
141W1045A
WASHER, FLAT
ﾜｯｼｬ 平
4W-6
142W1044A
WASHER, FLAT
ﾜｯｼｬ 平
4W-5
143W1043A
WASHER, FLAT
ﾜｯｼｬ 平
4W-4
146W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L
149H5340A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X15L
151H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L
153H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X20L
154H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L
156H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L
158H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L
159H5288A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L
161H5281A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X25L
162H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L
164WPZ4144 1 SPACER ｽﾍﾟｰｻ
165WPZ4190 1 PLATE ﾌﾟﾚｰﾄ
166WAF6154 1 DUCT, WIRING ﾀﾞｸﾄ 配線
167WAF6164 1 DUCT, WIRING ﾀﾞｸﾄ 配線
168K5209A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L ･
22.2.防音カバー Noise reduction cover(WAF)
CP-642E PARTS LIST ver07
22-4

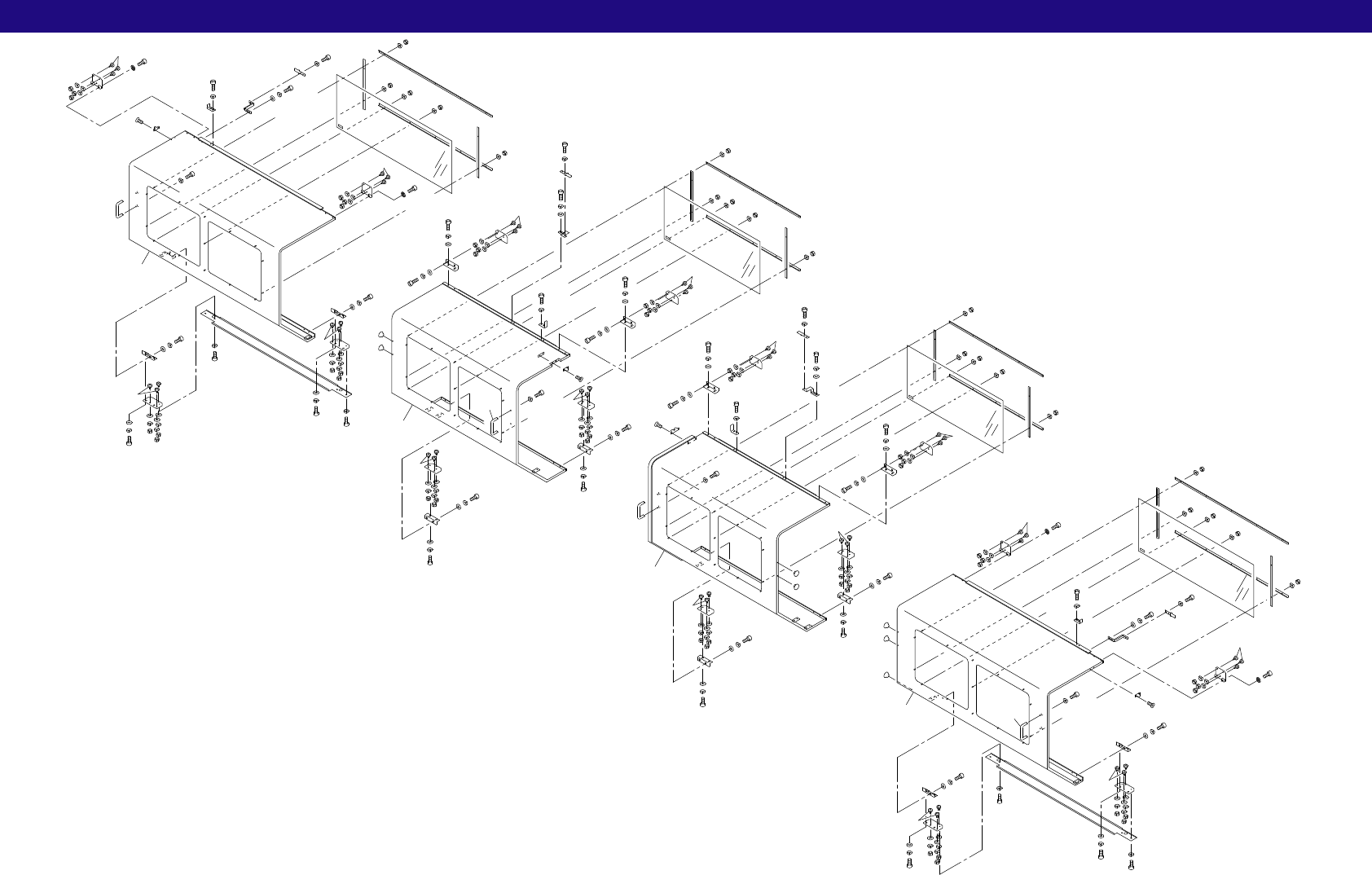

22.2.防音カバー(WAF)
22.2.Noise reduction cover(WAF)
74
141
137
151
120
127
141
137
133
19
139
160
109
132
138
156
110
133
137
124
121
145
151
6
142
138
155
123
139
160
86
137
152
33
111
45
47
46
139
135
47
46
139
135
111
120
126
141
137
133
141
137
151
73
141
137
151
32
110
138
156
141
137
151
71
125
120
137
133
141
137
151
84
137
151
34
47
48
48
47
139
135
80
142
138
155
123
139
160
132
109
141
137
133
73
141
137
151
141
137
151
110
138
156
109
132
9
84
137
151
141
137
151
71
141
137
151
125
137
133
120
34
47
48
139
135
47
48
139
135
87
142
138
155
123
139
160
31
111
74
141
137
151
120
127
141
137
133
19
139
160
138
156
29
110
124
121
137
133
151
145
6
132
142
155
123
139
160
79
137
152
109
132
145
151
121
124
137
133
45
47
139
135
46
47
46
124
137
133
120
145
151
141
137
151
141
137
151
71
125
137
133
120
151
137
141
141
137
151
71
125
120
137
133
139
160
74
141
137
151
120
127
141
137
133
120
126
141
137
133
73
141
137
151
141
137
151
141
137
133
73
141
137
151
141
137
151
139
160
120
127
141
137
133
74
141
137
151
139
135
139
135
121
121
121
120
126
126
120
121
121
121
121
121
120
121
120
120
121
121
121
121
154
138
142
154
138
142
154
138
142
154
138
142
x28.35
22.2.防音カバー Noise reduction cover(WAF)
CP-642E PARTS LIST ver07
22-5
22.2.防音カバー(WAF)
22.2.Noise reduction cover(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
6WAF6031 2 BKT BKT
9WAF6270 1 PLATE ﾌﾟﾚｰﾄ
19WAF6102 2 COVER ｶﾊﾞｰ
29WAF4013 1 DOOR 扉
31WAF4025 1 DOOR 扉
32WAF4038 1 DOOR 扉
33WAF4045 1 DOOR 扉
34AWAF8010 2 WINDOW 窓
45AWAF8020 3 WINDOW 窓
46WAF4191 6 HOLDER ﾎﾙﾀﾞ
47WAF4202 8 HOLDER ﾎﾙﾀﾞ
48WAF4232 4 HOLDER ﾎﾙﾀﾞ
71WAF4582 4 BKT BKT
73WAF4601 4 BKT BKT
74WAF4632 4 BKT BKT
79WAF4693 1 STOPPER ｽﾄｯﾊﾟ
80WAF4703 1 BKT BKT
84WAF4721 2 STOPPER ｽﾄｯﾊﾟ
86WAF4773 1 STOPPER ｽﾄｯﾊﾟ
87WAF4783 1 BKT BKT
109K5069H 4 BALL CATCH ﾎﾞｰﾙ ｷｬｯﾁ TL-91-2
110T5044T 4 HANDLE 取手 THA-211
111H3133T 15 PLUG ﾌﾟﾗｸﾞ TM-96-9
120WAF6350 16 PULLEY ﾌﾟｰﾘ
121WAF6340 32 PULLEY ﾌﾟｰﾘ
123S3197Z 4
SW, LIMIT
SW ﾘﾐｯﾄ ZCK-Y07
124WAF4561 4 BKT BKT
125WAF4571 4 BKT BKT
126WAF4611 4 BKT BKT
127WAF4623 4 BKT BKT
132K5359E
SCREW,HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿
M4X8L
133N1085A
NUT, HEX
ﾅｯﾄ 六角
M6
135N1079A
NUT, HEX
ﾅｯﾄ 六角
M4
137W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
138W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
139W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
141W1045A
WASHER, FLAT
ﾜｯｼｬ 平
4W-6
142W1044A
WASHER, FLAT
ﾜｯｼｬ 平
4W-5
145W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-6-H
151H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L
152H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X12L
154H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L
155H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
156H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L
