219.20 p.14 Spare parts list – t ype with measuring unit V Item Num- Standard version Ammonia version no. Denomination ber W M aterials Part no. Materials Part no. 31 R ound-head screw 1 Ms 8608 St 11126 32 S ealing ring…
Item
Num-
Standard version Ammonia version
no. Denomination ber W Materials Part no. Materials Part no.
219.20 p.13
4.3.2 Spare parts list – type with measuring unit V
13 Union nut 1 St 30805 St 30805
14 Cutting ring 1 St 30904 St 30904
15 Dosing screw 1 Ms 10005096 NSt 10005097
16 Connection pipe 1 St 10007639 St 10007639
17 Sealing ring 1 W LM 18688 LM 18688
18 Body, optional:
18 Housing for jet Ø 2 to jet Ø 8 1 GLM 10016694 GLM 10016694
18 Housing for jet Ø 10 1 GLM 10016695 GLM 10016695
19 Cap nut, optional:
19 Cap nut for pipe Ø 10 1 St 30802 St 30802
19 Cap nut for pipe Ø 12 1 St 30805 St 30805
19 Cap nut for pipe Ø 16 1 St 30807 St 30807
20 Compression joint, optional:
20 Compression joint for pipe Ø 10 1 St 30903 St 30903
20 Compression joint for pipe Ø 12 1 St 30904 St 30904
20 Compression joint for pipe Ø 16 1 St 30906 St 30906
21 Nozzle, optional:
21 Nozzle for pipe Ø 10 1 St 30103 St 30103
21 Nozzle for pipe Ø 12 1 St 30104 St 30104
21 Nozzle for pipe Ø 16 1 St 30106 St 30106
22 Sealing ring, at option:
22 Sealing ring for pipes Ø 10 and Ø 12 1 LM 18688 LM 18688
22 Sealing ring for pipe Ø 16 1 LM 18684 LM 18684
23 Distance piece, at option:
23 Distance piece for pipes Ø 10 and Ø 12 1 Ms 10015071 NSt 10015073
23 Distance piece for pipe Ø 16 1 Ms 10015075 NSt 10015077
23 Distance piece for G 3/4 external 1 Ms 10016726 NSt 10016728
24 Sealing ring 1 mm 1 W LM 18814 LM 18814
25 Sealing ring 1.5 mm 1 W LM 18815 LM 18815
26 Sealing ring 1 W LM 18811 LM 18811
27 Jet, at option:
27 Jet Ø 2 1 Ms 10014458 NSt 10014460
27 Jet Ø 3.7 1 Ms 10014462 NSt 10014464
27 Jet Ø 5.5 1 Ms 10014466 NSt 10014468
28 Piston guide 1 Ms 10014470 NSt 10014471
29 Sealing shim, at option:
29 Sealing shim for jet Ø 2, Ø 3.7, Ø 5.5 1 W KG 10014473 KG 10014476
29 Sealing shim for jet Ø 8 1 W KG 10014485 KG 10014487
29 Sealing shim for jet Ø 10 1 W KG 10014495 KG 10015106
30 Joint, pre-assembled, optional:
30 Joint, pre-assembled, for jet Ø 2, Ø 3.7, Ø 5.5 1 NSt/Ms 10014452 NSt 10014453
30 Joint, pre-assembled, for jet Ø 8 1 NSt/Ms 10014477 NSt 10014478
30 Joint, pre-assembled, for jet Ø 10 1 NSt/Ms 10014489 NSt 10014490
219.20 p.14
Spare parts list – type with measuring unit V
Item
Num-
Standard version Ammonia version
no. Denomination ber W Materials Part no. Materials Part no.
31 Round-head screw 1 Ms 8608 St 11126
32 Sealing ring 1 W LM 4428 LM 4428
33 Distance piece for G 3/4 external 1 Ms 10016757 NSt 10016758
50 Plug G 1/4 1 Ms 10016698 NSt 10016699
51 Sealing ring 2 W LM 18818 LM 18818
Safety valve for response pressure up to 10 bar, choose from items 52 - 58:
1 10019428 10019432
52 Safety valve body 1 LM 10014073 LM 10014073
53 Sealing shim 1 W KG 10014082 KG 10014085
54 Valve cone 1 Ms 10014078 NSt 10014079
55 Control spring Ø 1.6 1 NFSt 10016712 NFSt 10016712
56 Distance piece 1 St 10015036 St 10015036
57 Union nut 1 St 30805 St 30805
58 Cutting ring 1 St 30904 St 30904
59 Jet connecting piece, at option:
59 Jet connecting piece G 3/4 external for jet Ø 8 1 Ms 10015094 NSt 10015096
59 Jet connecting piece G 1/2 internal for jet Ø 8 1 Ms 10015090 NSt 10015093
59 Jet connecting piece G 3/4 external for jet Ø 10 1 Ms 10014906 NSt 10014908
59 Jet connecting piece G 1/2 internal for jet Ø 10 1 Ms 10015100 NSt 10015103
60 Plug M 12x1.5 1 Ms 10015022 NSt 10015025
61 Sealing ring 2 W LM 18796 LM 18796
62 Straight pin 1 NSt 17049 NSt 17049
201 Hex adjusting ring 1 NSt 10014954 NSt 10014954
202 Control spring, optional:
202 Control sprinig F4 Ø 4.5 for Wds 0.1 to 1 bar 1 FSt 10014960 FSt 10014960
202 Control sprinig F5 Ø 6 for Wds 0.2 to 2 bar 1 FSt 10014961 FSt 10014961
202 Control sprinig F6 Ø 6.5 for Wds 0.4 to 4 bar 1 FSt 10014962 FSt 10014962
202 Control sprinig F7 Ø 8 for Wds 0.7 to 7 bar 1 FSt 10014963 FSt 10014963
202 Control sprinig F8 Ø 9 for Wds 0.8 to 8 bar 1 FSt 10014964 FSt 10014964
203 Adjusting spindle, complete 1 NSt/Ms 10014949 NSt 10014948
204 Cap 1 GLM 10015006 GLM 10015006
205 Hex collar nut 1 St 13138 St 13138
206 Spring plate 1 LM 10014942 LM 10014942
207 Distance piece 1 LM 10014522 LM 10014522
208 Hex screw 6 St 10336 St 10336
209 Diaphragm disc 1 St 10014983 St 10014983
210 Diaphragm (3 mm thick) 1 W KG 10014989 KG 10018122
211 Lever eye 1 NSt 10014993 NSt 10014993
212 Grooved taper pin 1 St 6646 St 6646
213 Flat head screw 1 St 5888 St 5888
214 O ring 1 W KG 20331 KG 20331
215 Ring 1 W KG 10015450 KG 10015450
301
302
303
304
305
306
307
W 308
309
W 310
319
320
312
313
314
13, 14
15
16
17 W
18
315
316
317 W
311
19, 21 22 23 24 25 26 27 28 29 30 32 33
20 W W W W W
M
A
A
B
Y
321
310
321
219.20 p.15

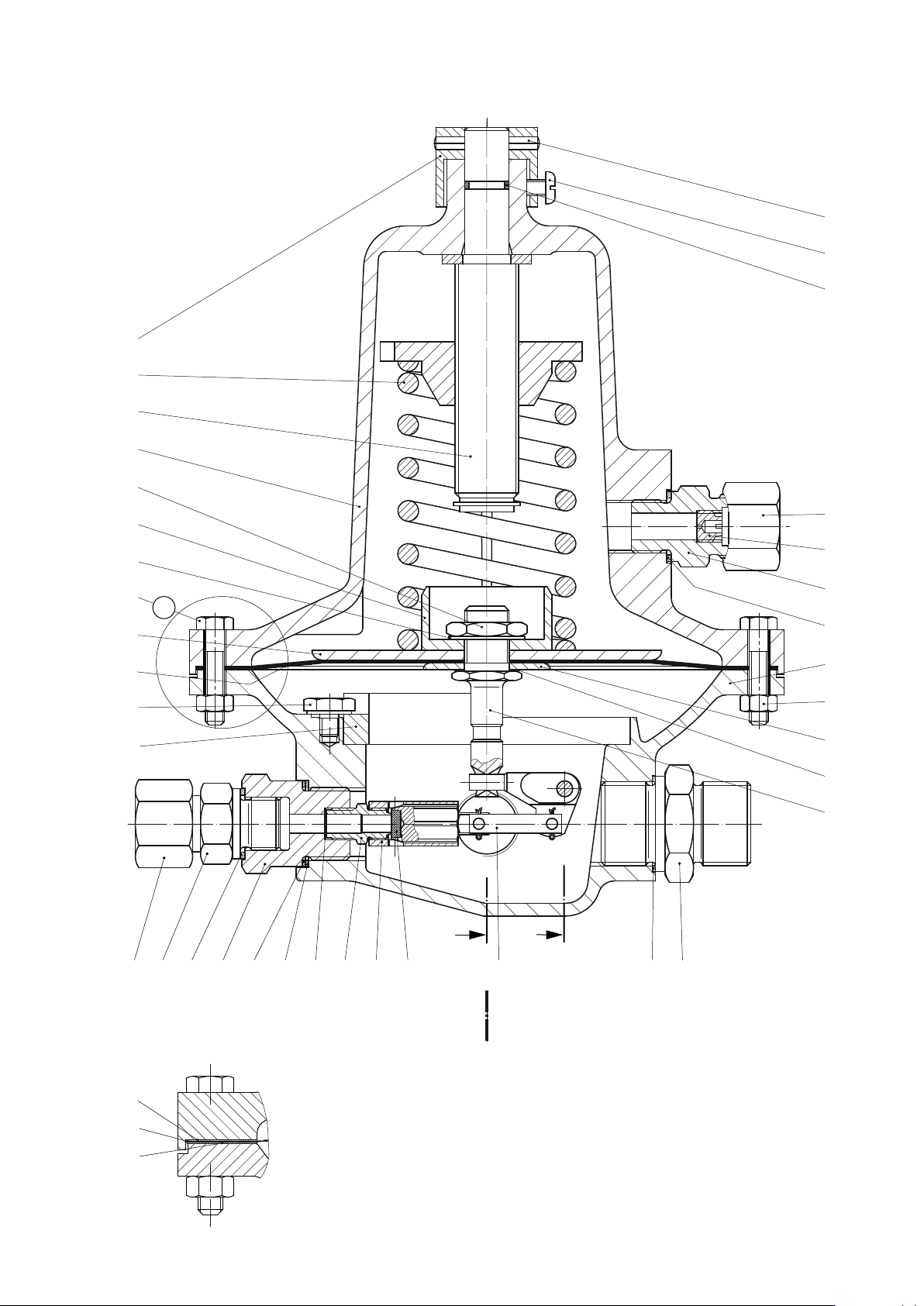

4.4.1 Type with measuring unit G
M
A
Be sure to comply with tightening torques in table on page 4.
W Parts should be held in stock for maintenance purposes.
For section views see page 6.
Type with springs F4 to F8 Type with springs F1 to F3
“Y”
(only for 0.4 mm diaphragm)
