219.20 p.17 Spare parts list – t ype with measuring unit G Item Num- Standard version A mmonia version no. Denomination ber W M aterials Part no. Materials Part no. Safety valve f or response pressure up t o 5 bar , choo…
Item
Num-
Standard version Ammonia version
no. Denomination ber W Materials Part no. Materials Part no.
219.20 p.16
4.4.2 Spare parts list – type with measuring unit G
13 Union nut 1 St 30805 St 30805
14 Cutting ring 1 St 30904 St 30904
15 Dosing screw 1 Ms 10005096 NSt 10005097
16 Connection pipe 1 St 10007639 St 10007639
17 Sealing ring 1 W LM 18688 LM 18688
18 Body, optional:
18 Housing for jet Ø 2 to Ø 8 1 GLM 10016703 GLM 10016703
18 Housing for jet Ø 10 1 GLM 10016644 GLM 10016644
19 Cap nut, optional:
19 Cap nut for pipe Ø 10 1 St 30802 St 30802
19 Cap nut for pipe Ø 12 1 St 30805 St 30805
19 Cap nut for pipe Ø 16 1 St 30807 St 30807
20 Compression joint, optional:
20 Compression joint for pipe Ø 10 1 St 30903 St 30903
20 Compression joint for pipe Ø 12 1 St 30904 St 30904
20 Compression joint for pipe Ø 16 1 St 30906 St 30906
21 Nozzle, optional:
21 Nozzle for pipe Ø 10 1 St 30102 St 30102
21 Nozzle for pipe Ø 12 1 St 30104 St 30104
21 Nozzle for pipe Ø 16 1 St 30106 St 30106
22 Sealing ring, at option:
22 Sealing ring for pipes Ø 10 and Ø 12 1 LM 18688 LM 18688
22 Sealing ring for pipe Ø 16 1 LM 18684 LM 18684
23 Distance piece, at option:
23 Distance piece for pipes Ø 10 and Ø 12 1 Ms 10015071 NSt 10015073
23 Distance piece for pipe Ø 16 1 Ms 10015075 NSt 10015077
23 Distance piece for G 3/4 external 1 Ms 10016726 NSt 10016728
24 Sealing ring 1 mm 1 W LM 18814 LM 18814
25 Sealing ring 1.5 mm 1 W LM 18815 LM 18815
26 Sealing ring 1 W LM 18811 LM 18811
27 Jet, at option:
27 Jet Ø 2 1 Ms 10014458 NSt 10014460
27 Jet Ø 3.7 1 Ms 10014462 NSt 10014464
27 Jet Ø 5.5 1 Ms 10014466 NSt 10014468
28 Piston guide 1 Ms 10014470 NSt 10014471
29 Sealing shim, at option:
29 Sealing shim for jet Ø 2, Ø 3.7, Ø 5.5 1 W KG 10014473 KG 10014476
29 Sealing shim for jet Ø 8 1 W KG 10014485 KG 10014487
29 Sealing shim for jet Ø 10 1 W KG 10014495 KG 10015106
30 Joint, pre-assembled, optional:
30 Joint, pre-assembled, for jet Ø 2, Ø 3.7, Ø 5.5 1 NSt/Ms 10014452 NSt 10014453
30 Joint, pre-assembled, for jet Ø 8 1 NSt/Ms 10014477 NSt 10014478
30 Joint, pre-assembled, for jet Ø 10 1 NSt/Ms 10014489 NSt 10014490
31 Round-head screw 1 Ms 8608 St 11126
32 Sealing ring 1 W LM 4428 LM 4428
33 Distance piece for G 3/4 external 1 Ms 10016757 NSt 10016758
50 Plug G 1/4 1 Ms 10016698 NSt 10016699
51 Sealing ring 2 W LM 18818 LM 18818
219.20 p.17
Spare parts list – type with measuring unit G
Item
Num-
Standard version Ammonia version
no. Denomination ber W Materials Part no. Materials Part no.
Safety valve for response pressure up to 5 bar, choose from items 52 - 58:
1 10019427 10019431
52 Safety valve body 1 LM 10014073 LM 10014073
53 Sealing shim 1 W KG 10014082 KG 10014085
54 Valve cone 1 Ms 10014078 NSt 10014079
55 Control spring Ø 1.2 1 NFSt 10014077 NFSt 10014077
56 Distance piece 1 St 10015036 St 10015036
57 Union nut 1 St 30805 St 30805
58 Cutting ring 1 St 30904 St 30904
59 Jet connecting piece, at option:
59 Jet connecting piece G 3/4a, jet Ø 8 1 Ms 10015094 NSt 10015096
59 Jet connecting piece G 1/2 internal, jet Ø 8 1 Ms 10015090 NSt 10015093
59 Jet connecting piece G 3/4 external for jet Ø 10 1 Ms 10014906 NSt 10014908
59 Jet connecting piece G 1/2 internal, jet Ø 10 1 Ms 10015100 NSt 10015103
60 Plug M 12x1.5 1 Ms 10015022 NSt 10015025
61 Sealing ring 2 W LM 18796 LM 18796
62 Straight pin 1 NSt 17122 NSt 17122
301 Hex adjusting ring 1 NSt 10014954 NSt 10014954
302 Control spring, optional:
302 Control spring F1 Ø 2.5 for Wds 0.008 to 0.012 bar 1 FSt 10014957 FSt 10014957
302 Control spring F2 Ø 3 for Wds 0.01 to 0.04 bar 1 FSt 10014958 FSt 10014958
302 Control spring F3 Ø 4 for Wds 0.03 to 0.1 bar 1 FSt 10014959 FSt 10014959
302 Control spring F4 Ø 4.5 for Wds 0.03 to 0.25 bar 1 FSt 10014960 FSt 10014960
302 Control spring F5 Ø 6 for Wds 0.05 to 0.5 bar 1 FSt 10014961 FSt 10014961
302 Control spring F6 Ø 6.5 for Wds 0.1 to 1.0 bar 1 FSt 10014962 FSt 10014962
302 Control spring F7 Ø 8 for Wds 0.2 to 1.8 bar 1 FSt 10014963 FSt 10014963
302 Control spring F8 Ø 9 for Wds 0.3 to 2.0 bar 1 FSt 10014964 FSt 10014964
303 Adjusting spindle, complete 1 NSt/Ms 10014949 NSt 10014948
304 Cap 1 GLM 10014955 GLM 10014955
305 Hex nut 1 St 10014696 St 10014696
306 Spring plate 1 LM 10014942 LM 10014942
307 Tooth lock washer 1 FSt 14107 FSt 14107
308 Hex screw 10 St 10336 St 10336
309 Diaphragm disc 1 St 10014820 St 10014820
310 Diaphragm, optional:
310 Diaphragm up to 0.04 bar (0.4 mm thick) 1 W KG 10014905 KG 10019405
310 Diaphragm up to 0.1 bar (1.0 mm thick) 1 W KG 10014967 KG 10018106
310 Diaphragm up to 1.0 bar (2.0 mm thick) 1 W KG 10014968 KG 10014969
310 Diaphragm up to 2.0 bar (2.5 mm thick) 1 W KG 10014970 KG 10018118
311 Lever eye 1 NSt 10016683 NSt 10016683
312 Grooved taper pin 1 St 6646 St 6646
313 Flat head screw 1 St 5888 St 5888
314 O ring 1 W KG 20331 KG 20331
315 Hex nut 10 St 3399 St 3399
316 Diaphragm disc 1 Ms 10014971 NSt 10014973
317 Sealing ring 1 W KG 20693 KG 20746
319 Retaining screw (for springs F4 to F8) 3 Ms 10016688 NSt 10016690
320 Diaphragm support ring (for springs F4 to F8) 1 LM 10016687 LM 10016687
321 Sealing ring (only for 0.4 mm diaphragm) 2 W KG 10015116 KG 10015116
301
302
303
304
305
306
307
W 308
309
W 310
318
319
320
312
313
314
13, 14
15
16
17 W
18
315
316
317 W
311
19, 21 22 23 24 25 26 27 28 29 30 32 33
20 W W W W W
M
A
A
B
X

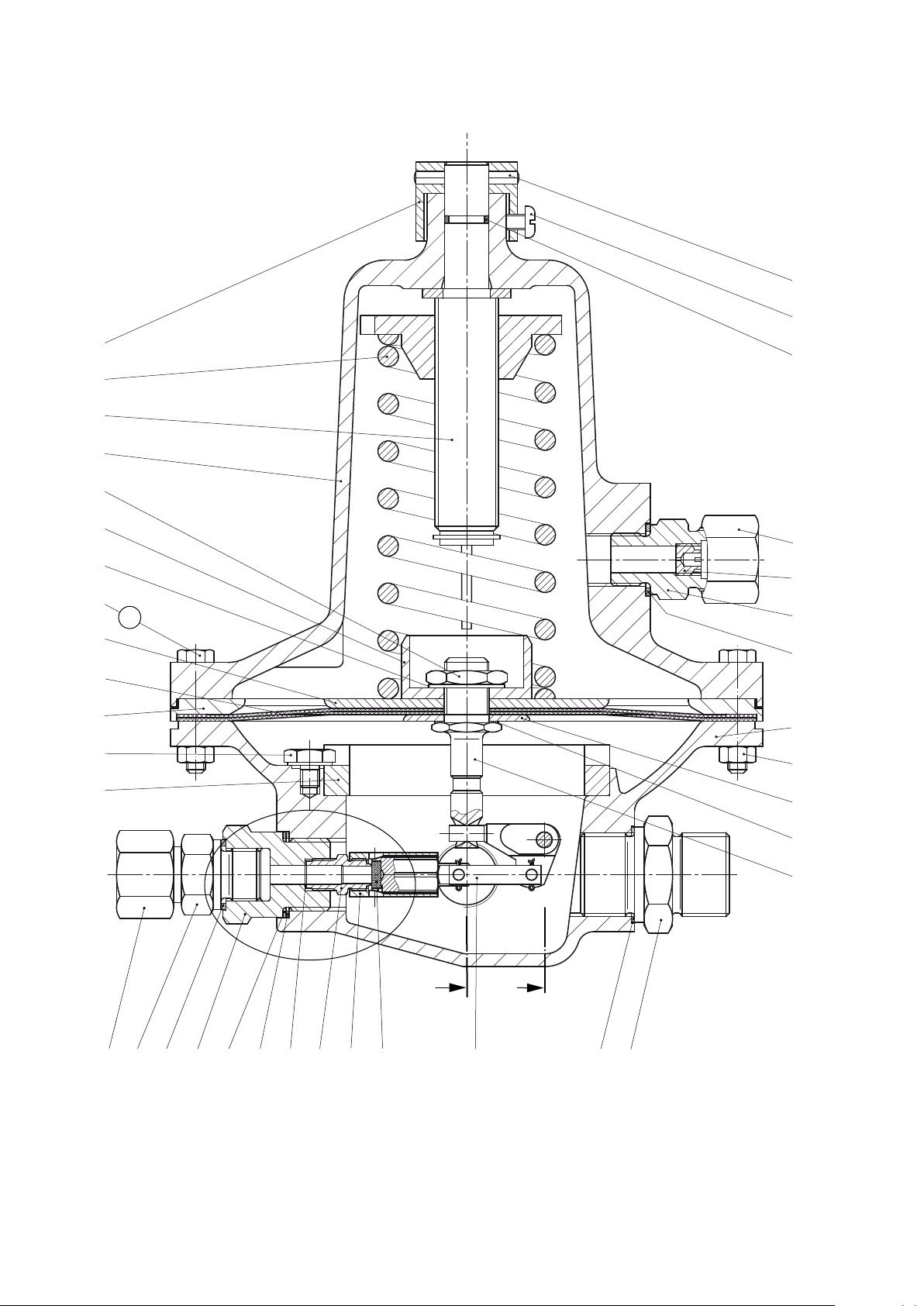

4.5.1 Spare parts drawing – type with measuring unit GS
Jet - Ø 2, Ø 3.7 and Ø 5.5
219.20 p.18
M
A
Be sure to comply with tightening torques in table on page 4.
W Parts should be held in stock for maintenance purposes.
For section views see page 6.
