INSTRUCTION MANUAL JNA High-Pr ecision Hot Air Contr ol Unit
INSTRUCTION MANUAL
JNA
High-Precision Hot Air Control Unit
2
High-Precision Hot Air
Control Unit ..................................................1 unit
Manual ...........................................................1 unit
Ref. 0031960
Power Cord ................................................ 1 unit
Ref. 0023715 (120V )
0023714 (230V)
0024092 (100V)
This manual corresponds to the following references:
JNA-1UB (120V )
JNA-2UB (230V)
JNA-9UB (100V )

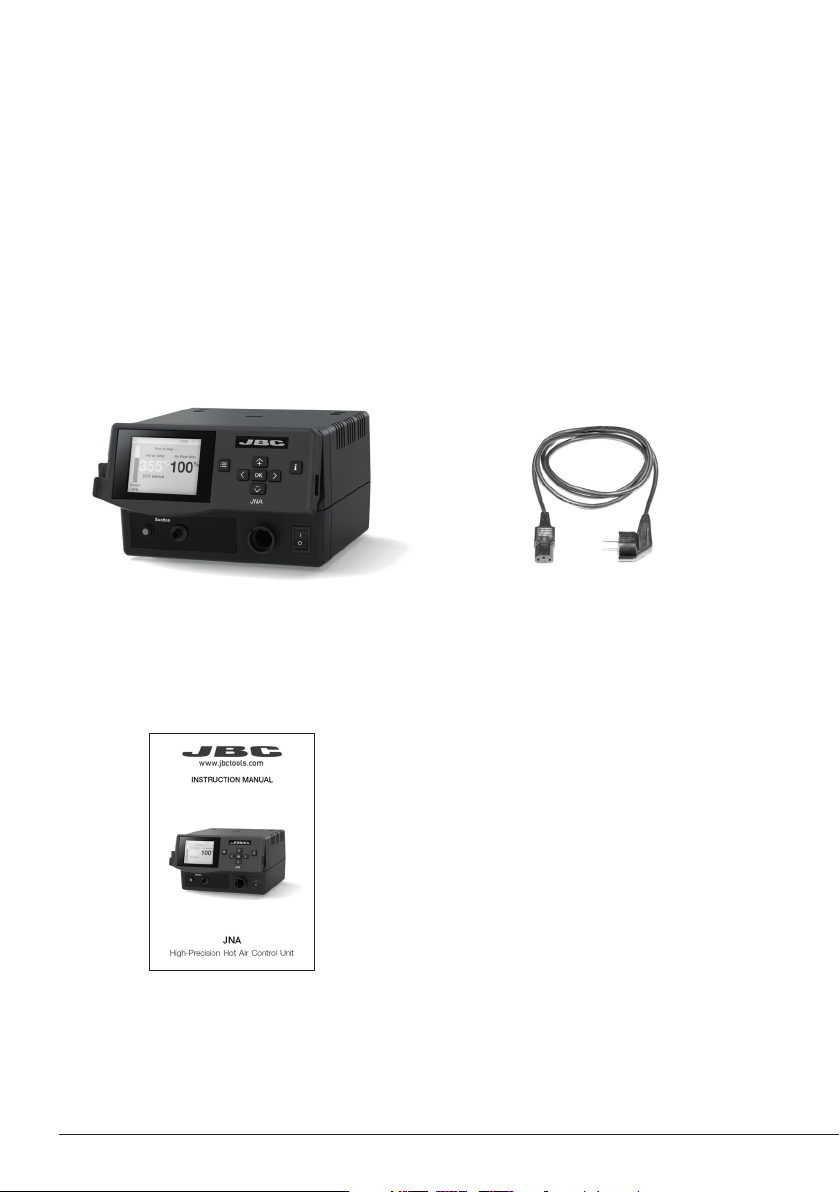

Packing List
The following items are included:
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Power Socket
Fuse
USB Connector
FAE / Robot
Connector
Pedal
Connector
Equipotential
Connector
Auxiliar
Connector
Pick and Place
Activation Switch
NH *
High-Precision
Heater Hose Set
NAS *
Stand for
NH High-Precision
Heater Hose Set
USB-A
Connector
Features and Connections
Main Switch
Display
J125 *
Cartridge
Range
T260 *
Pick & Place Handle
JNA
High-Precision Hot Air
Control Unit
* not included, sold separately
JNA
High-Precision Hot Air
Control Unit
