manual-jna-hot-air-control-unit-0031960_ID-240908_EN.pdf - 第3页
3 40 mm 50 mm 60 mm 80 mm 100 mm 130 mm 130 mm par a manuales - c olor g r is 200 mm 300 mm Power Socket Fuse USB Connec tor FAE / Rob ot Connect or Ped al Connect or Equipot ential Connect or Auxiliar Connect or Pic k a…
2
High-Precision Hot Air
Control Unit ..................................................1 unit
Manual ...........................................................1 unit
Ref. 0031960
Power Cord ................................................ 1 unit
Ref. 0023715 (120V )
0023714 (230V)
0024092 (100V)
This manual corresponds to the following references:
JNA-1UB (120V )
JNA-2UB (230V)
JNA-9UB (100V )
Packing List
The following items are included:
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Power Socket
Fuse
USB Connector
FAE / Robot
Connector
Pedal
Connector
Equipotential
Connector
Auxiliar
Connector
Pick and Place
Activation Switch
NH *
High-Precision
Heater Hose Set
NAS *
Stand for
NH High-Precision
Heater Hose Set
USB-A
Connector
Features and Connections
Main Switch
Display
J125 *
Cartridge
Range
T260 *
Pick & Place Handle
JNA
High-Precision Hot Air
Control Unit
* not included, sold separately
JNA
High-Precision Hot Air
Control Unit
17:14
Power
45%
4m 38s
400
ºC
80
%
400ºC Selected
Hot Air T emp. Air Flow Selec.
Cartridge: J325
4

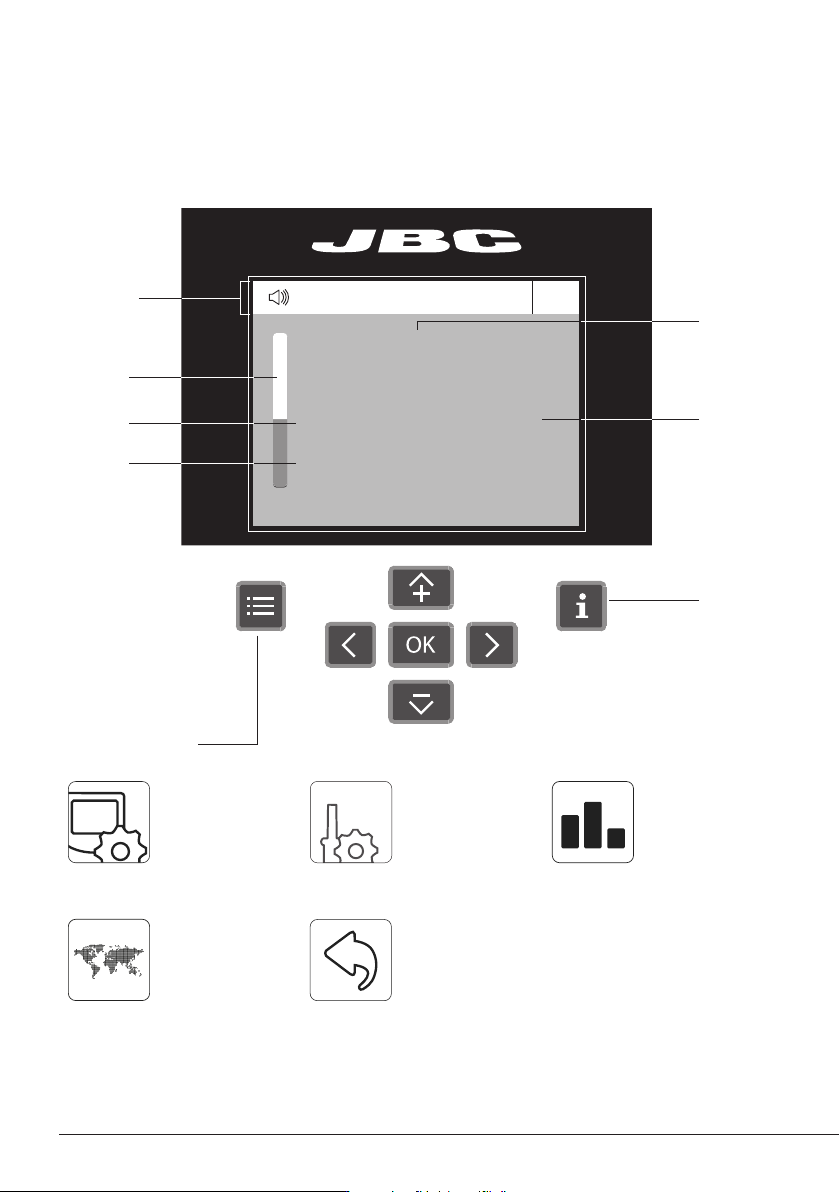

JNA Work Screen
JNA offers an intuitive user interface which provides quick access to station parameters. Default
PIN: 0105
Menu Options
Station
Information
Current
Air
Temp.
Air
Temp.
Selected
Instant Power
Supplied to
Heater
Status
Indicator
Selected
Air flow
Status Bar
Station Tools Counters
ResetLanguage
Set the station
parameters.
Set the tool
parameters, such as
cartridge recognition
(automatic or
manual).
Display the hours
worked in each cycle.
It is possible to
choose the language
from a list.
Allows you to carry
out an overall station
reset restoring all the
parameters to their
default values.
Station troubleshooting available on the product page at www.jbctools.com
Troubleshooting
Cartridge: J325
