Use only with a 250V fuse Emplo y er uniquemen t a v ec un fusible de 250V OK O K Maximum working t emp: 250ºC (482ºF) F use holder F use holder F use O K OK Point 2/ 5 Te mp 250 ºC Flow 60 % Time 2m 30s 3m 18s 240 ºC % …
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
OK
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp
Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. te mp
17:14
20
ºC
Power
45%
120ºC Selected
TC
Temp .
4m 38s
400
ºC
80
%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
NH
NH
NH
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAU
Station
Made in EU
PATENTED
STAND
PEDAL
ROBOT
AUX
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAU
Station
Made in EU
PATENTED
STAND
PEDAL
ROBOT
AUX
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
OK
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp
Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. te mp
17:14
20
ºC
Power
45%
120ºC Selected
TC
Temp .
4m 38s
400
ºC
80
%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
NH
NH
NH
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAU
Station
Made in EU
PATENTED
STAND
PEDAL
ROBOT
AUX
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAU
Station
Made in EU
PATENTED
STAND
PEDAL
ROBOT
AUX
8

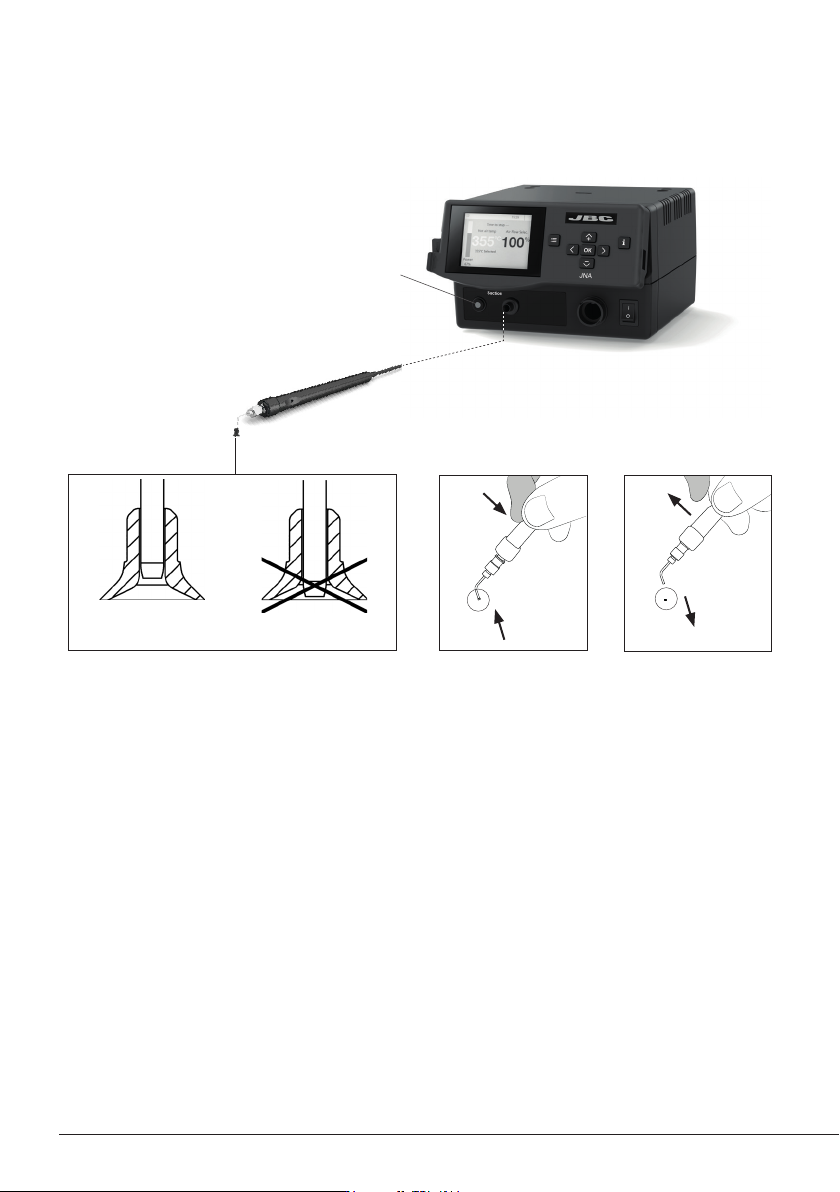

Choose the needle that best fits for the component and the suction cup if needed and start as
follows:
Operation
Press the button to
start/stop the suction
1. Suction
2. Release
Once the suction is
activated, cover the
pen hole with your
finger and lift off the
component.
Insert the needle with
the cup for a correct
suction process.
Lift your finger to
release the
component.
Make sure the needle
does not protrude
from the cup.
Maximum working temp: 250ºC / 482ºF
*not included
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
OK
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp
Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. temp
17:14
20
ºC
Power
45%
120ºC Selected
TC
Temp .
4m 38s
400
ºC
80
%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNA
Station
Made in EU
PATENTED
STAND
PEDAL
ROBOT
AUX
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNA
Station
Made in EU
PATENTED
STAND
PEDAL
ROBOT
AUX
NH
NH
NH
9
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Pedal P405*
By means of the pedal connection, NH High-Precision Heater Hose Set and the T260 Pick & Place
Tool can be activated and deactivated.
Pedal and Tool Settings
Start Mode
Select menu . Then by pressing select “TOOL” and confirm with .
Select “PEDAL FUNCTION” and confirm with OK button. Then choose between “HOT AIR” and
“SUCTION”. Confirm again with OK button.
Pedal Activation Mode
In both applications, HOT AIR and SUCTION, are 2 different pedal activation modes available.
One Touch Mode
Press the pedal once to activate the function. Press again to stop te function.
Pressed Mode
Start the function by pressing the pedal continuously and stop the function by lifting the pedal. The
function is active as long as the pedal is kept pressed.
Select “PEDAL” confirm with OK button and choose between “PRESS ONCE” and “PRESS CONT”.
Confirm again with OK button.
The pedal should be plugged in at the
rear of the station into its connector,
which ist marked with “Pedal”, to use
the Pedal functionality.
*not included
10
For rework jobs the use of the preheaters* is highly recommended. Find the preheater that best suits
your soldering needs in www.jbctools.com.
Recommended
Applying high temperatures (350 ºC - 450 ºC / 660 ºF - 840º F) with a hot air tool for a long time can
damage both, the printed circuit and the electronic components.
In addition, significant temperature differences between two points on a printed circuit board can da-
mage the printed circuit and the electronic components due to the stresses generated by the different
expansion of the material.
Preheating is a process that minimizes thermal stress and allows the soldering process to take no
longer than it should.
For most rework processes JBC recommends a preheat temperature between 90 and 130 ºC / 195
and 265 ºF and not exceed a heating rate of 4 ºC/s.
With the use of JBC preheaters, a homogeneous and controlled heating is achieved within the recom-
mended parameters.
