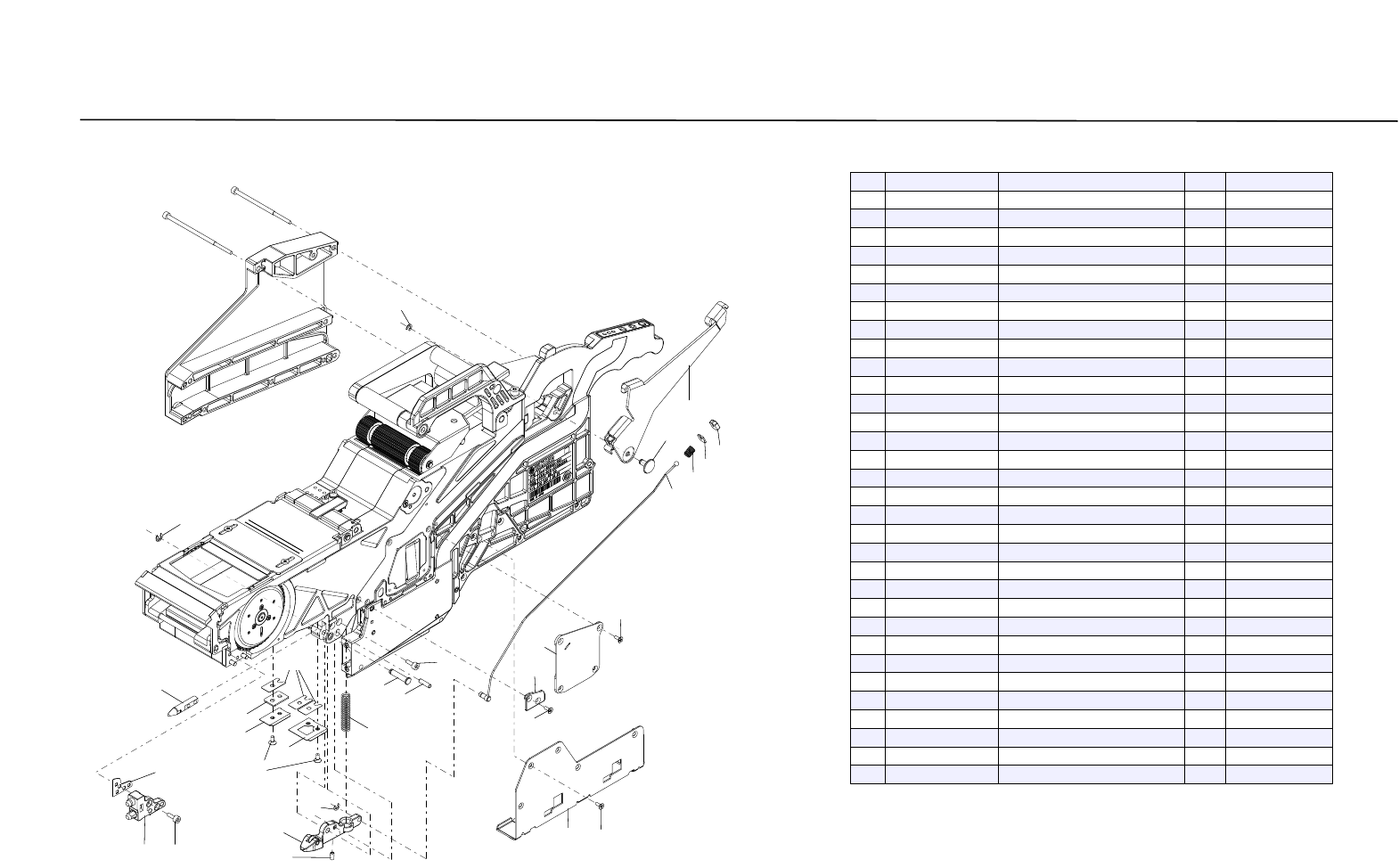

19 15 3 3 27 34 36 42 25 21 1 6 17 2 16 38 23 37 43 20 43 39 22 24 40 41 18 43 11 12 14 13 10 9 35 7 5 33 28 26 8 30 31 29 4 32 8-1 KLJ-1902 Guide / Lever 88mm 19 15 3 3 27 34 36 42 25 21 1 6 17 2 16 38 23 37 43 20 43 39…
16
31
31
32
17
22
8
5
26
7
29
14,15
6
30
24
20
18
19
21
23
4
25
17
3
27
28
17
9,10,11,12,13
1
2
7-2
KLJ-1902
Clamp / Block
72mm
<Note-1> "Q'ty" becomes 0, 1, 2, 3...
<Note-2> "Q'ty" becomes 0, 3, 6, 9...
「Q'ty」 は、0・1・2・3・・・になります。
「Q'ty」 は、0・3・6・9・・・になります。
16
31
31
32
17
22
8
5
26
7
29
14,15
6
30
24
20
18
19
21
23
4
25
17
3
27
28
17
9,10,11,12,13
1
2
NO
Parts_No.
Parts_Name
Q'ty
Remarks
1
KLJ-MC10W-00
FRONT BLOCK ASSY.
1
2
91317-03008
BOLT,HEX.SOCKET HEAD
2
3
KHJ-MC105-00
PIN,TAIL
1
4
91312-03008
BOLT,HEX.SOCKET HEAD
2
5
KHJ-MC106-00
PLATE,UNDER
1
6
KHJ-MC206-00
PLATE,UNDER
1
7
KLJ-MC80X-00
SPACER,PLATE UNDER
1
8
98707-03006
SCREW,FLAT HEAD
4
9
KHJ-MC107-00
SHIM,FRONT BLOCK 1
1
T0.01 <Note-1>
10
KHJ-MC108-00
SHIM,FRONT BLOCK 2
1
T0.05 <Note-1>
11
KHJ-MC10G-00
SHIM,FRONT BLOCK 3
1
T0.10 <Note-1>
12
KHJ-MC10U-00
SHIM,FRONT BLOCK 4
1
T0.03 <Note-1>
13
KHJ-MC10V-00
SHIM,FRONT BLOCK 5
1
T0.02 <Note-1>
14
KHJ-MC109-00
SHIM,PLATE UNDER 1
3
T0.01 <Note-2>
15
KHJ-MC10A-00
SHIM,PLATE UNDER 2
3
T0.05 <Note-2>
16
KLJ-MC2F3-00
BRKT. W,REEL HOLDER
1
17
90990-09J008
SCREW,FLAT HEAD
11
18
KHJ-MC183-00
SPACER,TENSION 1
1
19
KHJ-MC184-00
SPACER,TENSION 2
1
<Note-1>
20
KLJ-MC186-00
WIRE,UNCLAMP
1
21
KHJ-MC187-00
SPRING,TENSION
1
22
KLJ-MC18H-00
CLAMP LEVER ASSY.
1
23
KHJ-MC289-00
PIN,CLAMP
1
24
90440-01J030
CIRCLIP
1
25
KHJ-MC139-00
SHAFT,IDLE GEAR 1
1
26
KHJ-MC18A-00
SPRING,CLAMP
1
27
KLJ-MC18B-00
COVER,WIRE 1
1
28
KLJ-MC28C-01
COVER W,WIRE 2
1
29
KLJ-MC18K-00
LEVER,UNCLAMP ASSY.
1
30
KLJ-MC18L-00
PIN,LEVER UNCLAMP
1
31
90990-14J001
CIRCLIP
2
32
92A08-03306
SCREW, SET
1
19
15
3
3
27
34
36
42
25
21
1
6
17
2
16
38
23
37
43
20
43
39
22
24
40
41
18
43
11
12
14
13
10
9
35
7
5
33
28
26
8
30
31
29
4
32
8-1
KLJ-1902
Guide / Lever
88mm
19
15
3
3
27
34
36
42
25
21
1
6
17
2
16
38
23
37
43
20
43
39
22
24
40
41
18
43
11
12
14
13
10
9
35
7
5
33
28
26
8
30
31
29
4
32
<Note-1> In case of your parts order, the concerned feeder's serial number is required.
部品発注の際には、該当するフィーダーのシリアル番号が必要です。
NO
Parts_No.
Parts_Name
Q'ty
Remarks
1
KHJ-MC60J-00
PIN,PARALLEL
3
2
KHJ-MC104-00
RAIL,UNDER
1
3
KLJ-MC90C-S0
SEAL,MAIN LABEL
1
<Note-1> "QR code" added : MP50061
4
KLJ-MC941-01
TAPE GUIDE ASSY. 88
1
H025412
5
KHJ-MC244-00
LEVER,TAPE GUIDE R
1
6
KHJ-MC94A-00
SHAFT,LEVER
1
7
KLJ-MC945-00
LEVER,TAPE GUIDE F
1
8
KHJ-MC94E-00
SHAFT,LEVER
1
9
KHJ-MC146-02
SPRING,TAPE GUIDE R
1
10
KLJ-MC547-00
SPRING,TAPE GUIDE F
1
11
KHJ-MC94F-00
BASE,LEVER R
2
12
KLJ-MC54Y-00
PLATE,STOPPER
1
13
KLJ-MC1H1-00
COLLOR,STOPPER R
1
14
91312-03006
BOLT,HEX.SOCKET HEAD
2
15
KLJ-MC962-S0
PARTS,BOX COVER
1
<Note-1> MP90025
16
KLJ-MC562-00
COVER, TOP TAPE BOX
1
17
90990-01J080
BOLT,HEX.S/H
6
18
90990-01J082
BOLT,HEX.S/H
1
19
KLJ-MC963-S0
PARTS,TAIL COVER
1
<Note-1> MM60163
20
KLJ-MC963-00
COVER,TAIL
1
21
KHJ-MC975-00
PIN,TAIL COVER
1
22
KLJ-MC96V-00
P/O LEVER ASSY.
1
23
KHJ-MC96B-00
SHAFT,P/O LEVER 2
1
24
KHJ-MC26E-00
SPRING,P/O LEVER
1
25
90990-09J008
SCREW,FLAT HEAD
2
26
KLJ-MC281-01
HANDLE W
1
27
KLJ-MC98G-00
SHAFT,HANDLE SUPPORT
1
28
KHJ-MC53N-00
PIN,DOWEL
1
29
90990-01J086
BOLT,HEX.S/H
1
30
KLJ-MC88M-00
STAY,HANDLE
1
31
KLJ-MC98N-00
BAR,HANDLE
1
32
90990-01J059
BOLT,HEX.SOCKET HEAD
1
33
91317-05025
BOLT HEX.SOCKET HEAD
1
34
91312-04010
BOLT,HEX.SOCKET HEAD
2
35
91317-04012
BOLT HEX.SOCKET HEAD
1
36
99480-05014
PIN, PARALLEL
1
37
98902-03005
SCREW,BINDING HEAD
2
38
KLJ-MC5F4-00
PLATE,SUPPORT
1
39
KHJ-MC1A9-00
CONNECTOR,BOARD
1
40
90166-02JA06
SCREW,PAN HEAD
2
41
KLJ-MC1AM-00
SHIELD,CONNECTOR
1
42
92A08-03306
SCREW,SET
1
43
92A08-03303
SCREW, SET
3
31
31
32
22
24
5
8
7
26
6
14,15
17
29
30
18
19
21
20
16
4
23
25
28
17
27
3
17
9,10,11,12,13
1
2
8-2
KLJ-1902
Clamp / Block
88mm
<Note-1> "Q'ty" becomes 0, 1, 2, 3...
<Note-2> "Q'ty" becomes 0, 3, 6, 9...
「Q'ty」 は、0・1・2・3・・・になります。
「Q'ty」 は、0・3・6・9・・・になります。
31
31
32
22
24
5
8
7
26
6
14,15
17
29
30
18
19
21
20
16
4
23
25
28
17
27
3
17
9,10,11,12,13
1
2
NO
Parts_No.
Parts_Name
Q'ty
Remarks
1
KLJ-MC10W-00
FRONT BLOCK ASSY.
1
2
91317-03008
BOLT,HEX.SOCKET HEAD
2
3
KHJ-MC105-00
PIN,TAIL
1
4
91312-03008
BOLT,HEX.SOCKET HEAD
2
5
KHJ-MC106-00
PLATE,UNDER
1
6
KHJ-MC206-00
PLATE,UNDER
1
7
KLJ-MC80X-00
SPACER,PLATE UNDER
1
8
98707-03006
SCREW,FLAT HEAD
4
9
KHJ-MC107-00
SHIM,FRONT BLOCK 1
1
T0.01 <Note-1>
10
KHJ-MC108-00
SHIM,FRONT BLOCK 2
1
T0.05 <Note-1>
11
KHJ-MC10G-00
SHIM,FRONT BLOCK 3
1
T0.10 <Note-1>
12
KHJ-MC10U-00
SHIM,FRONT BLOCK 4
1
T0.03 <Note-1>
13
KHJ-MC10V-00
SHIM,FRONT BLOCK 5
1
T0.02 <Note-1>
14
KHJ-MC109-00
SHIM,PLATE UNDER 1
3
T0.01 <Note-2>
15
KHJ-MC10A-00
SHIM,PLATE UNDER 2
3
T0.05 <Note-2>
16
KLJ-MC2F3-00
BRKT. W,REEL HOLDER
1
17
90990-09J008
SCREW,FLAT HEAD
11
18
KHJ-MC183-00
SPACER,TENSION 1
1
19
KHJ-MC184-00
SPACER,TENSION 2
1
<Note-1>
20
KLJ-MC186-00
WIRE,UNCLAMP
1
21
KHJ-MC187-00
SPRING,TENSION
1
22
KLJ-MC18H-00
CLAMP LEVER ASSY.
1
23
KHJ-MC289-00
PIN,CLAMP
1
24
90440-01J030
CIRCLIP
1
25
KHJ-MC139-00
SHAFT,IDLE GEAR 1
1
26
KHJ-MC18A-00
SPRING,CLAMP
1
27
KLJ-MC18B-00
COVER,WIRE 1
1
28
KLJ-MC28C-01
COVER W,WIRE 2
1
29
KLJ-MC18K-00
LEVER,UNCLAMP ASSY.
1
30
KLJ-MC18L-00
PIN,LEVER UNCLAMP
1
31
90990-14J001
CIRCLIP
2
32
92A08-03306
SCREW, SET
1
