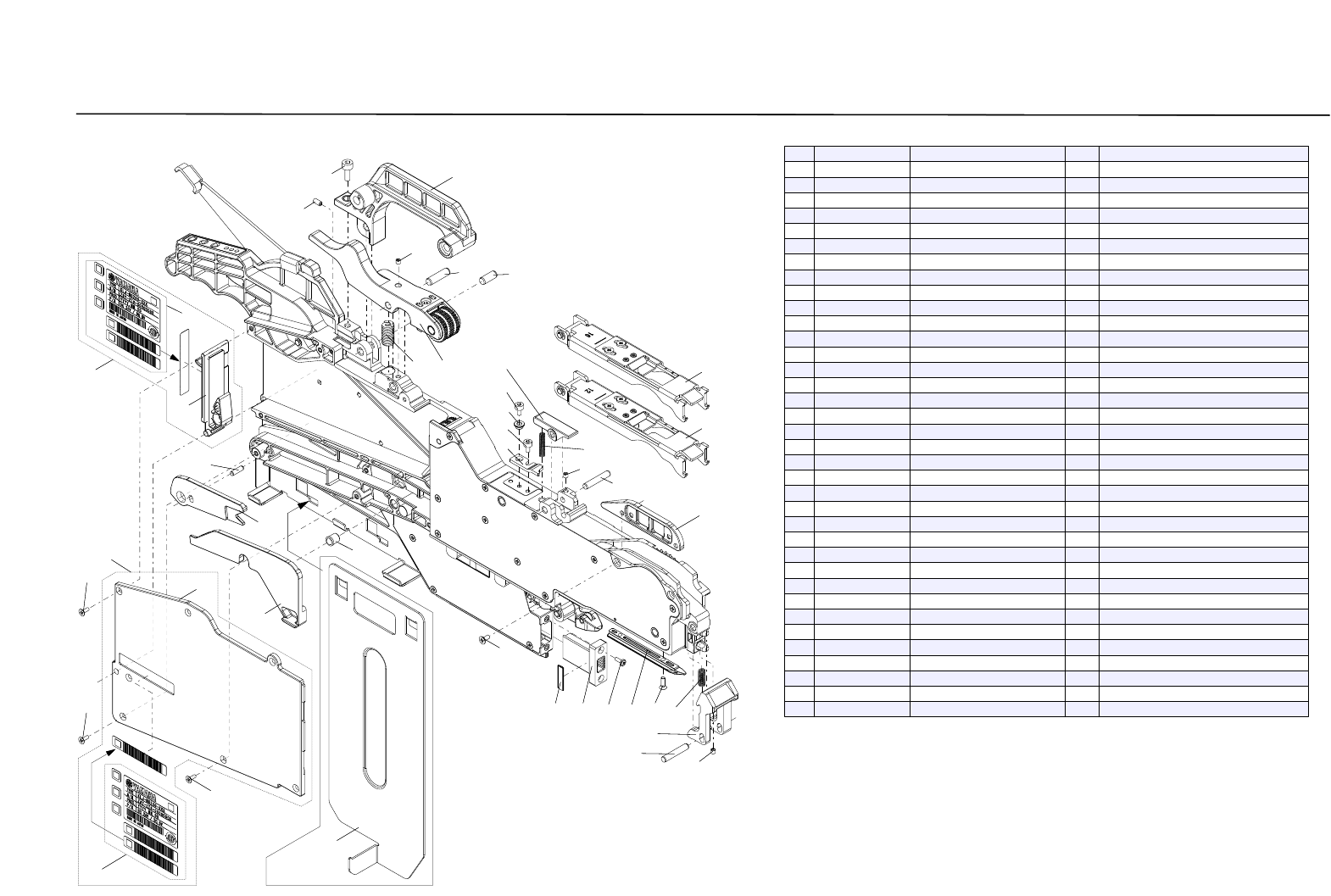

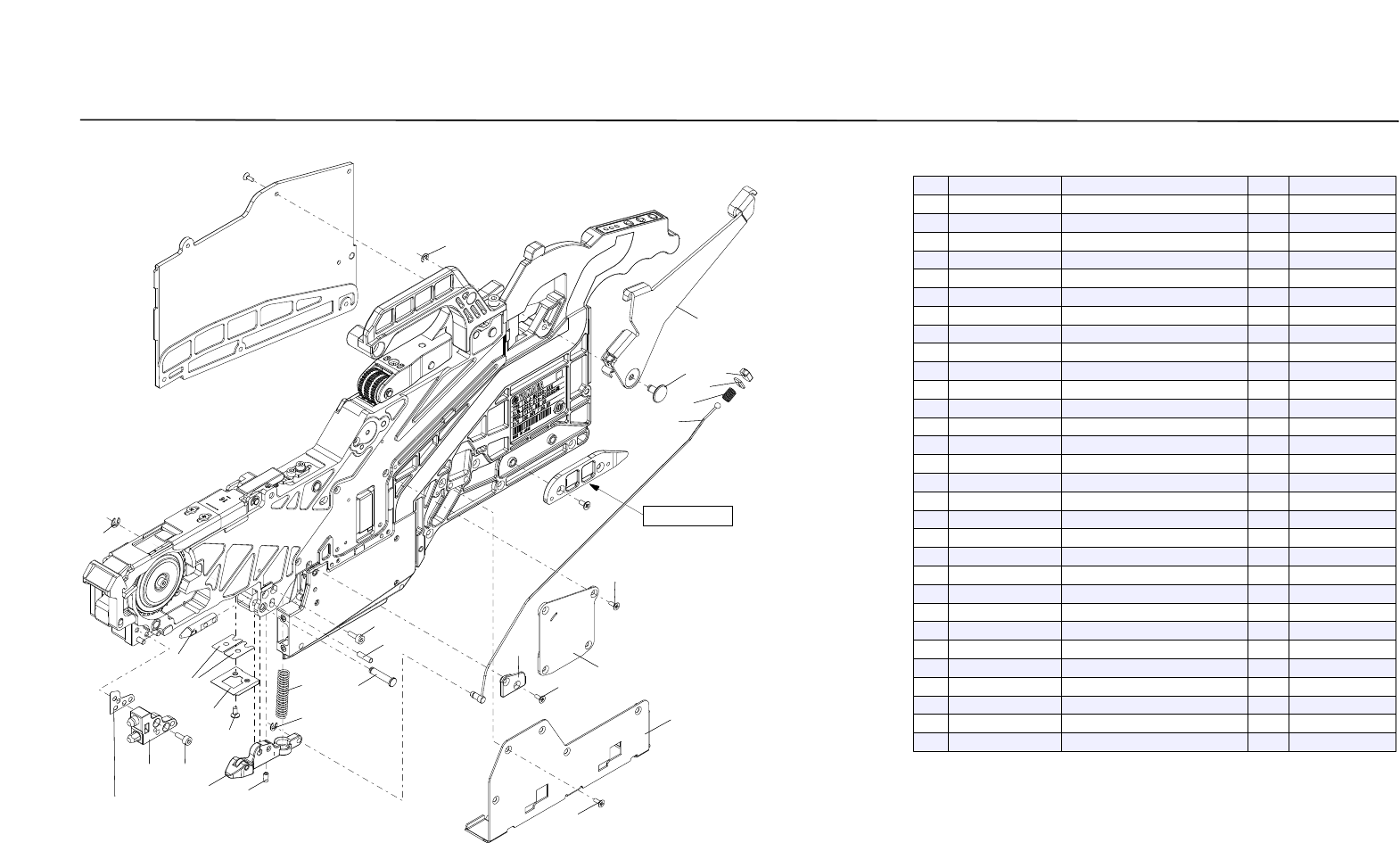

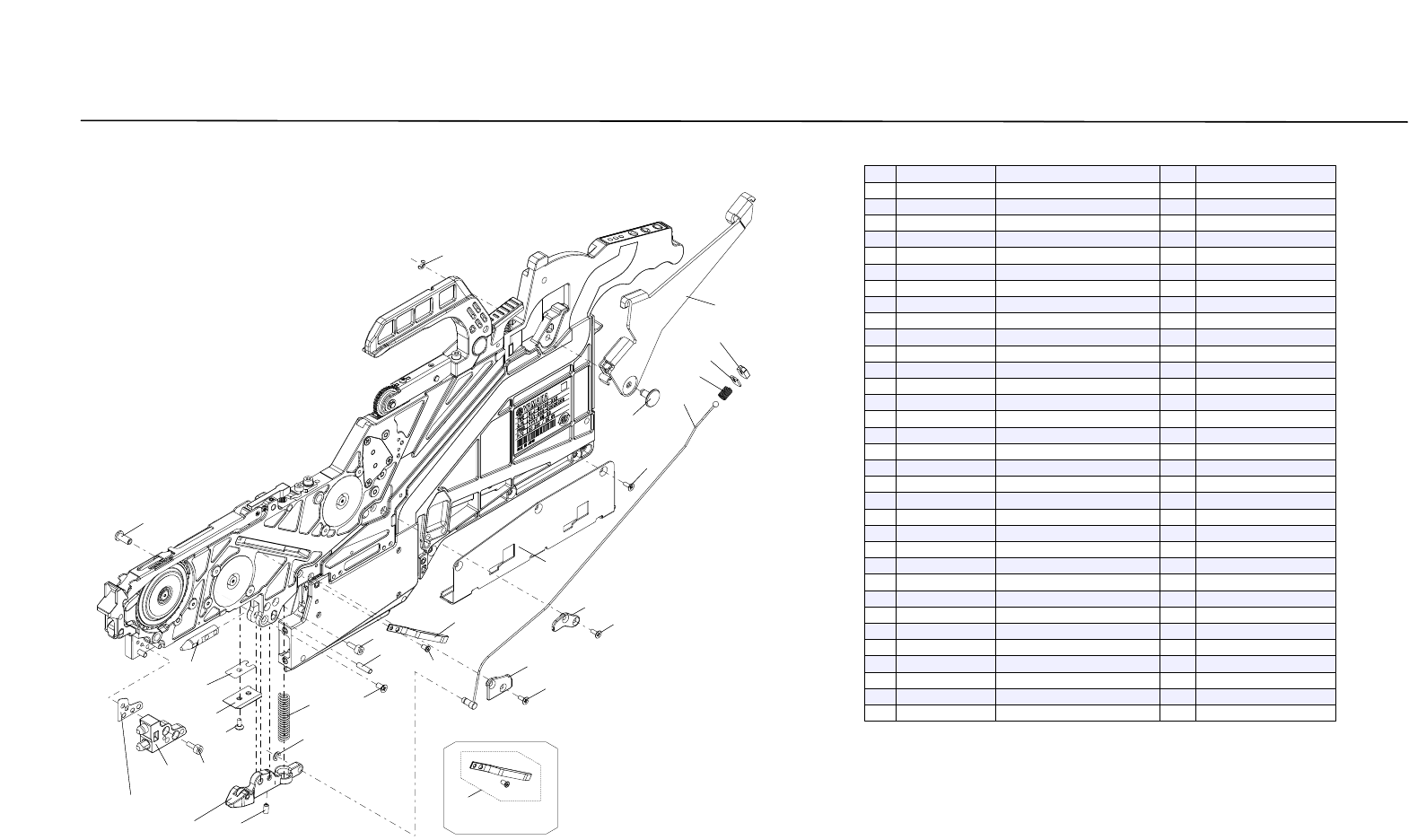

3 14 16 3 36 23 29 31 17 23 23 19 15 20 18 35 22 32 26 28 27 30 25 34 2 21 1 10 12 11 34 12 34 8 7 6 24 9 30 13 33 4 5 2-1 KLJ-1901 Guide / Lever 12mm / 16mm <Note-1> In case of your parts order , the concerned fee…

100%1 / 24
33
30
17
16
30
32
23
25
22
28
29
31
5
11,12
18
19
21
20
3
13
27
24
17
26
17
14
6,7,8,9,10
15
1
2
1-2
KLJ-1901
Clamp / Block
8mm
OPTION
33
30
17
16
30
32
23
25
22
28
29
31
5
11,12
18
19
21
20
3
13
27
24
17
26
17
14
6,7,8,9,10
15
1
2
<Note-1> "Q'ty" becomes 0,1,2,3...
「Q'ty」は、0・1・2・3・・・になります。
<Note-2> painted urethane color - Blue : after Jan. 2019, sequentially transition
塗装ウレタン色 - 青 : 2019年1月以降、順次切り替え
NO
Parts_No.
Parts_Name
Q'ty
Remarks
1
KLJ-MC10W-00
FRONT BLOCK ASSY.
1
2
90990-01J042
BOLT,HEX. S/H
2
M3*L7.5
3
KHJ-MC105-00
PIN,TAIL
1
4
91312-03008
BOLT HEX.SOCKET HEAD
2
5
KHJ-MC106-00
PLATE,UNDER
1
6
KHJ-MC107-00
SHIM,FRONT BLOCK 1
1
T0.01 <Note-1>
7
KHJ-MC108-00
SHIM,FRONT BLOCK 2
1
T0.05 <Note-1>
8
KHJ-MC10G-00
SHIM,FRONT BLOCK 3
1
T0.10 <Note-1>
9
KHJ-MC10U-00
SHIM,FRONT BLOCK 4
1
T0.03 <Note-1>
10
KHJ-MC10V-00
SHIM,FRONT BLOCK 5
1
T0.02 <Note-1>
11
KHJ-MC109-00
SHIM,PLATE UNDER 1
1
T0.01 <Note-1>
12
KHJ-MC10A-00
SHIM,PLATE UNDER 2
1
T0.05 <Note-1>
13
KHJ-MC139-00
SHAFT,IDLE GEAR 1
1
14
KLJ-MC1C1-02
SPRING PLATE ASSY.
1
shape change : MR50061
15
KHJ-MC1C3-00
SCREW
2
16
KLJ-MC1F3-00
BRKT.,REEL HOLDER
1
17
90990-09J008
SCREW,FLAT HEAD
7
18
KHJ-MC183-00
SPACER,TENSION 1
1
19
KHJ-MC184-00
SPACER,TENSION 2
1
<Note-1>
20
KLJ-MC186-00
WIRE,UNCLAMP
1
21
KHJ-MC187-00
SPRING,TENSION
1
22
KLJ-MC18H-00
CLAMP LEVER ASSY.
1
23
KHJ-MC189-01
PIN,CLAMP
1
24
KHJ-MC18J-00
SCREW,FLAT HEAD
1
25
KHJ-MC18A-00
SPRING,CLAMP
1
26
KLJ-MC18B-00
COVER,WIRE 1
1
27
KLJ-MC18C-00
COVER,WIRE 2
1
28
KLJ-MC18K-00
LEVER,UNCLAMP ASSY.
1
<Note-2> H025542
29
KLJ-MC18L-00
PIN,LEVER UNCLAMP
1
30
90990-14J001
CIRCLIP
2
31
98707-03006
SCREW,FLAT HEAD
2
32
92A08-03306
SCREW,SET
1
33
KLJ-MC1C1-B0
SPRING PLATE ASSY.
1
<OP> non-magnetic type
3
14
16
3
36
23
29
31
17
23
23
19
15
20
18
35
22
32
26
28
27
30
25
34
21
10
12
11
34
12
34
6
24
30
13
33
4
5
2-1
KLJ-1901
Guide / Lever
12mm / 16mm
<Note-1> In case of your parts order, the concerned feeder's serial number is required.
部品発注の際には、該当するフィーダーのシリアル番号が必要です。
<Note-2> for 12mm-mode
12mm運用向け
<Note-3> for 16mm-mode
16mm運用向け
<Note-4> In case of 12mm-mode, it's set here. But then 16mm-mode, see page "2-2".
12mm運用では、ここに取り付けます。 16mm運用の場合は、[2-2] ページを参照してください。
<Note-5> change mechanism parts for 12mm-mode <=> 16mm-mode
12mm運用 <=> 16mm運用 切り替え機構部品
OPTION
3
14
16
3
36
23
29
31
17
23
23
19
15
20
18
35
22
32
26
28
27
30
25
34
21
10
12
11
34
12
34
6
24
30
13
33
4
5
NO
Parts_No.
Parts_Name
Q'ty
Remarks
1
KHJ-MC104-00
RAIL,UNDER
1
2
KHJ-MC10F-00
SCREW,FLAT HEAD
2
3
KLJ-MC20C-S0
SEAL,MAIN LABEL
1
<Note-1> "QR code" added : MP50061
4
KHJ-MC24J-05
TAPE GUIDE ASSY. 12
1
<Note-2> H025412
5
KHJ-MC241-06
TAPE GUIDE ASSY. 16
1
<Note-3> H025412
6
KHJ-MC244-00
LEVER,TAPE GUIDE R
1
7
KLJ-MC245-00
LEVER F 1216
1
8
KHJ-MC146-02
SPRING,TAPE GUIDE R
1
9
KHJ-MC247-01
SPRING,TAPE GUIDE F
1
10
KLJ-MC14Y-00
PLATE,STOPPER
1
11
KLJ-MC1H1-00
COLLOR,STOPPER R
1
12
91312-03006
BOLT,HEX.SOCKET HEAD
2
13
KHJ-MC24D-00
GUIDE 12
1
<Note-4> see page "2-2".
14
KLJ-MC262-S0
PARTS,BOX COVER
1
<Note-1> MP90025
15
KLJ-MC262-00
COVER 12/24,T.T.B.
1
16
KLJ-MC263-S0
PARTS,TAIL COVER
1
<Note-1> MM60163
17
KLJ-MC263-00
COVER 1216,TAIL
1
18
KHJ-MC26L-01
GUIDE,CHANGE 1
1
19
KHJ-MC26M-01
GUIDE,CHANGE 2
1
20
KHJ-MC26N-00
PLUNGER
1
<Note-5>
21
KHJ-MC26V-00
P/O LEVER ASSY.
1
22
KHJ-MC26E-00
SPRING,P/O LEVER
1
23
90990-09J008
SCREW,FLAT HEAD
7
24
KLJ-MC281-01
HANDLE W
1
MK40111
25
91317-04010
BOLT,HEX.SOCKET HEAD
1
26
KHJ-MC1A9-00
CONNECTOR,BOARD
1
27
90166-02JA06
SCREW,PAN HEAD
2
28
KLJ-MC1AM-00
SHIELD,CONNECTOR
1
29
99480-03010
PIN,PARALLEL
1
30
99480-04022
PIN,PARALLEL
2
31
99480-05012
PIN,PARALLEL
1
32
99480-05018
PIN,PARALLEL
1
33
98707-03006
SCREW,FLAT HEAD
2
<Note-4> see page "2-2".
34
92A08-03303
SCREW, SET
3
M3*L3
35
92A08-03306
SCREW, SET
1
M3*L6
36
KLJ-MD902-00
REEL HOOK,1216
1
<OP> 15 inch reel applicable : MK90051
13
28
14
28
30
22
23
19
26
29
27
11,12
15
16
18
17
3
20
25
21
14
24
14
6,7,8,9,10
1
2
2-2
KLJ-1904
Clamp / Block
12mm / 16mm
13
28
14
28
30
22
23
19
26
29
27
11,12
15
16
18
17
3
20
25
21
14
24
14
6,7,8,9,10
1
2
see page "2-1".
<Note-1> "Q'ty" becomes 0,1,2,3...
<Note-2> "Q'ty" becomes 0,2,4,6...
「Q'ty」は、0・1・2・3・・・になります。
「Q'ty」は、0・2・4・6・・・になります。
NO
Parts_No.
Parts_Name
Q'ty
Remarks
1
KLJ-MC10W-00
FRONT BLOCK ASSY.
1
2
91317-03008
BOLT,HEX.SOCKET HEAD
2
3
KHJ-MC105-00
PIN,TAIL
1
4
91312-03008
BOLT,HEX.SOCKET HEAD
2
5
KHJ-MC206-00
PLATE,UNDER
1
6
KHJ-MC107-00
SHIM,FRONT BLOCK 1
1
T0.01 <Note-1>
7
KHJ-MC108-00
SHIM,FRONT BLOCK 2
1
T0.05 <Note-1>
8
KHJ-MC10G-00
SHIM,FRONT BLOCK 3
1
T0.10 <Note-1>
9
KHJ-MC10U-00
SHIM,FRONT BLOCK 4
1
T0.03 <Note-1>
10
KHJ-MC10V-00
SHIM,FRONT BLOCK 5
1
T0.02 <Note-1>
11
KHJ-MC109-00
SHIM,PLATE UNDER 1
2
T0.01 <Note-2>
12
KHJ-MC10A-00
SHIM,PLATE UNDER 2
2
T0.05 <Note-2>
13
KLJ-MC2F3-00
BRKT. W,REEL HOLDER
1
14
90990-09J008
SCREW,FLAT HEAD
11
15
KHJ-MC183-00
SPACER,TENSION 1
1
16
KHJ-MC184-00
SPACER,TENSION 2
1
<Note-1>
17
KLJ-MC186-00
WIRE,UNCLAMP
1
18
KHJ-MC187-00
SPRING,TENSION
1
19
KLJ-MC18H-00
CLAMP LEVER ASSY.
1
20
KHJ-MC139-00
SHAFT,IDLE GEAR 1
1
21
KHJ-MC289-00
PIN,CLAMP
1
22
90440-01J030
CIRCLIP
1
23
KHJ-MC18A-00
SPRING,CLAMP
1
24
KLJ-MC18B-00
COVER,WIRE 1
1
25
KLJ-MC28C-01
COVER W,WIRE 2
1
MK50075
26
KLJ-MC18K-00
LEVER,UNCLAMP ASSY.
1
27
KLJ-MC18L-00
PIN,LEVER UNCLAMP
1
28
90990-14J001
CIRCLIP
2
29
98707-03006
SCREW,FLAT HEAD
2
30
92A08-03306
SCREW,SET
1
